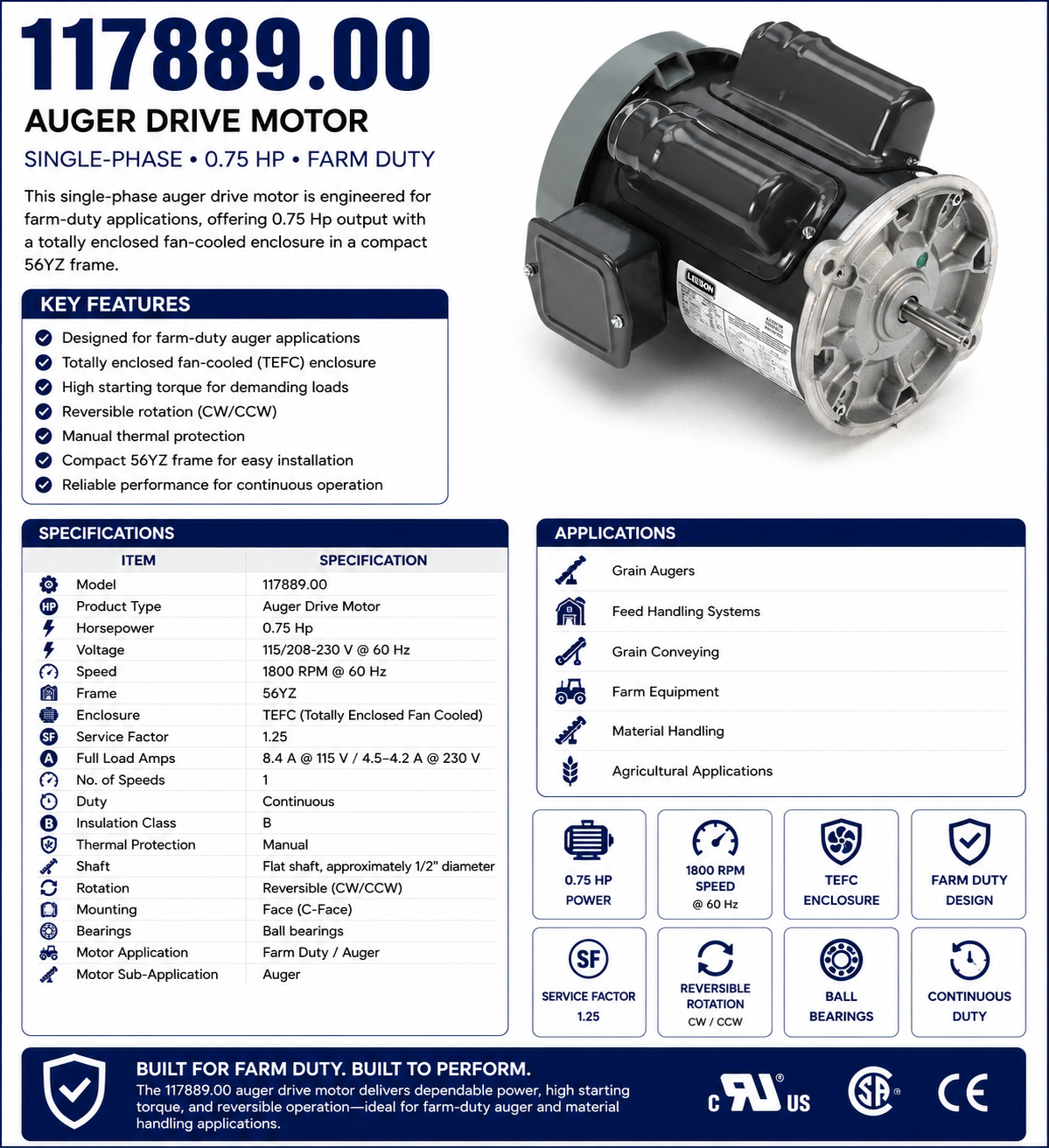

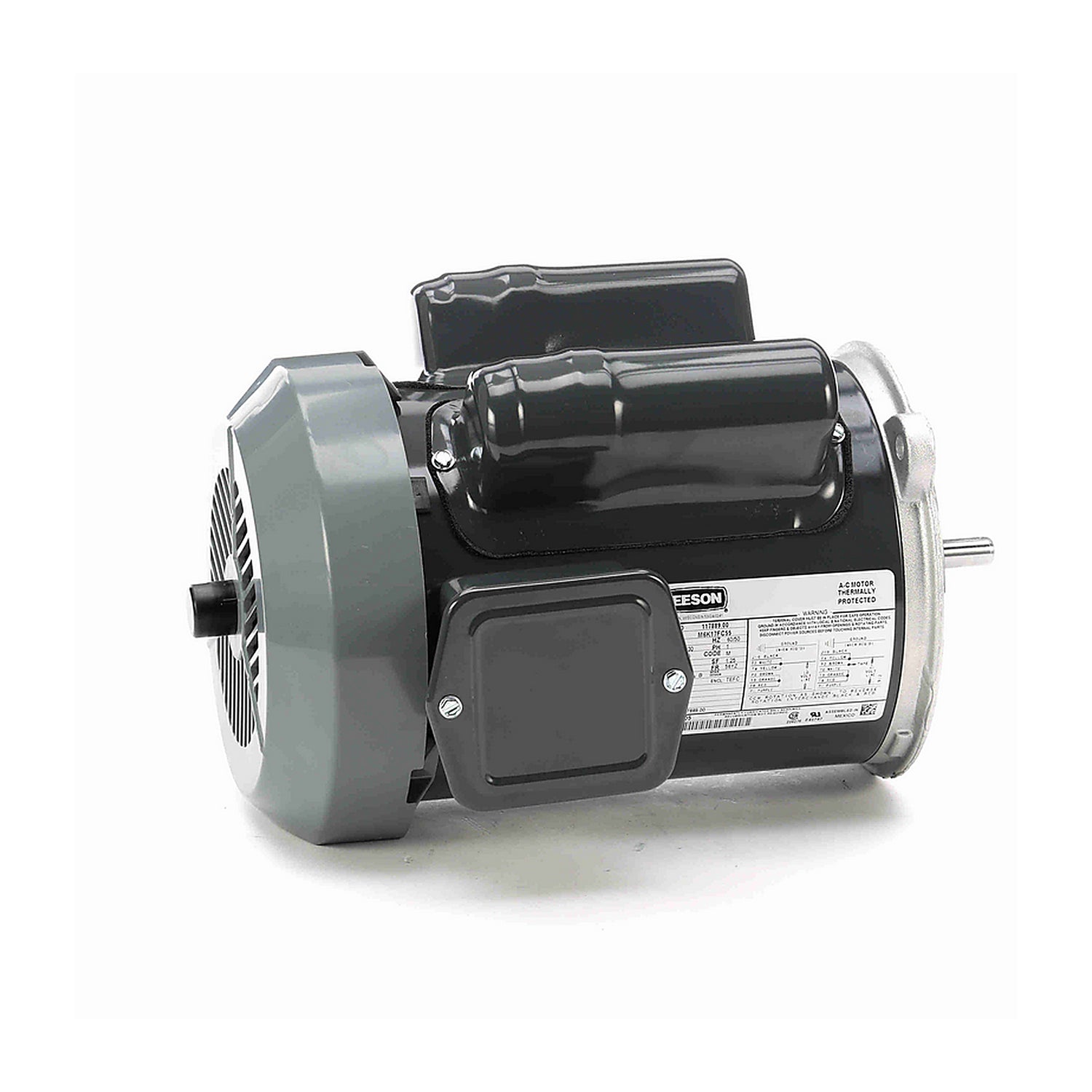

117889.00, 0.75 Hp, 1800 RPM, 115/208‑230 V, 1 Ph, 60 Hz, TEFC, Frame 56YZ

This single‑phase auger drive motor is engineered for farm‑duty applications, offering 0.75 Hp output with a totally enclosed fan‑cooled enclosure in a compact 56YZ frame.

KEY FEATURES

• Model: 117889.00

• Product Type: Auger Drive Motor

• Horsepower: 0.75 Hp

• Voltage: 115/208‑230 V @ 60 Hz

• Speed: 1800 RPM @ 60 Hz

• Frame: 56YZ

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.25

• Full Load Amps: 8.4 A @ 115 V / 4.5–4.2 A @ 230 V

• No. of Speeds: 1

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Manual

• Shaft: Flat shaft, approximately 1/2" diameter

• Rotation: Reversible (CW/CCW)

• Mounting: Face (C‑Face)

• Bearings: Ball bearings

• Motor Application: Farm Duty / Auger

• Motor Sub‑Application: Auger
