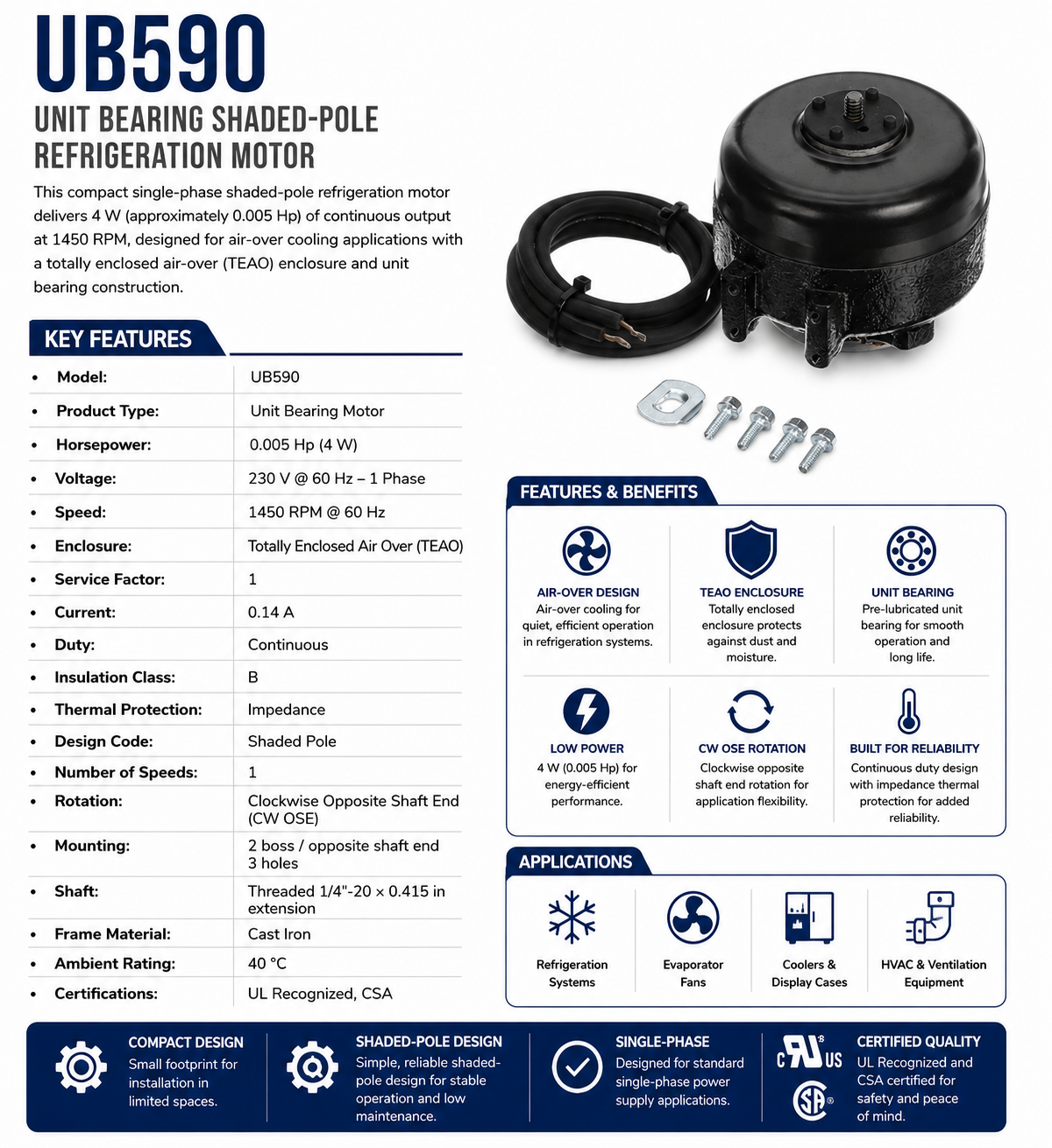

UB590, 0.005 Hp, 1450 RPM, 230 V, 1 Ph, 60 Hz, TEAO, Unit Bearing

This compact single-phase shaded‑pole refrigeration motor delivers 4 W (approximately 0.005 Hp) of continuous output at 1450 RPM, designed for air‑over cooling applications with a totally enclosed air‑over (TEAO) enclosure and unit bearing construction.

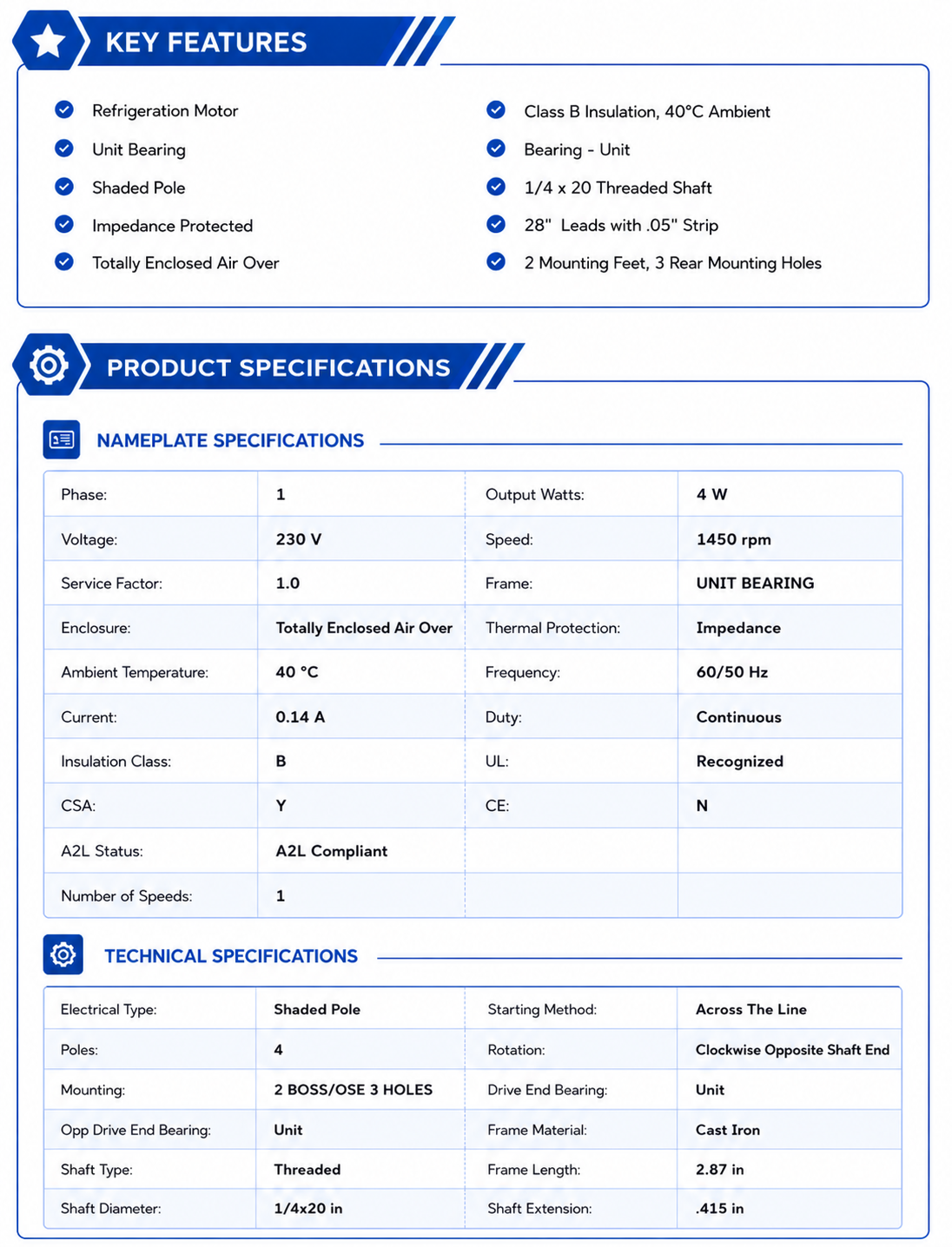

KEY FEATURES

• Model: UB590

• Product Type: Unit Bearing Motor

• Horsepower: 0.005 Hp (4 W)

• Voltage: 230 V @ 60 Hz – 1 Phase

• Speed: 1450 RPM @ 60 Hz

• Enclosure: Totally Enclosed Air Over (TEAO)

• Service Factor: 1

• Current: 0.14 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Impedance

• Design Code: Shaded Pole

• Number of Speeds: 1

• Rotation: Clockwise Opposite Shaft End (CW OSE)

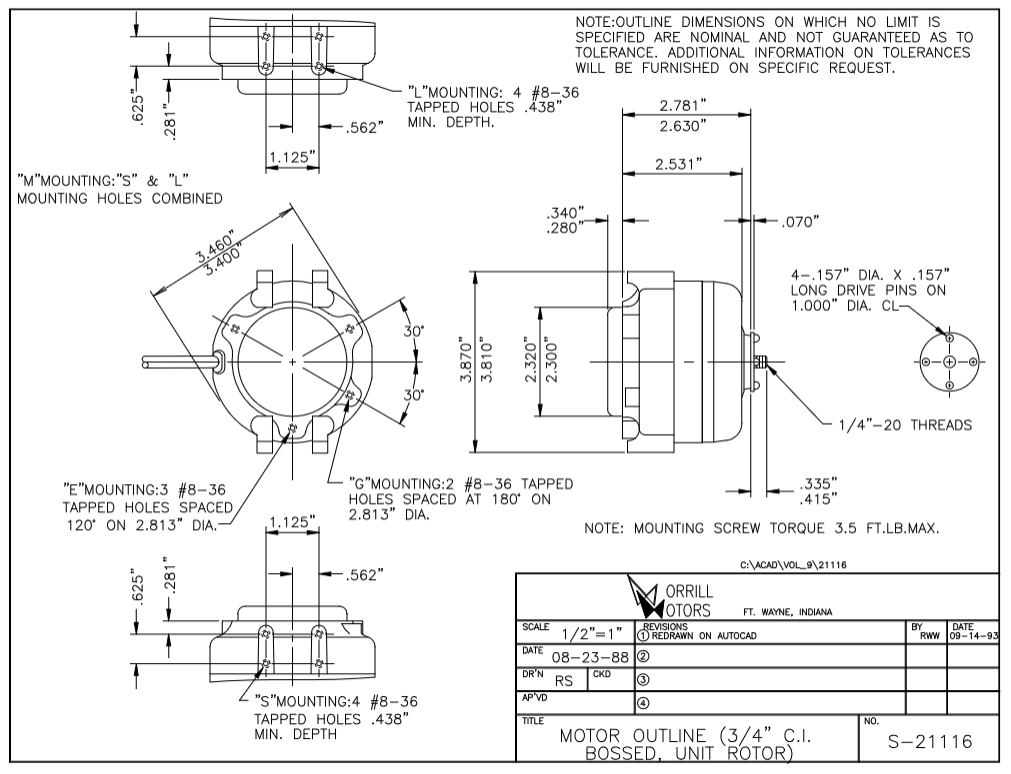

• Mounting: 2 boss / opposite shaft end 3 holes

• Shaft: Threaded 1/4"‑20 × 0.415 in extension

• Frame Material: Cast Iron

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA
