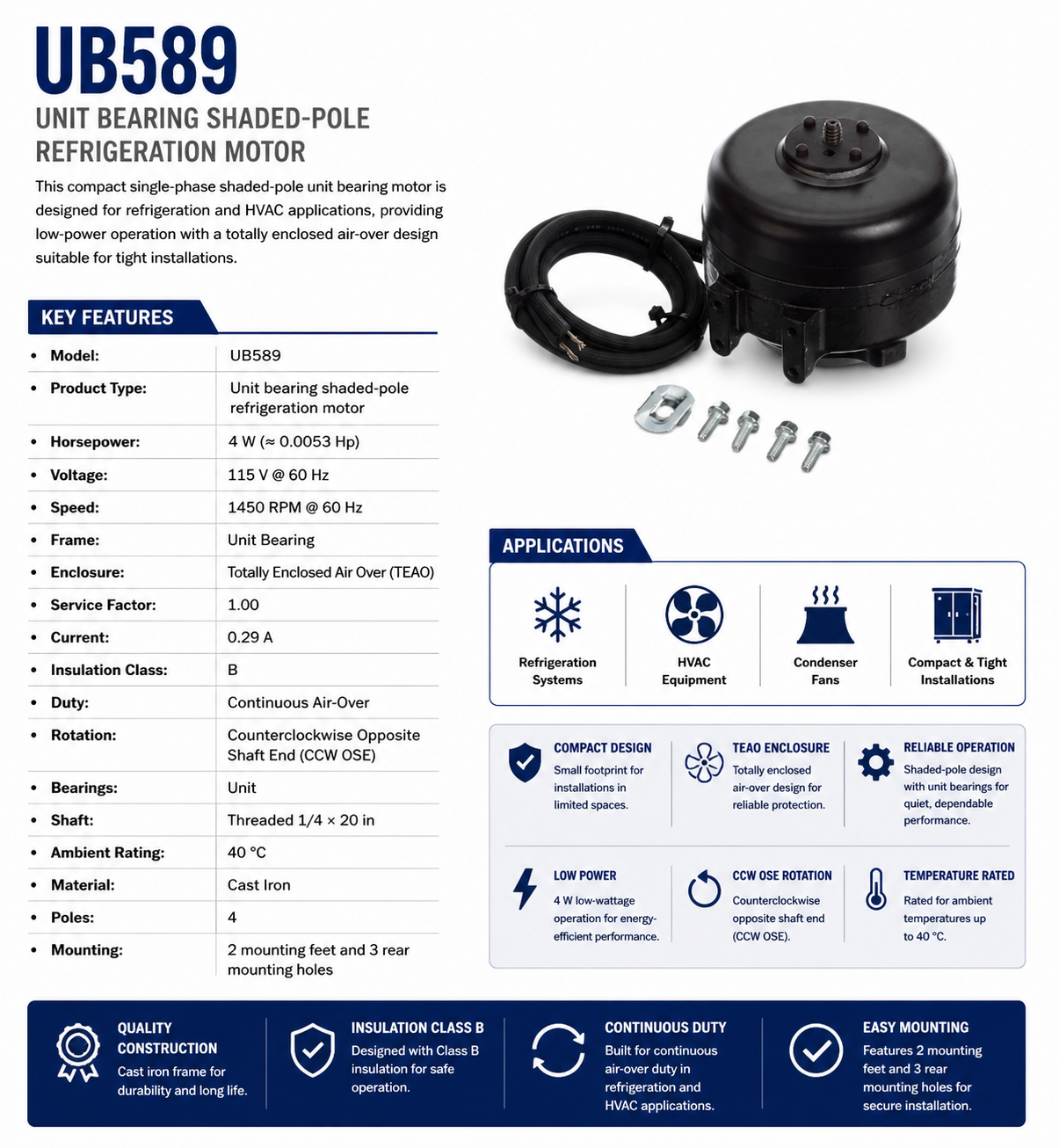

UB589, 0.0053 Hp, 1450 RPM, 115 V, 1 Ph, 60 Hz, TEAO, Unit Bearing

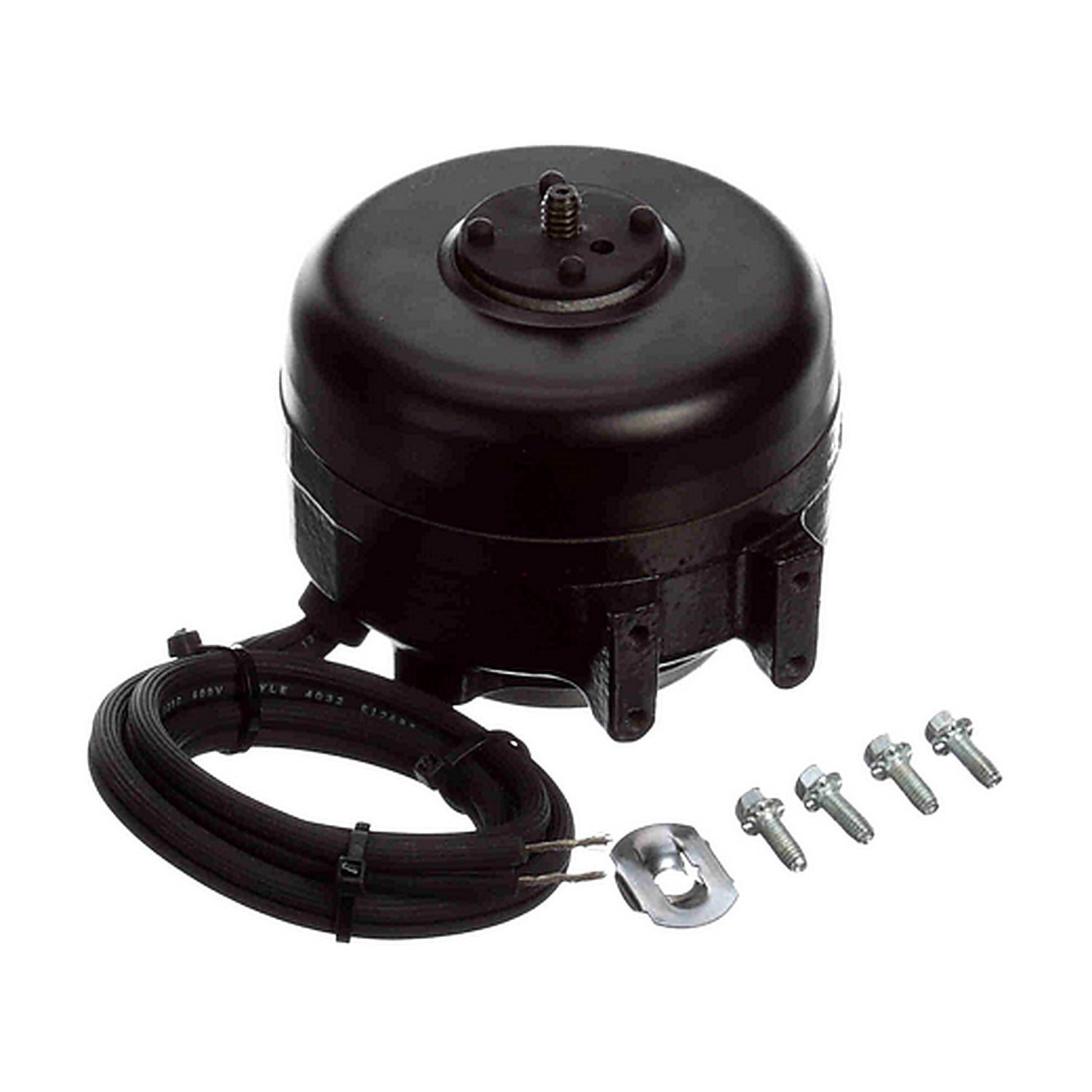

This compact single‑phase shaded‑pole unit bearing motor is designed for refrigeration and HVAC applications, providing low‑power operation with a totally enclosed air‑over design suitable for tight installations.

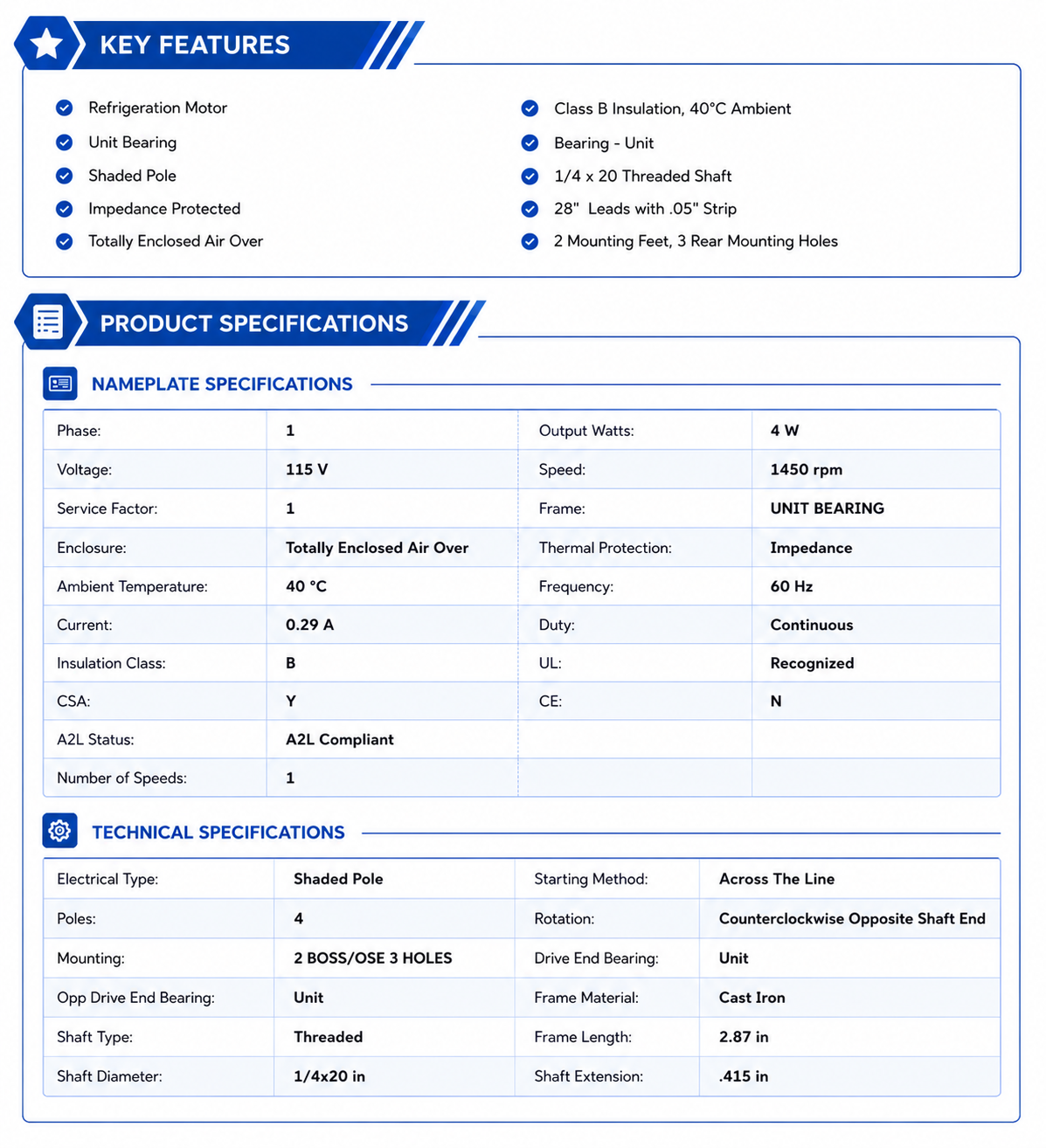

KEY FEATURES

• Model: UB589

• Product Type: Unit bearing shaded‑pole refrigeration motor

• Horsepower: 4 W (≈ 0.0053 Hp)

• Voltage: 115 V @ 60 Hz

• Speed: 1450 RPM @ 60 Hz

• Frame: Unit Bearing

• Enclosure: Totally Enclosed Air Over (TEAO)

• Service Factor: 1.00

• Current: 0.29 A

• Insulation Class: B

• Duty: Continuous Air‑Over

• Rotation: Counterclockwise Opposite Shaft End (CCW OSE)

• Bearings: Unit

• Shaft: Threaded 1/4 × 20 in

• Ambient Rating: 40 °C

• Material: Cast Iron

• Poles: 4

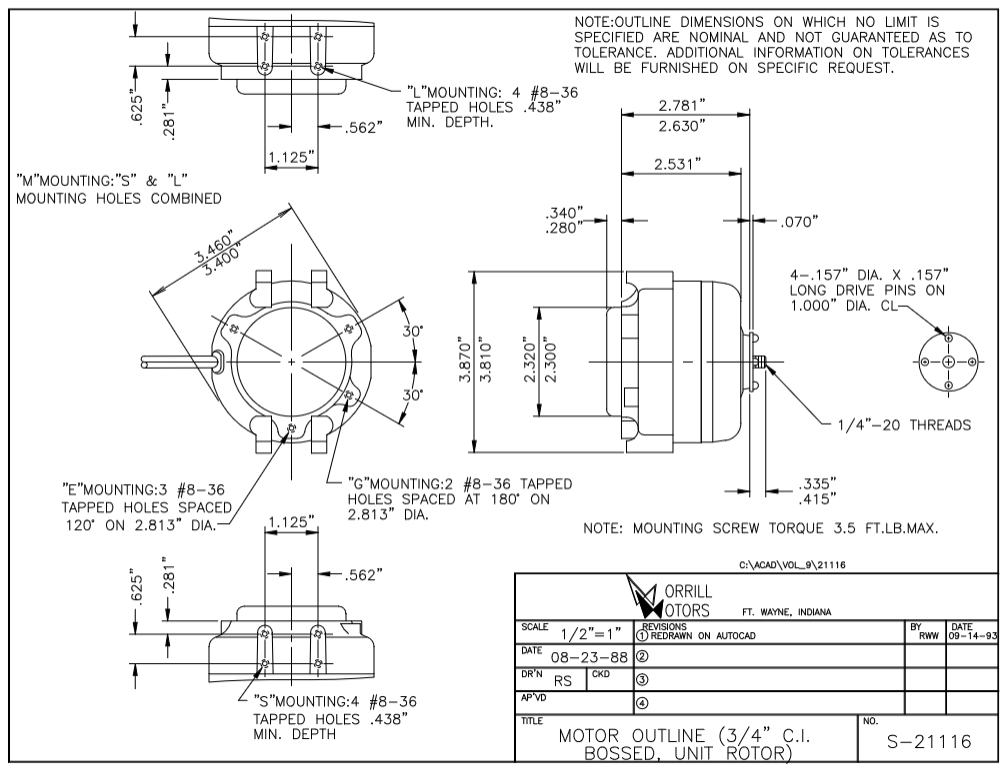

• Mounting: 2 mounting feet and 3 rear mounting holes

The motor’s compact, totally enclosed design and low‑wattage operation make it ideal for refrigeration systems where space is limited and reliability is essential.
