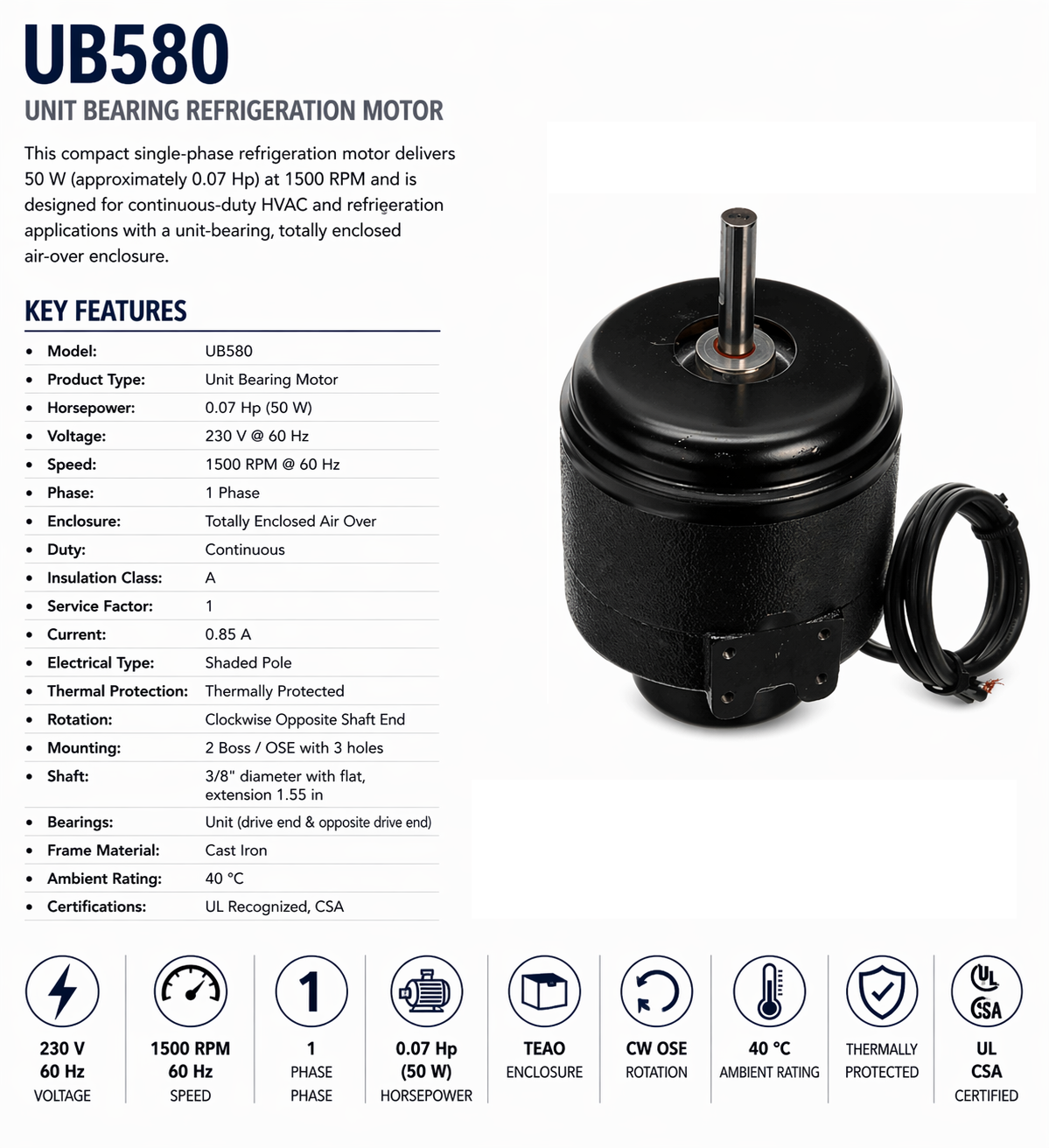

UB580, 0.07Hp (50 W), 1500 RPM, 230 V, 1 Ph, 60 Hz, Totally Enclosed Air Over, Unit Bearing

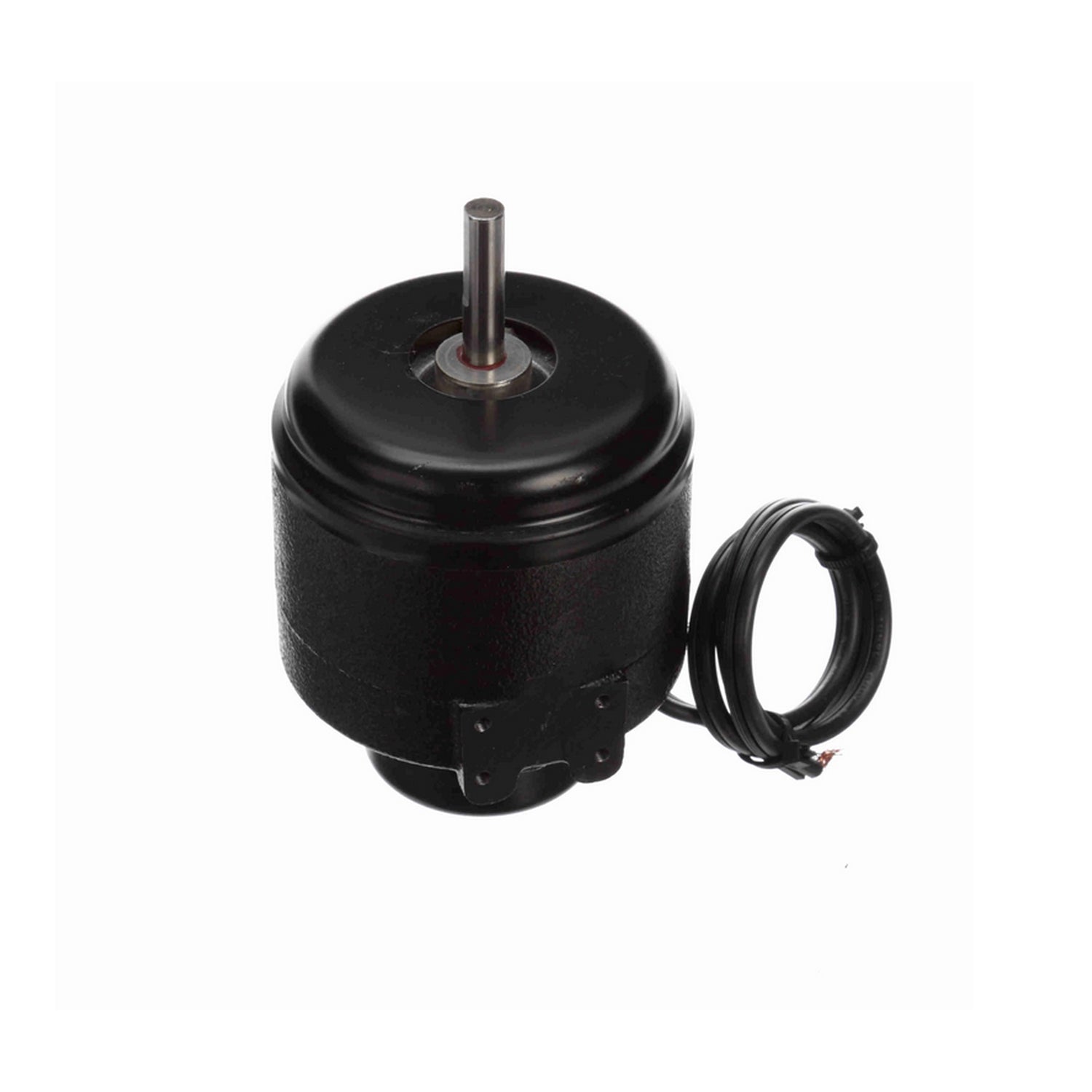

This compact single-phase refrigeration motor delivers 50 W (approximately 0.07 Hp) at 1500 RPM and is designed for continuous-duty HVAC and refrigeration applications with a unit-bearing, totally enclosed air-over enclosure.

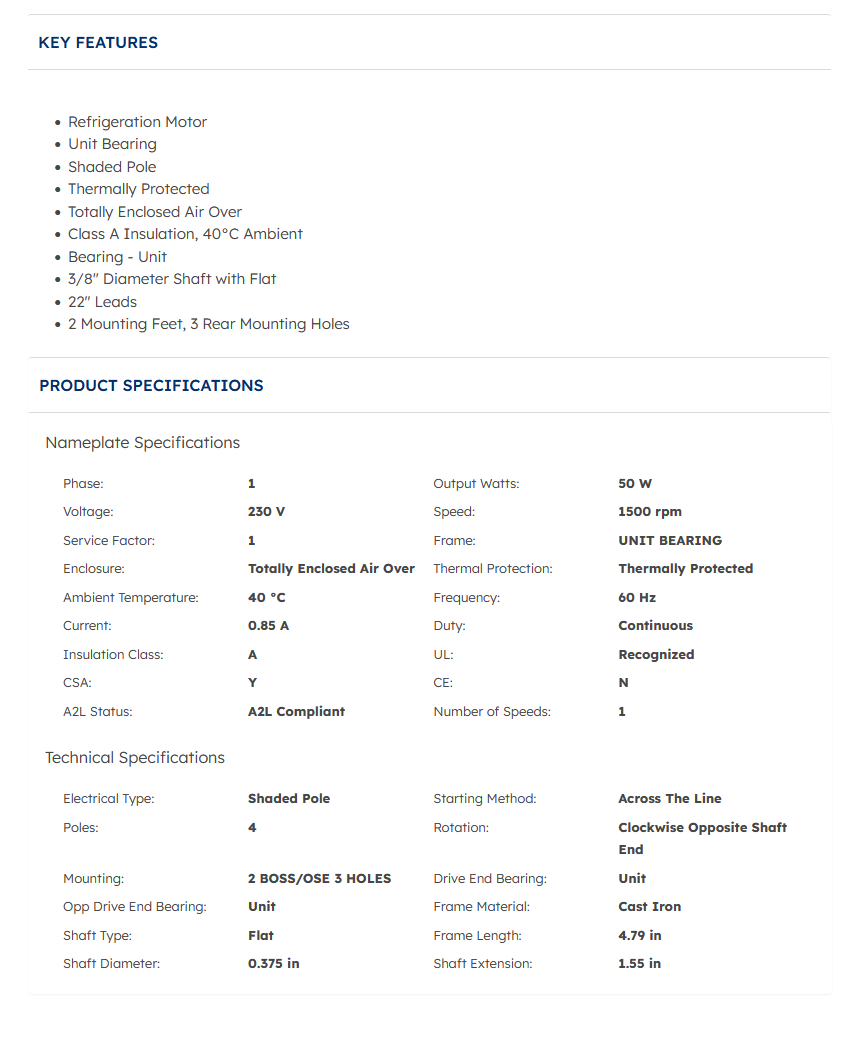

KEY FEATURES

• Model: UB580

• Product Type: Unit Bearing Motor

• Horsepower: 0.07 Hp (50 W)

• Voltage: 230 V @ 60 Hz

• Speed: 1500 RPM @ 60 Hz

• Phase: 1 Phase

• Enclosure: Totally Enclosed Air Over

• Duty: Continuous

• Insulation Class: A

• Service Factor: 1

• Current: 0.85 A

• Electrical Type: Shaded Pole

• Thermal Protection: Thermally Protected

• Rotation: Clockwise Opposite Shaft End

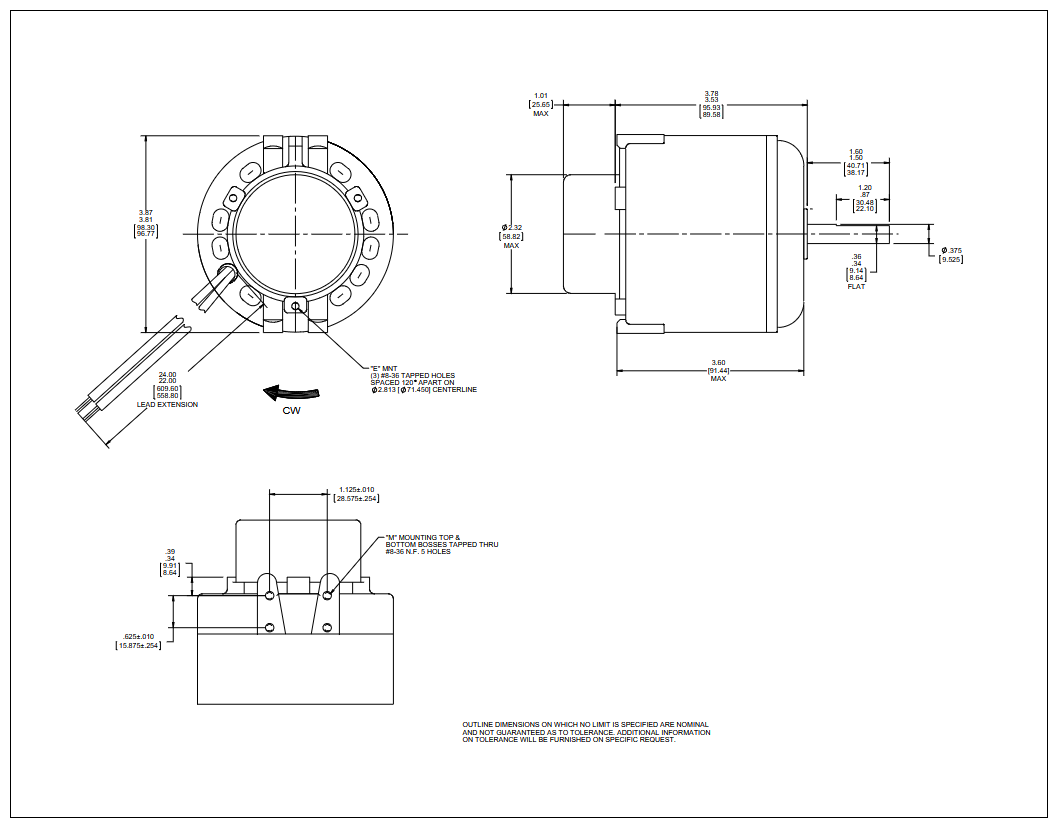

• Mounting: 2 Boss / OSE with 3 holes

• Shaft: 3/8" diameter with flat, extension 1.55 in

• Bearings: Unit (drive end & opposite drive end)

• Frame Material: Cast Iron

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA

The motor’s compact unit-bearing design and shaded-pole construction make it ideal for refrigeration and HVAC systems where reliable, continuous operation in compact spaces is required.
