UB579, 50 W, 1500 RPM, 115 V, 1 Ph, 60 Hz, Totally Enclosed Air Over, Frame UNIT BEARING,

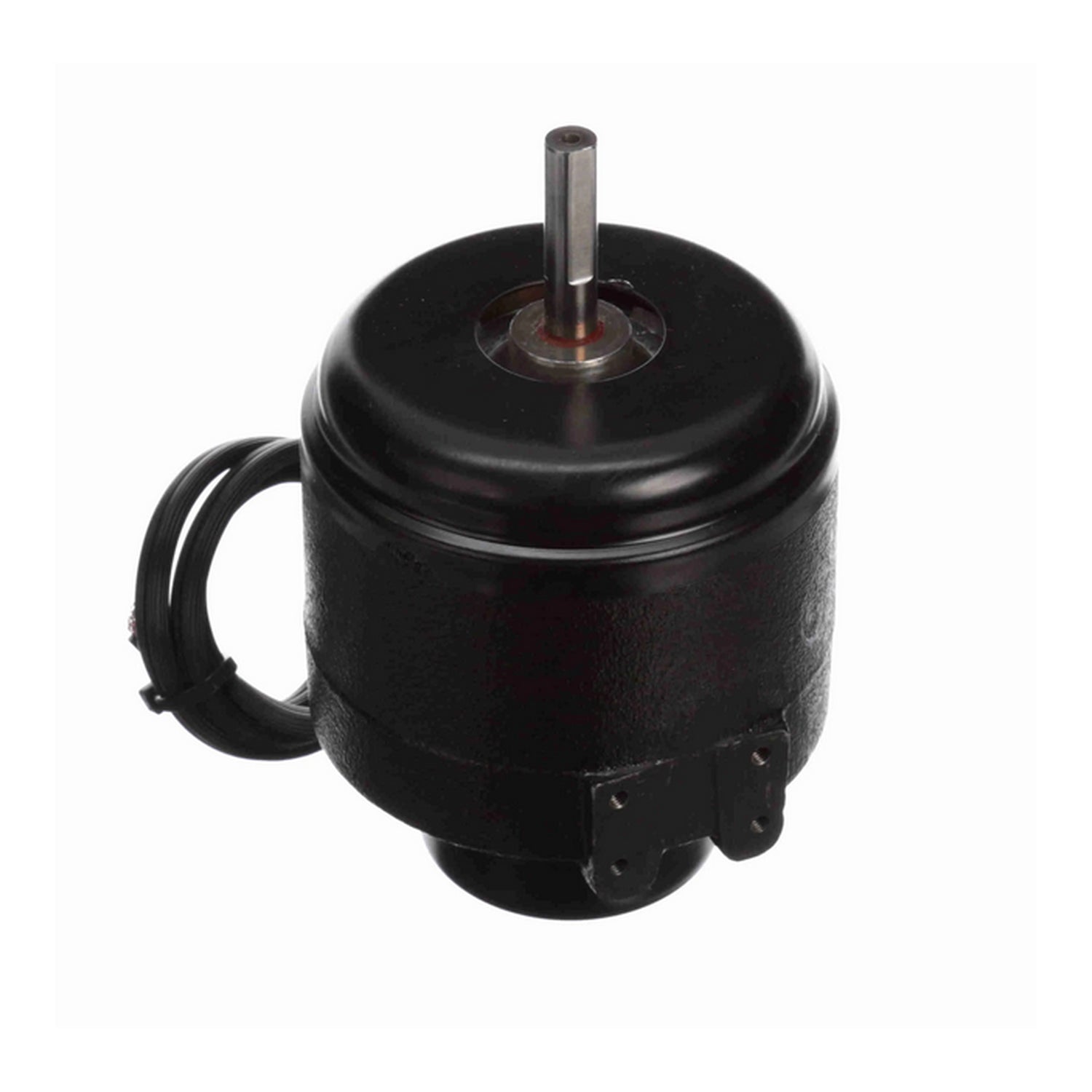

This compact single-phase shaded-pole refrigeration motor is designed for continuous-duty operation in HVAC/R applications, offering a totally enclosed air-over enclosure and unit-bearing construction for reliable, low-maintenance performance.

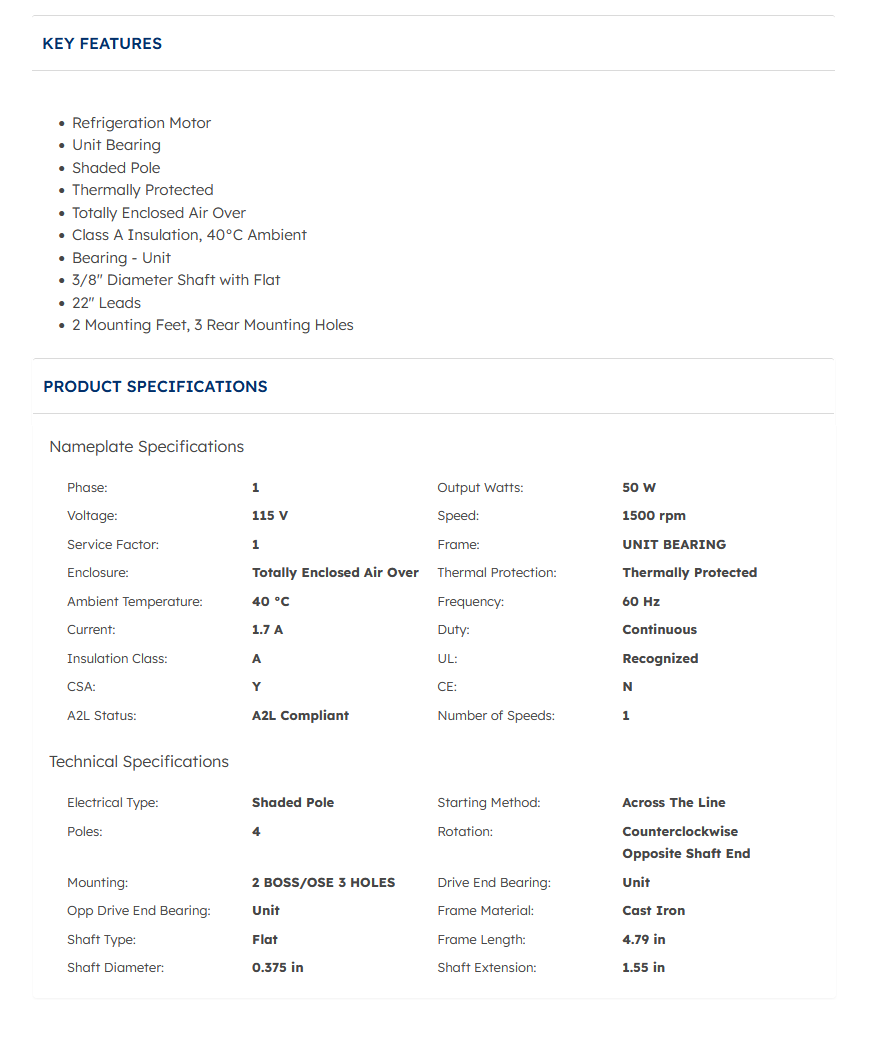

KEY FEATURES

• Model: UB579

• Product Type: Refrigeration motor

• Horsepower: 50 W

• Voltage: 115 V

• Speed: 1500 RPM

• Phase: 1 Phase

• Enclosure: Totally Enclosed Air Over (TEAO)

• Service Factor: 1

• Duty: Continuous

• Insulation Class: A

• Thermal Protection: Thermally Protected

• Poles: 4

• Rotation: Counterclockwise Opposite Shaft End (CCW OSE)

• Mounting: 2 BOSS/OSE 3 holes

• Bearings: Unit bearing (self-lubricating)

• Frame Material: Cast Iron

• Shaft Type: Flat

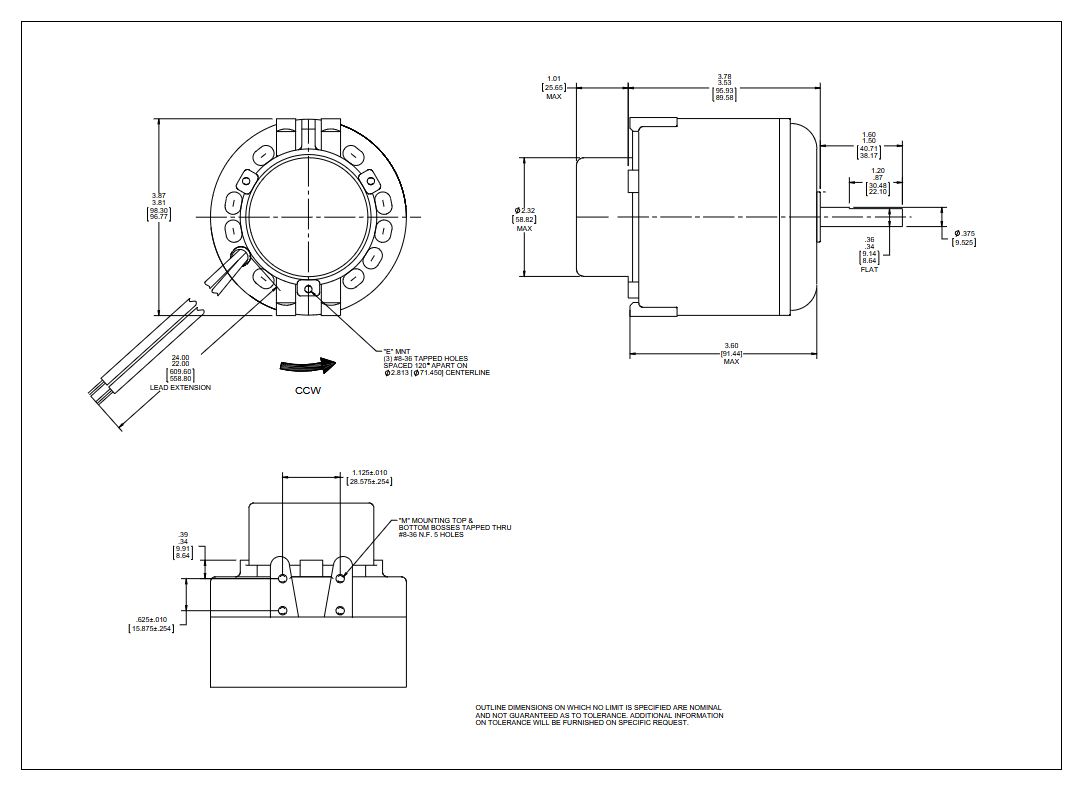

• Frame Length: 4.79 in

• Shaft Diameter: 0.375 in

• Shaft Extension: 1.55 in

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA compliant, A2L Compliant

• Frequency: 60 Hz

• Number of Speeds: 1

• Electrical Type: Shaded Pole

• Starting Method: Across The Line
