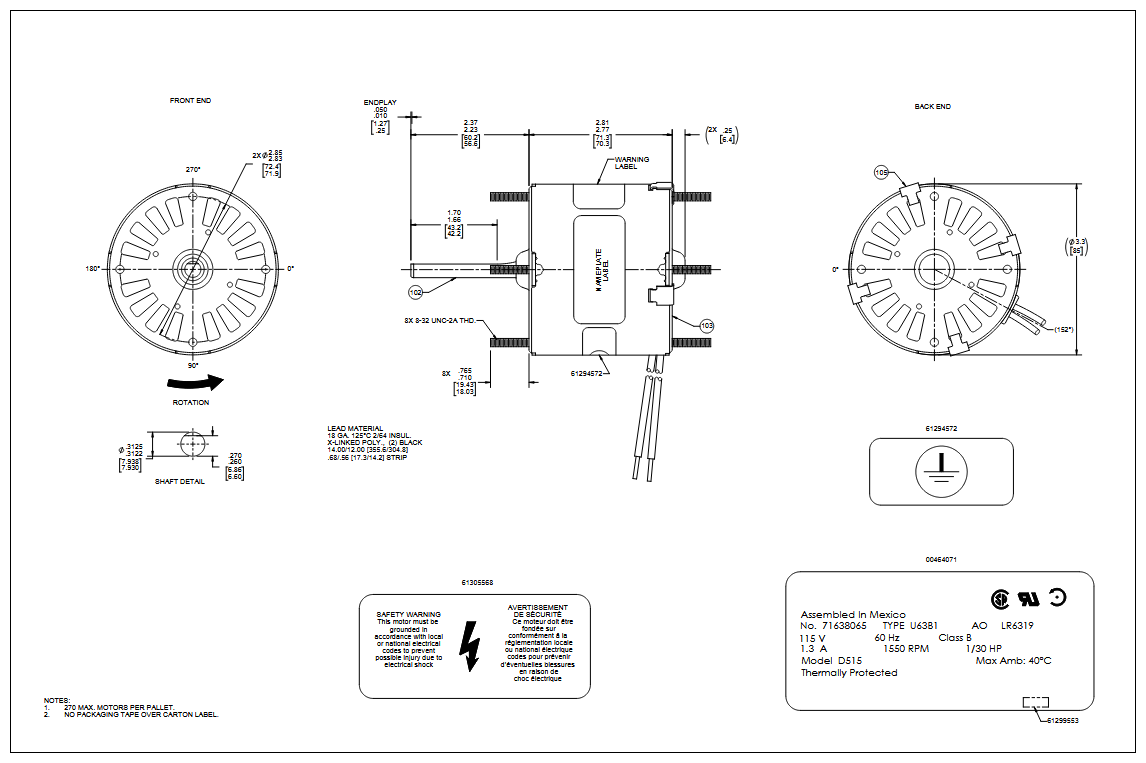

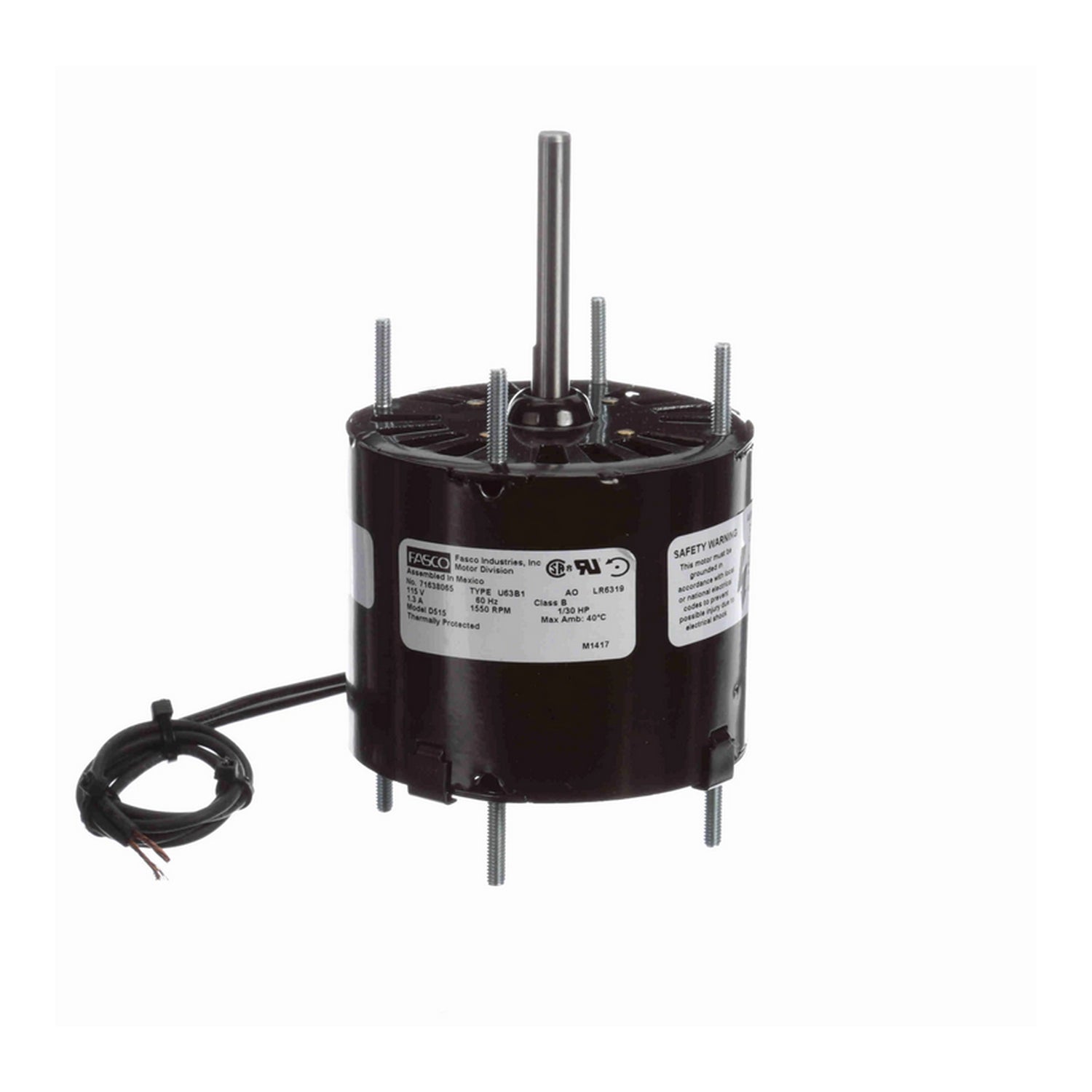

D515, 1/30 HP, 1550 RPM, 115 V, 1 Ph, 60 Hz, OAO, Frame 3.3"

This shaded‑pole fan and blower motor is designed for continuous air‑over duty in HVAC and general purpose applications, offering compact performance in a small 3.3‑inch diameter package with open air‑over enclosure.

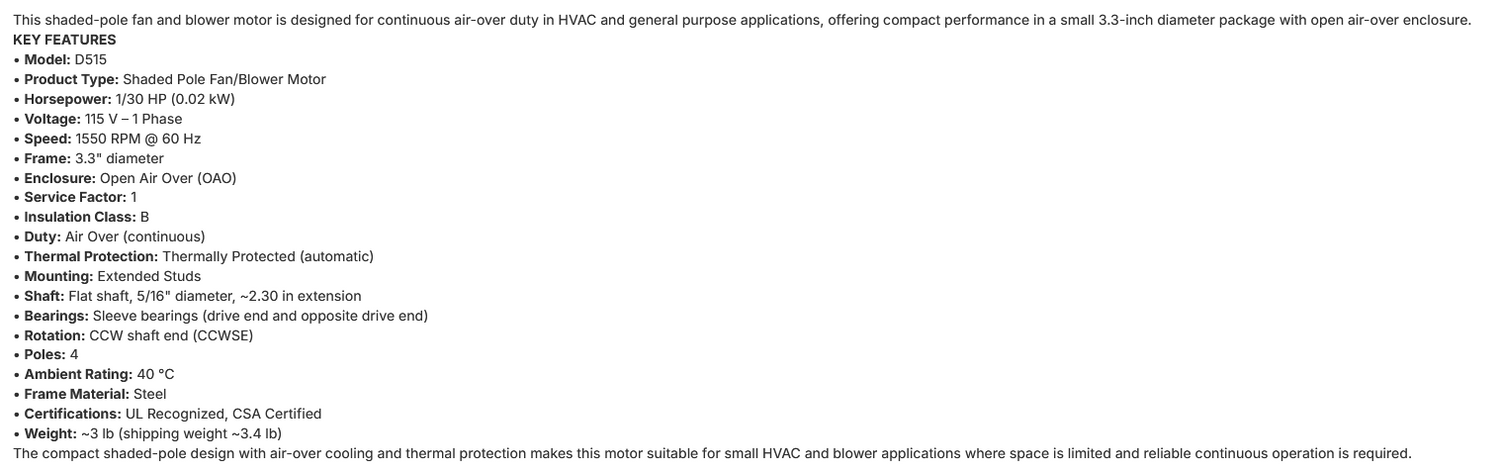

KEY FEATURES

• Model: D515

• Product Type: Shaded Pole Fan/Blower Motor

• Horsepower: 1/30 HP (0.02 kW)

• Voltage: 115 V – 1 Phase

• Speed: 1550 RPM @ 60 Hz

• Frame: 3.3" diameter

• Enclosure: Open Air Over (OAO)

• Service Factor: 1

• Insulation Class: B

• Duty: Air Over (continuous)

• Thermal Protection: Thermally Protected (automatic)

• Mounting: Extended Studs

• Shaft: Flat shaft, 5/16" diameter, ~2.30 in extension

• Bearings: Sleeve bearings (drive end and opposite drive end)

• Rotation: CCW shaft end (CCWSE)

• Poles: 4

• Ambient Rating: 40 °C

• Frame Material: Steel

• Certifications: UL Recognized, CSA Certified

• Weight: ~3 lb (shipping weight ~3.4 lb)

The compact shaded‑pole design with air‑over cooling and thermal protection makes this motor suitable for small HVAC and blower applications where space is limited and reliable continuous operation is required.
