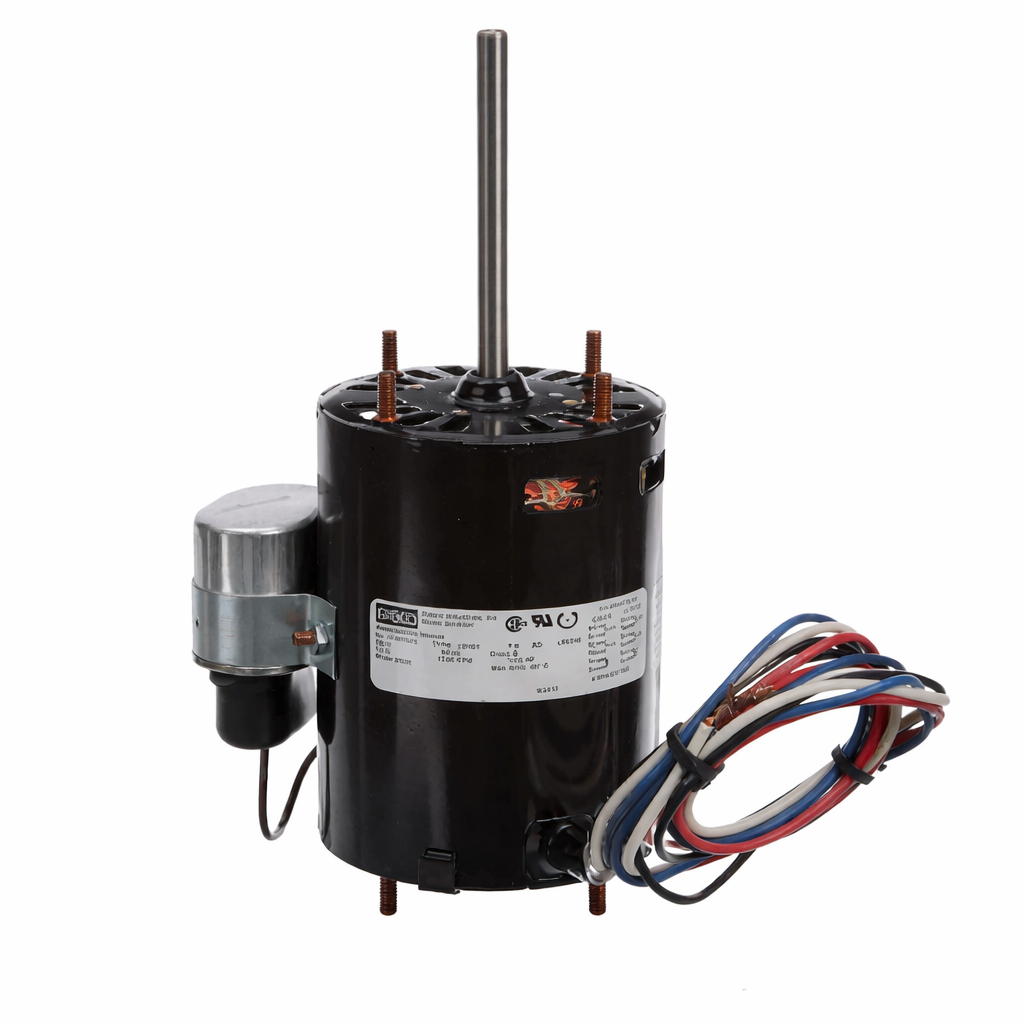

D503, Fan and Blower Motor, 1/10Hp, 1 Ph, 60 Hz, 230 V, 1590 RPM, 1 Speed, 3.3" Diameter, OAO

D503, Fan and Blower Motor, 1/10Hp, 1 Ph, 60 Hz, 230 V, 1590 RPM, 1 Speed, 3.3" Diameter, OAO

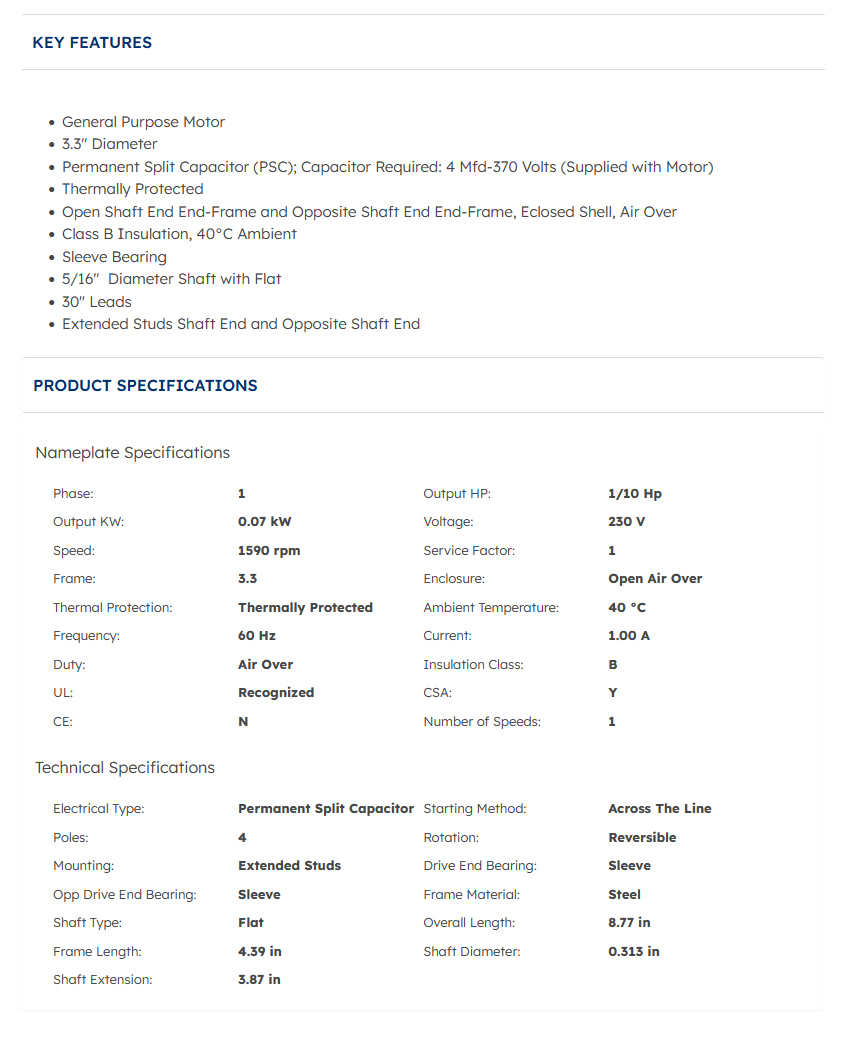

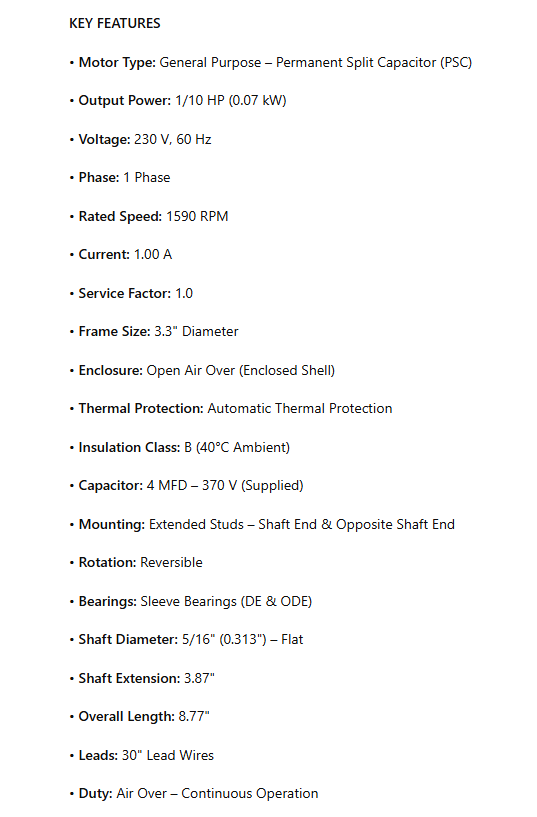

KEY FEATURES

• Motor Type: General Purpose – Permanent Split Capacitor (PSC)

• Output Power: 1/10 HP (0.07 kW)

• Voltage: 230 V, 60 Hz

• Phase: 1 Phase

• Rated Speed: 1590 RPM

• Current: 1.00 A

• Service Factor: 1.0

• Frame Size: 3.3" Diameter

• Enclosure: Open Air Over (Enclosed Shell)

• Thermal Protection: Automatic Thermal Protection

• Insulation Class: B (40°C Ambient)

• Capacitor: 4 MFD – 370 V (Supplied)

• Mounting: Extended Studs – Shaft End & Opposite Shaft End

• Rotation: Reversible

• Bearings: Sleeve Bearings (DE & ODE)

• Shaft Diameter: 5/16" (0.313") – Flat

• Shaft Extension: 3.87"

• Overall Length: 8.77"

• Leads: 30" Lead Wires

• Duty: Air Over – Continuous Operation
