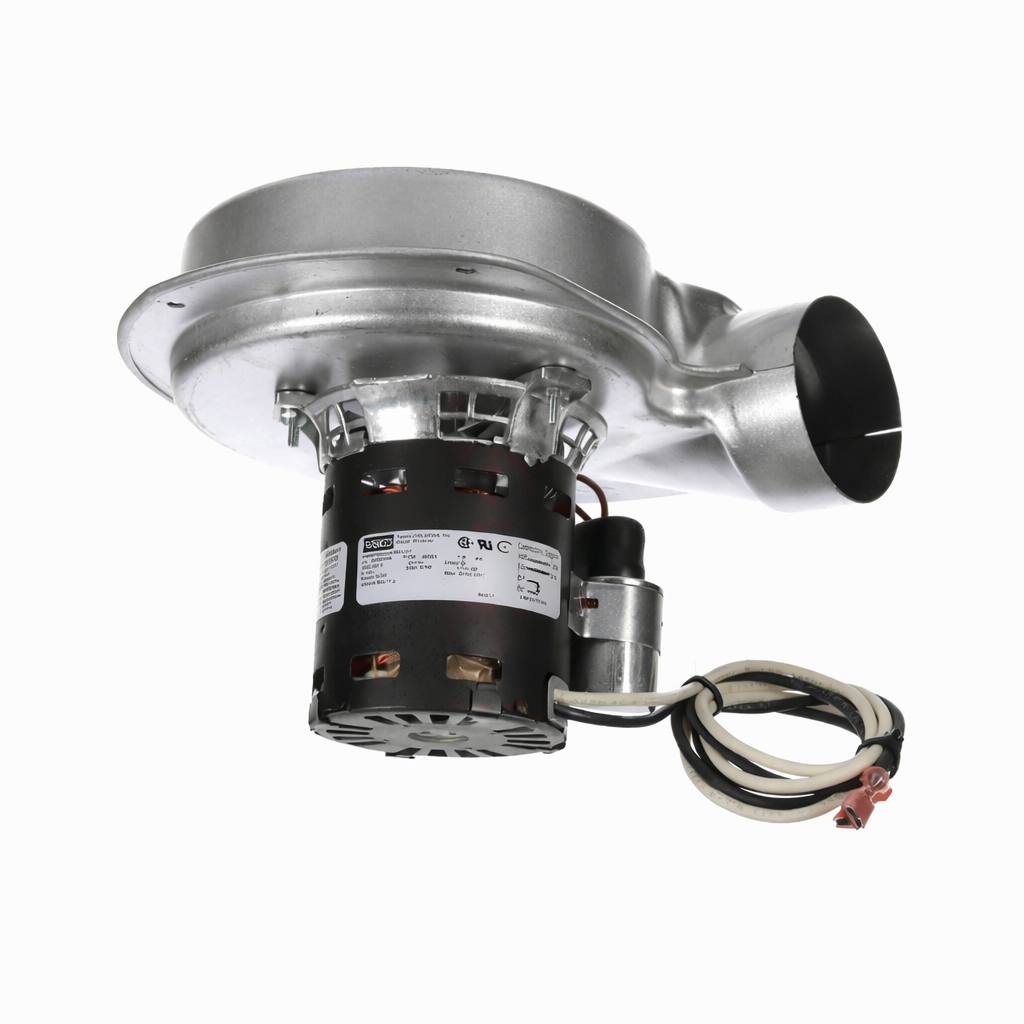

A234, Round Outlet Permanent Split Capacitor OEM Replacement Draft Inducer Blower, 3200 RPM, 208-230 Volts, Flange: No, 70625794

A234, Round Outlet Permanent Split Capacitor OEM Replacement Draft Inducer Blower, 3200 RPM, 208-230 Volts, Flange: No, 70625794

Replaces FA-A234

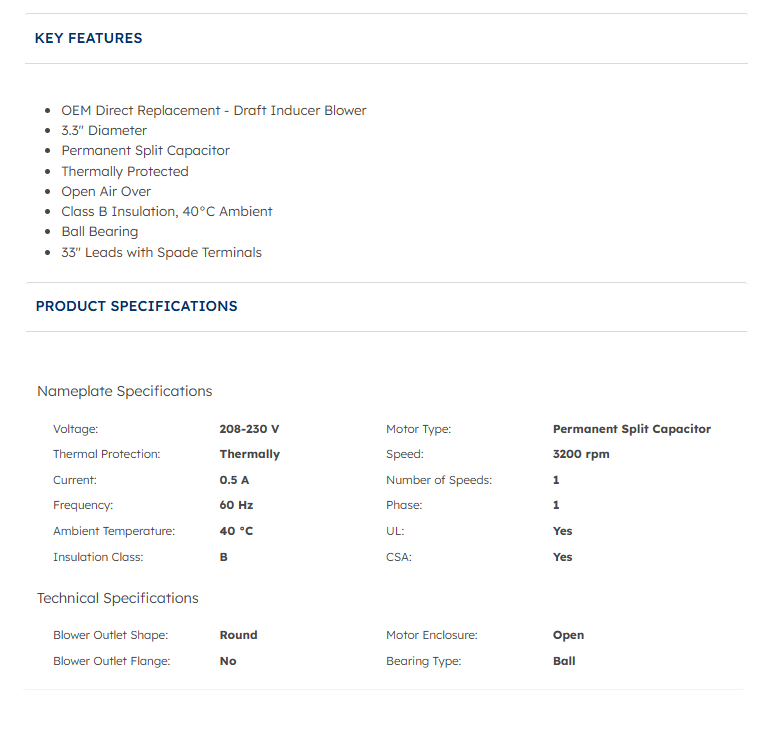

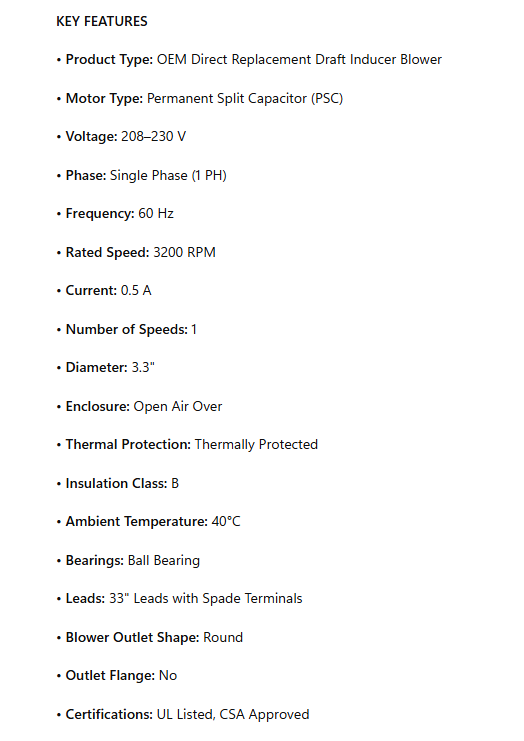

KEY FEATURES

• Product Type: OEM Direct Replacement Draft Inducer Blower

• Motor Type: Permanent Split Capacitor (PSC)

• Voltage: 208–230 V

• Phase: Single Phase (1 PH)

• Frequency: 60 Hz

• Rated Speed: 3200 RPM

• Current: 0.5 A

• Number of Speeds: 1

• Diameter: 3.3"

• Enclosure: Open Air Over

• Thermal Protection: Thermally Protected

• Insulation Class: B

• Ambient Temperature: 40°C

• Bearings: Ball Bearing

• Leads: 33" Leads with Spade Terminals

• Blower Outlet Shape: Round

• Outlet Flange: No

• Certifications: UL Listed, CSA Approved

CROSS REFERENCE

• FA-A234

• 7162-5155

• 026-39532-000

• 102529

• 7062-5155

• 7062-5267
