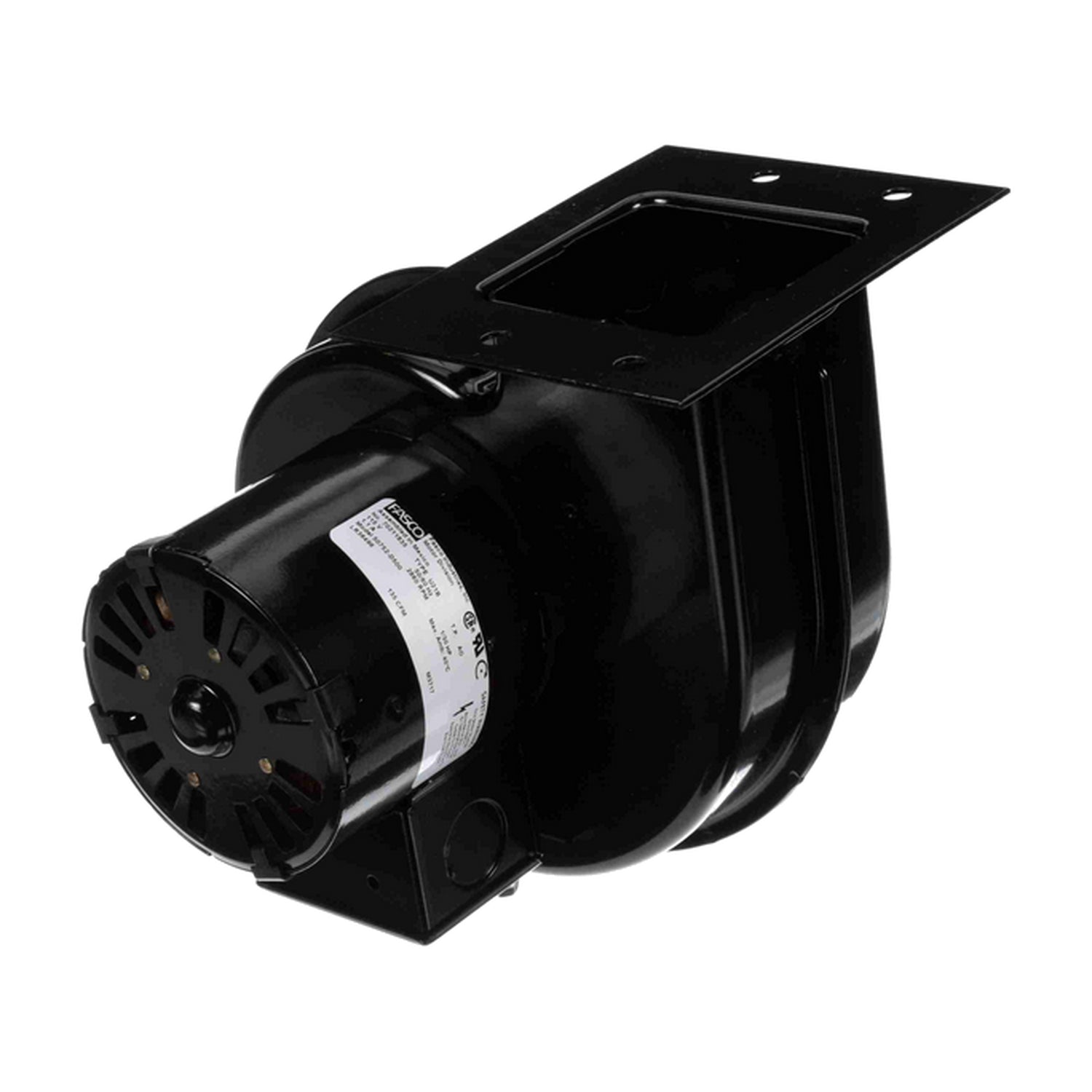

50752‑D500, 1/30 Hp, 3074 RPM, 115 V, 1 Ph, 50/60 Hz, Open Air Over, Frame 3.3

This compact single‑phase shaded‑pole centrifugal blower is designed for general ventilation and exhaust applications, delivering moderate airflow with thermal protection in a compact open‑air enclosure.

KEY FEATURES

• Model: 50752‑D500

• Product Type: BLOWER ASSEMBLY

• Horsepower: 1/30 Hp

• Voltage: 115 V @ 60 Hz / 115 V @ 50 Hz

• Speed: 3074 RPM @ 60 Hz / 3074 RPM @ 50 Hz

• Frame: 3.3

• Enclosure: Open Air Over (Open)

• Phase: 1

• Insulation Class: B

• Thermal Protection: Thermally Protected

• Bearing Type: Sleeve

• Blower Outlet Shape: Square

• Blower Outlet Flange: Yes

• Ambient Rating: 40 °C

• Certifications: UL, CSA

• Airflow (CFM): 135 CFM

• Current: 1.08 A

• Number of Speeds: 1

• Frequency: 50/60 Hz

• Rotation: Counterclockwise Shaft End

Closing: Its compact size, built‑in thermal protection, and reliable sleeve‑bearing design make it suitable for continuous ventilation tasks in constrained spaces.
