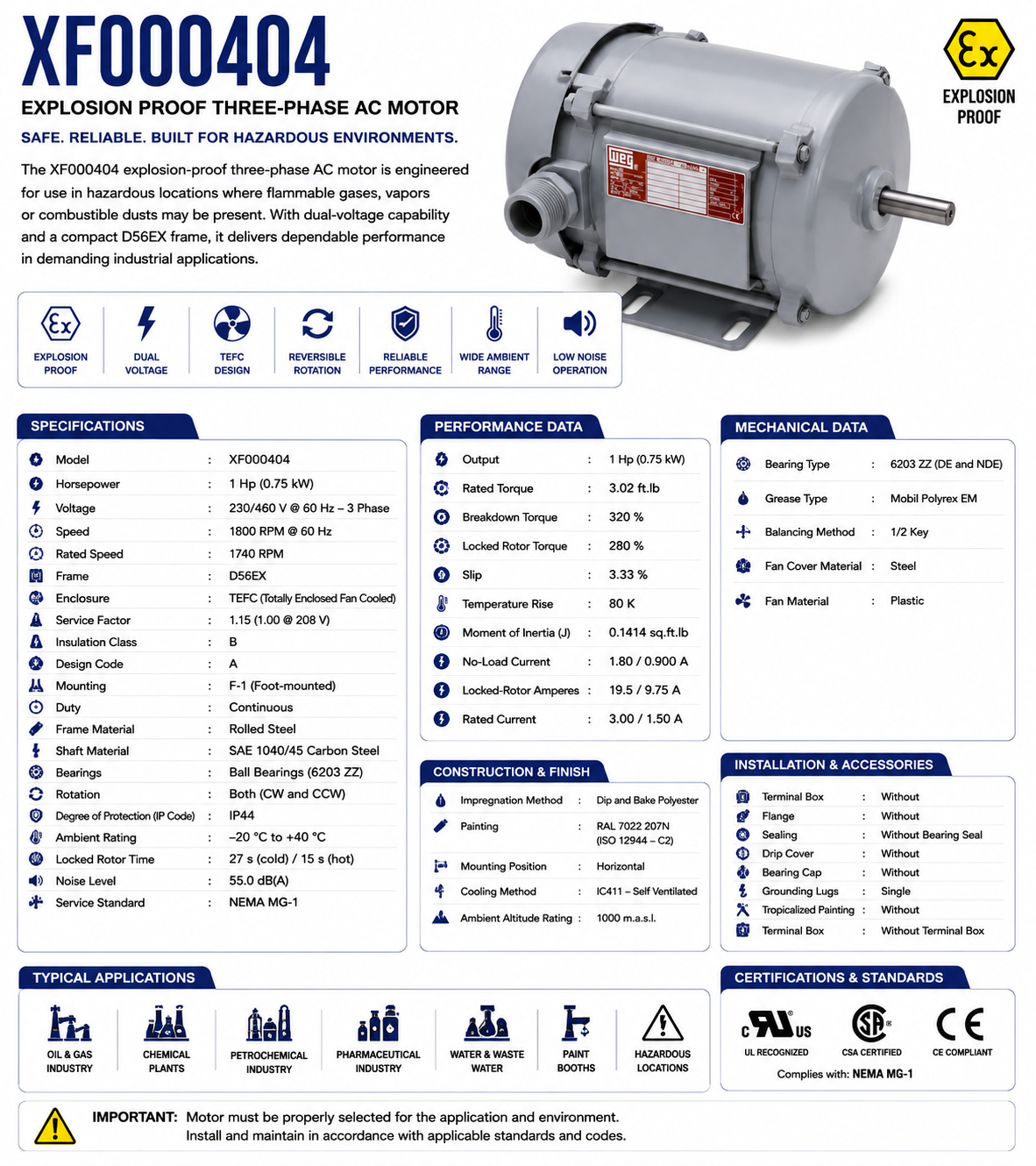

XF000404, 1Hp, 1800RPM, 230/460 V, 3Ph, 60 Hz, TEFC (Explosion‑Proof), Frame D56EX

This explosion‑proof three‑phase AC motor is engineered for hazardous environments, offering dual‑voltage operation and a totally enclosed fan‑cooled design in a compact D56EX frame.

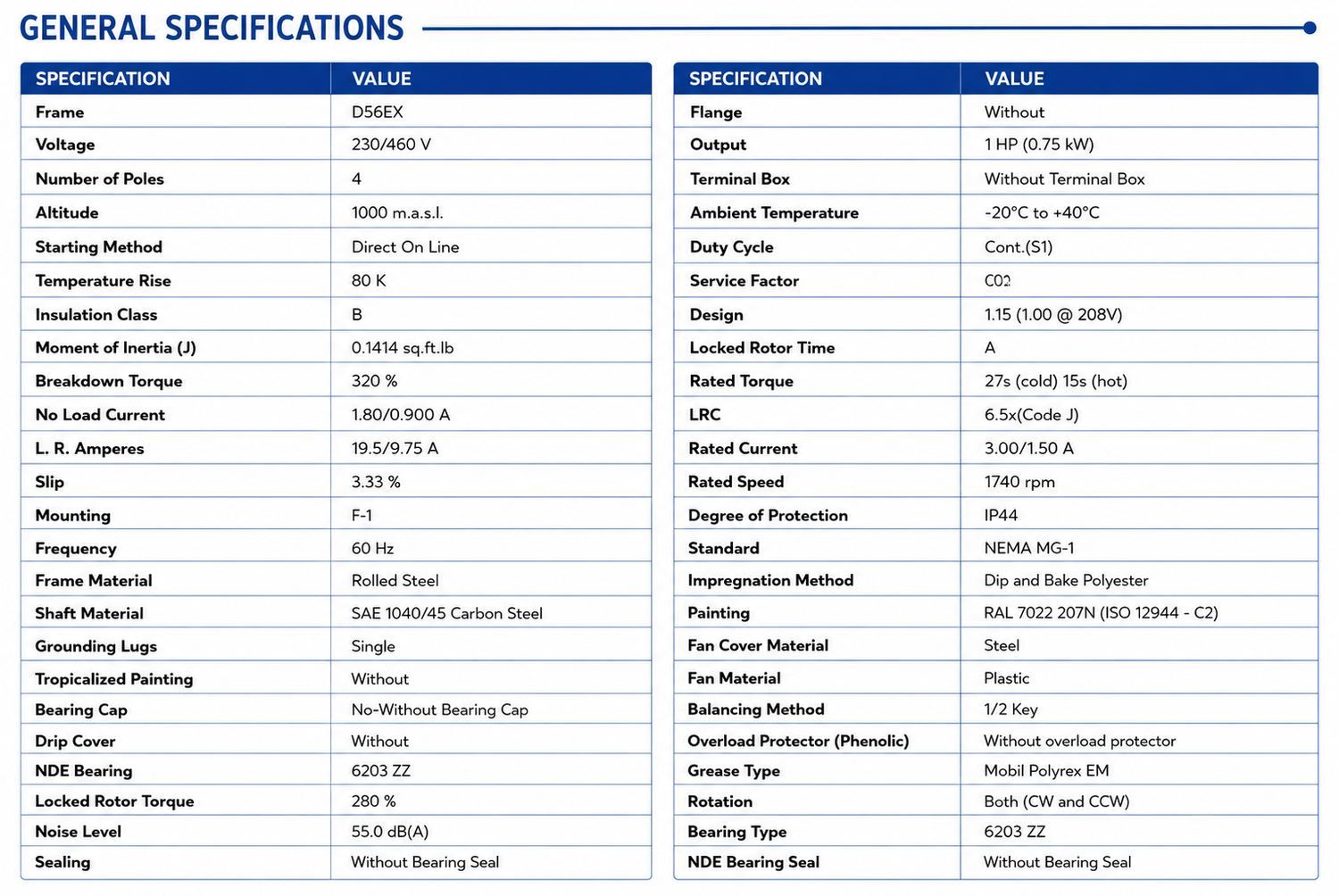

KEY FEATURES

• Model: XF000404

• Horsepower: 1 Hp (0.75 kW)

• Voltage: 230/460 V @ 60 Hz – 3 Phase

• Speed: 1800 RPM @ 60 Hz

• Frame: D56EX

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15 (1.00 @ 208 V)

• Insulation Class: B

• Design Code: A

• Mounting: F‑1 (Foot‑mounted)

• Frame Material: Rolled Steel

• Shaft Material: SAE 1040/45 Carbon Steel

• Bearings: Ball Bearings (6203 ZZ)

• Rotation: Both (CW and CCW)

• Duty: Continuous

• Degree of Protection (IP Code): IP44

• Ambient Rating: –20 °C to +40 °C

• Locked Rotor Time: 27 s (cold), 15 s (hot)

• Noise Level: 55.0 dB(A)

• Breakdown Torque: 320 %

• Locked Rotor Torque: 280 %

• Slip: 3.33 %

• Temperature Rise: 80 K

• Moment of Inertia: 0.1414 sq.ft.lb

• No‑Load Current: 1.80/0.900 A

• Locked‑Rotor Amperes: 19.5/9.75 A

• Rated Current: 3.00/1.50 A

• Rated Speed: 1740 RPM

• Rated Torque: 3.02 ft.lb

• Service Standard: NEMA MG‑1

• Impregnation Method: Dip and Bake Polyester

• Painting: RAL 7022 207N (ISO 12944 – C2)

• Fan Cover Material: Steel

• Fan Material: Plastic

• Balancing Method: 1/2 Key

• Grease Type: Mobil Polyrex EM

• Terminal Box: Without

• Flange: Without

• Sealing: Without Bearing Seal

• Drip Cover: Without

• Bearing Cap: Without

• Grounding Lugs: Single

• Tropicalized Painting: Without

• Output: 1 Hp (0.75 kW)

• Terminal Box: Without Terminal Box
