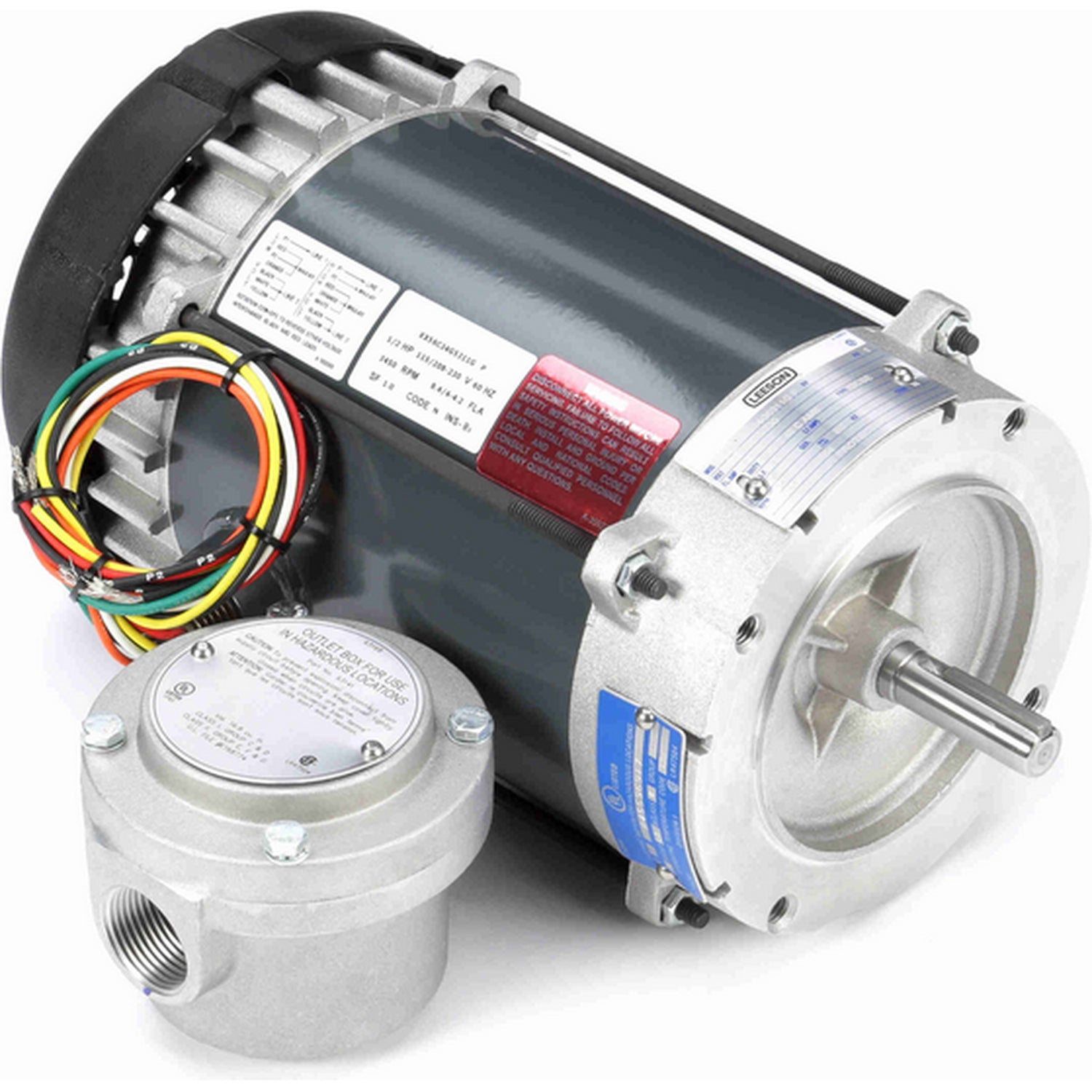

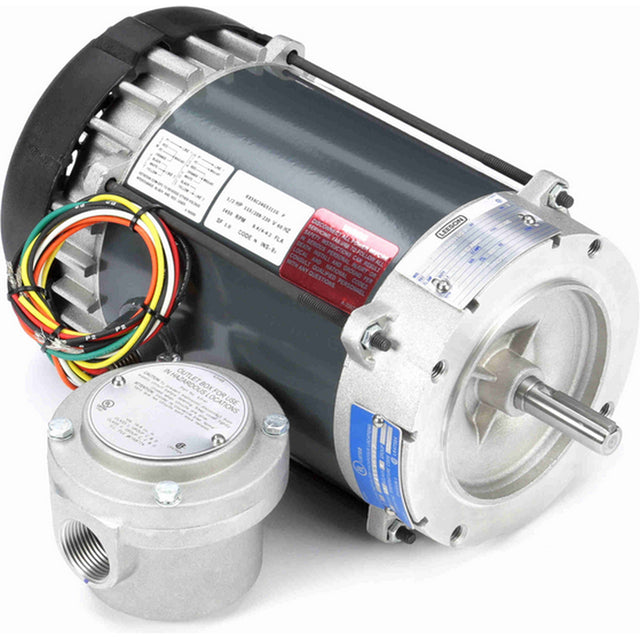

G854, 0.50Hp, 3600 RPM, 115/230 V, 1 Ph, 60 Hz, EPFC, Frame 56C, 056C34G5311

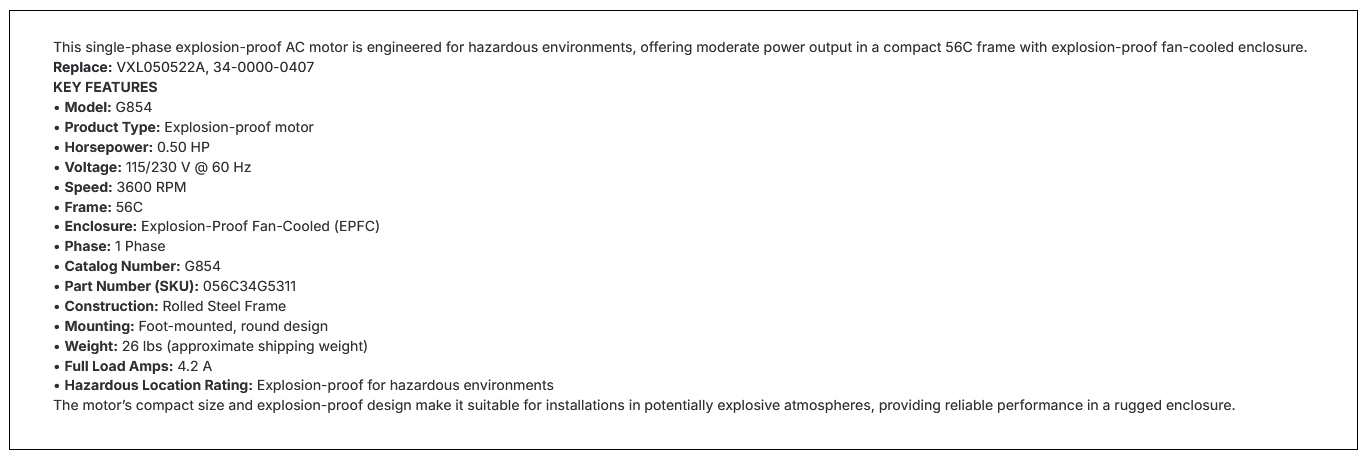

This single-phase explosion‑proof AC motor is engineered for hazardous environments, offering moderate power output in a compact 56C frame with explosion‑proof fan‑cooled enclosure.

Replace: VXL050522A, 34-0000-0407

KEY FEATURES

• Model: G854

• Product Type: Explosion‑proof motor

• Horsepower: 0.50 HP

• Voltage: 115/230 V @ 60 Hz

• Speed: 3600 RPM

• Frame: 56C

• Enclosure: Explosion‑Proof Fan‑Cooled (EPFC)

• Phase: 1 Phase

• Catalog Number: G854

• Part Number (SKU): 056C34G5311

• Construction: Rolled Steel Frame

• Mounting: Foot‑mounted, round design

• Weight: 26 lbs (approximate shipping weight)

• Full Load Amps: 4.2 A

• Hazardous Location Rating: Explosion‑proof for hazardous environments

The motor’s compact size and explosion‑proof design make it suitable for installations in potentially explosive atmospheres, providing reliable performance in a rugged enclosure.
