G661, 0.75Hp, 1725 RPM, 208‑230/460 V, 3 Ph, 60 Hz, Explosion Proof Fan Cooled (EPFC), Frame 56, 056T17G5313

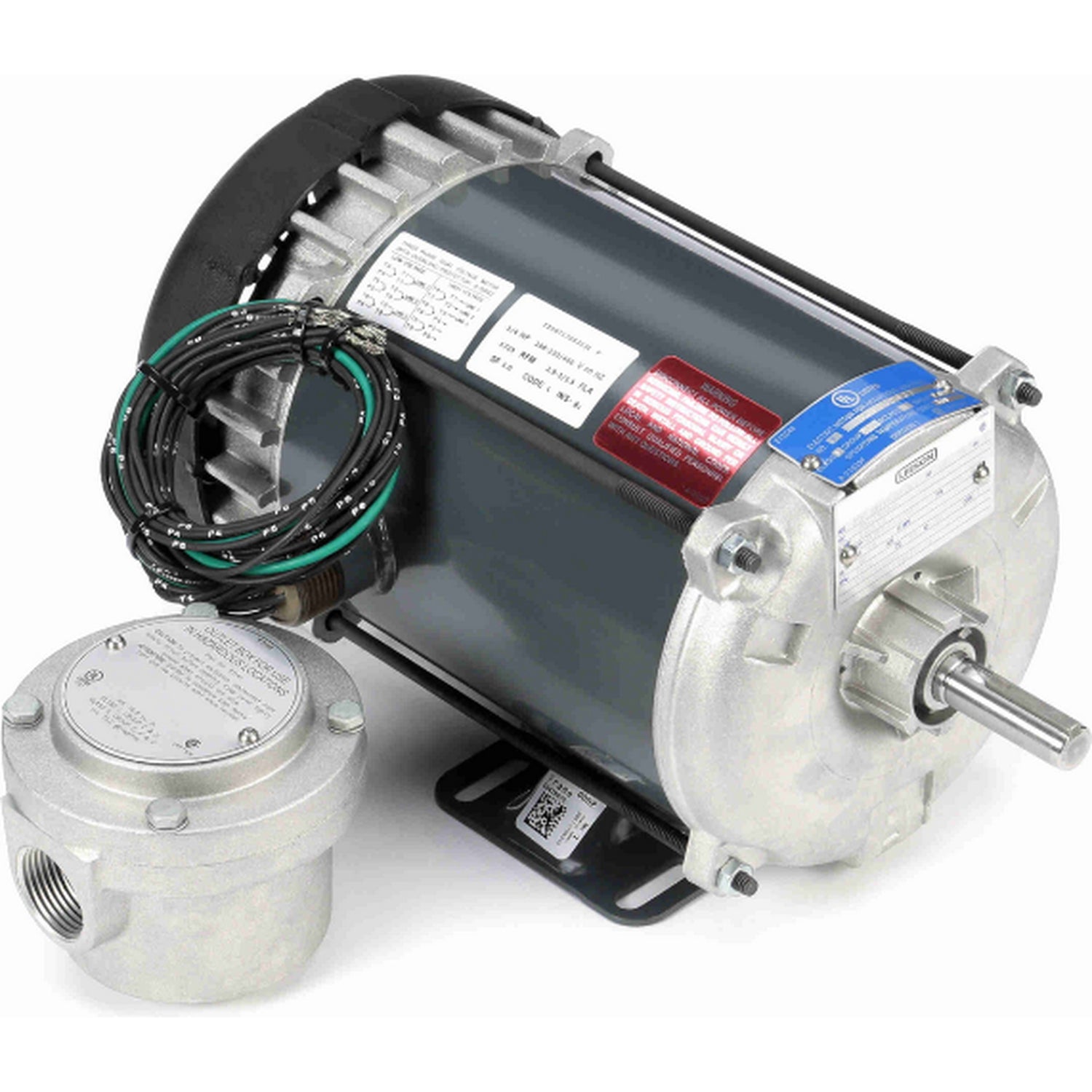

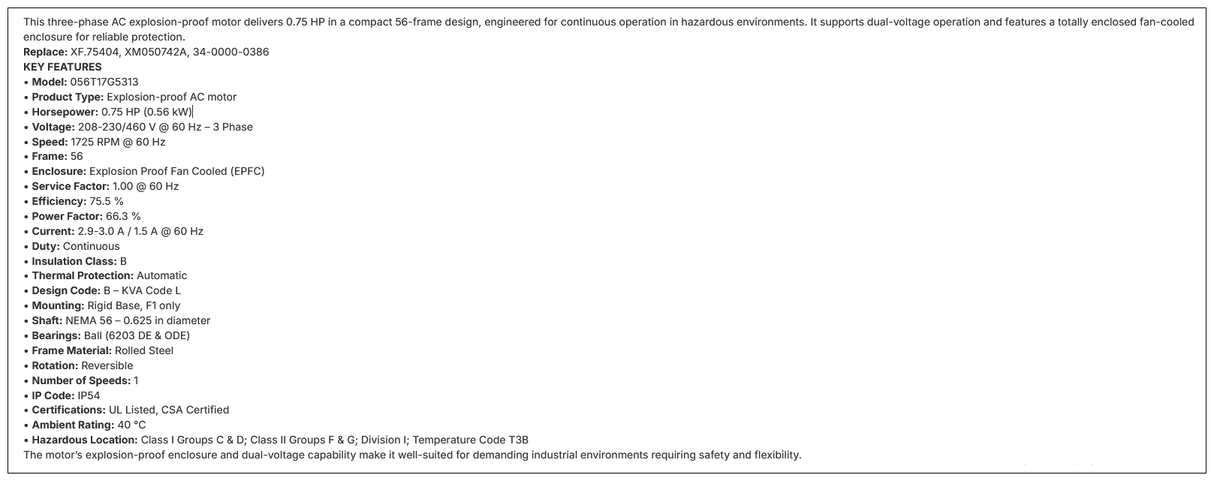

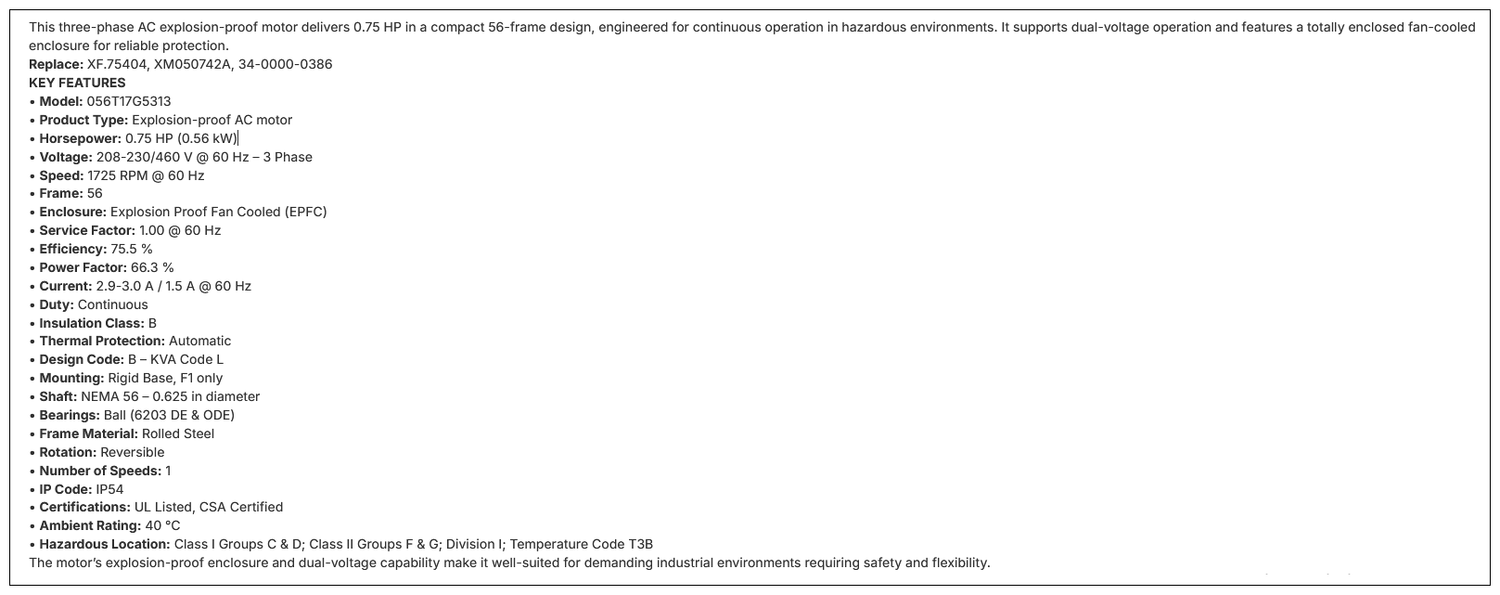

This three‑phase AC explosion‑proof motor delivers 0.75 HP in a compact 56‑frame design, engineered for continuous operation in hazardous environments. It supports dual‑voltage operation and features a totally enclosed fan‑cooled enclosure for reliable protection.

Replace: XF.75404, XM050742A, 34-0000-0386

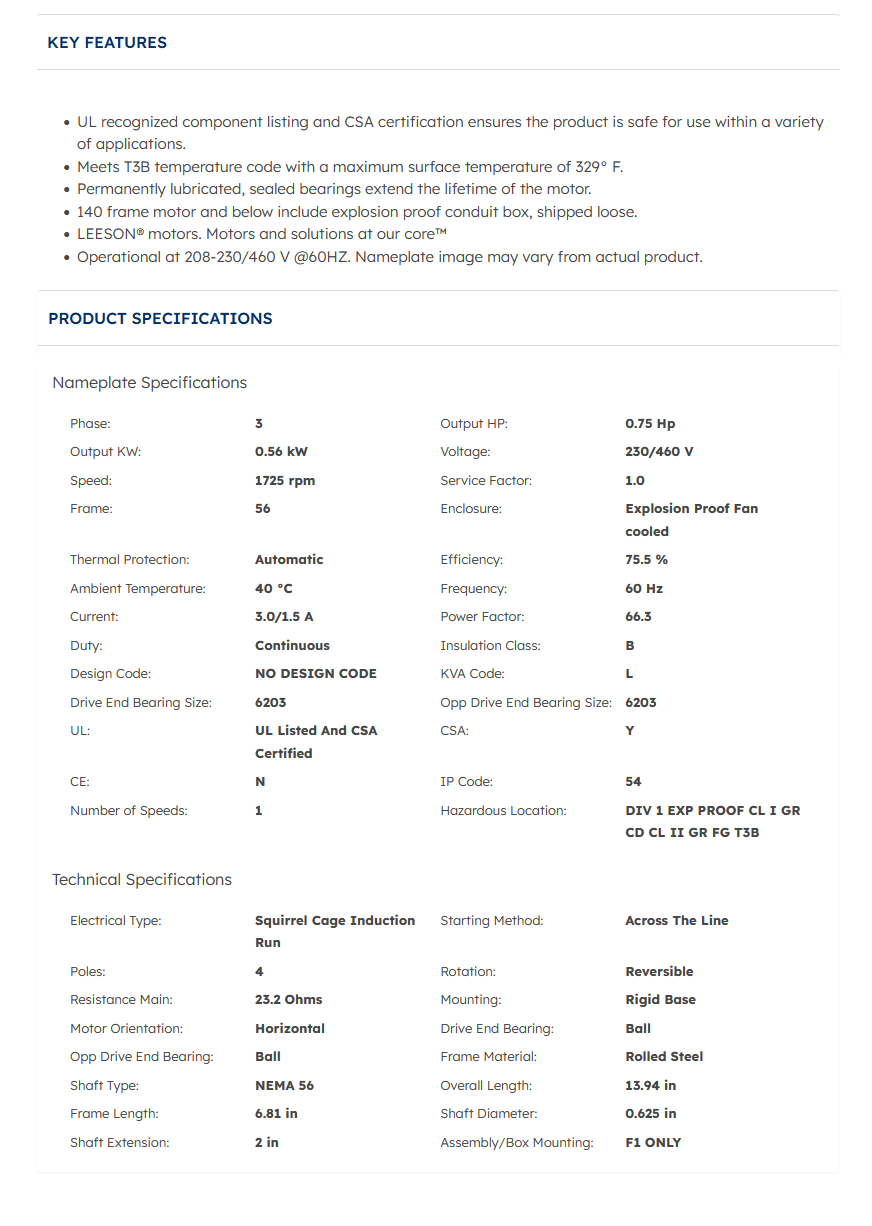

KEY FEATURES

• Model: 056T17G5313

• Product Type: Explosion‑proof AC motor

• Horsepower: 0.75 HP (0.56 kW)

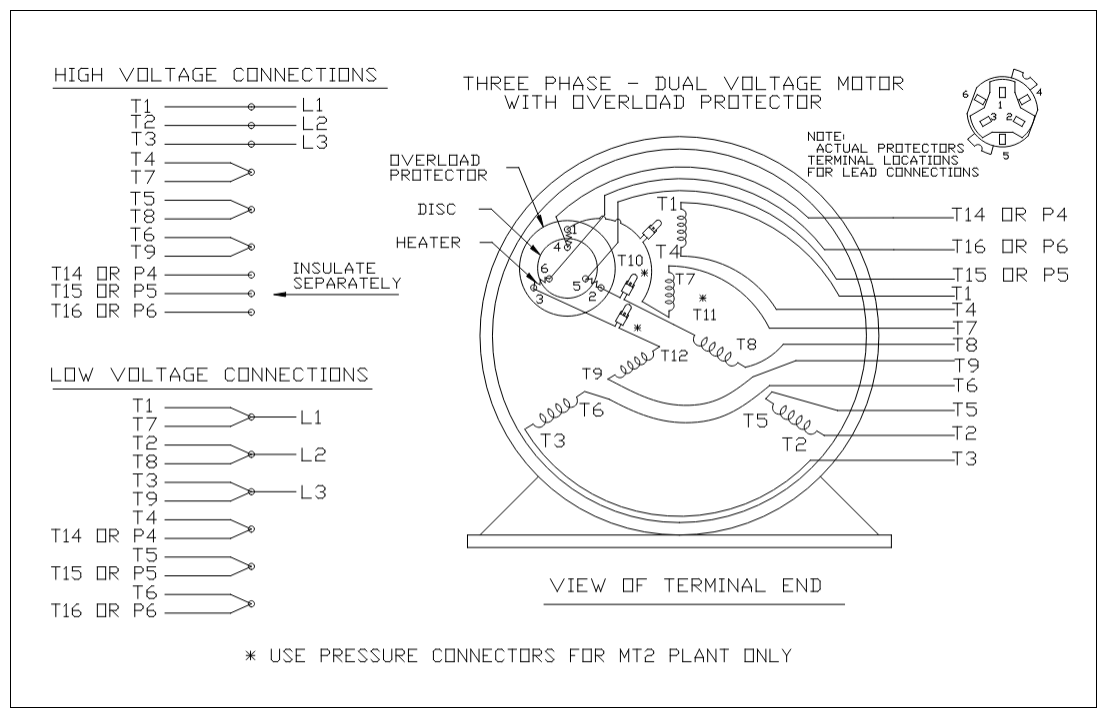

• Voltage: 208‑230/460 V @ 60 Hz – 3 Phase

• Speed: 1725 RPM @ 60 Hz

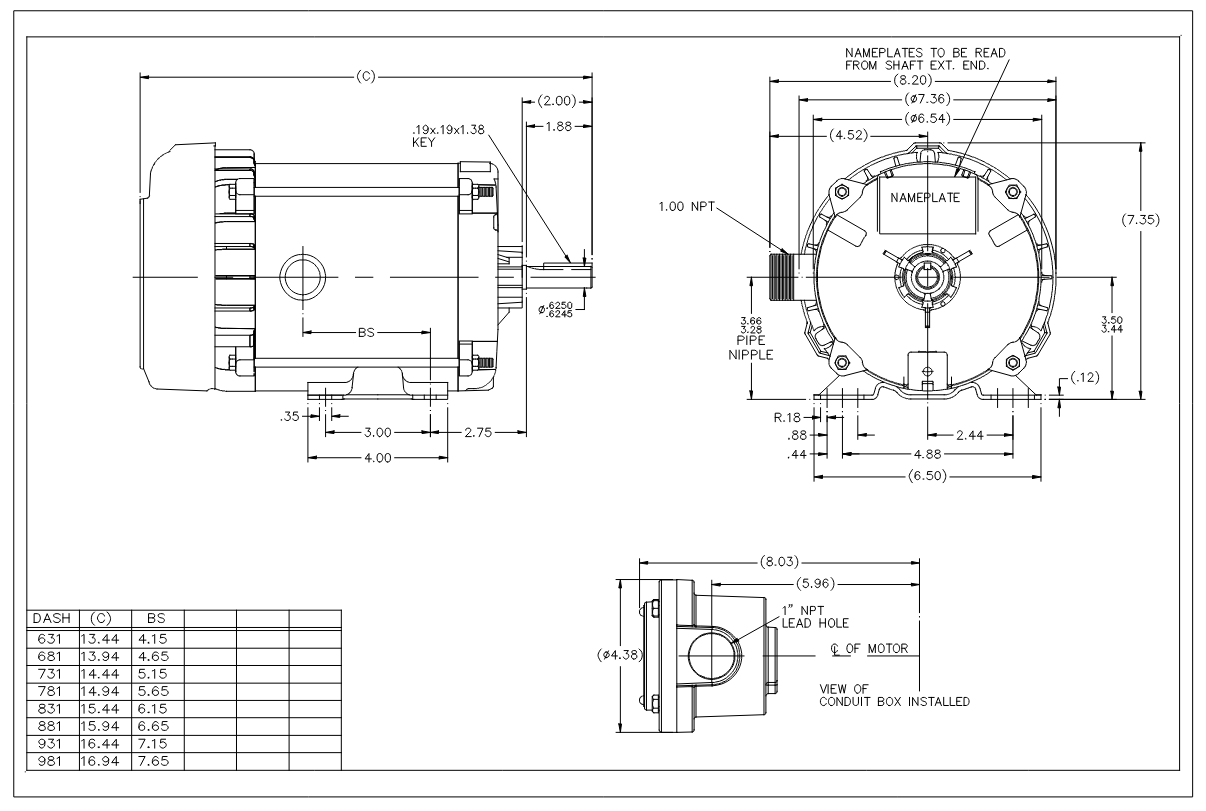

• Frame: 56

• Enclosure: Explosion Proof Fan Cooled (EPFC)

• Service Factor: 1.00 @ 60 Hz

• Efficiency: 75.5 %

• Power Factor: 66.3 %

• Current: 2.9‑3.0 A / 1.5 A @ 60 Hz

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Automatic

• Design Code: B – KVA Code L

• Mounting: Rigid Base, F1 only

• Shaft: NEMA 56 – 0.625 in diameter

• Bearings: Ball (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: Reversible

• Number of Speeds: 1

• IP Code: IP54

• Certifications: UL Listed, CSA Certified

• Ambient Rating: 40 °C

• Hazardous Location: Class I Groups C & D; Class II Groups F & G; Division I; Temperature Code T3B

The motor’s explosion‑proof enclosure and dual‑voltage capability make it well‑suited for demanding industrial environments requiring safety and flexibility.
