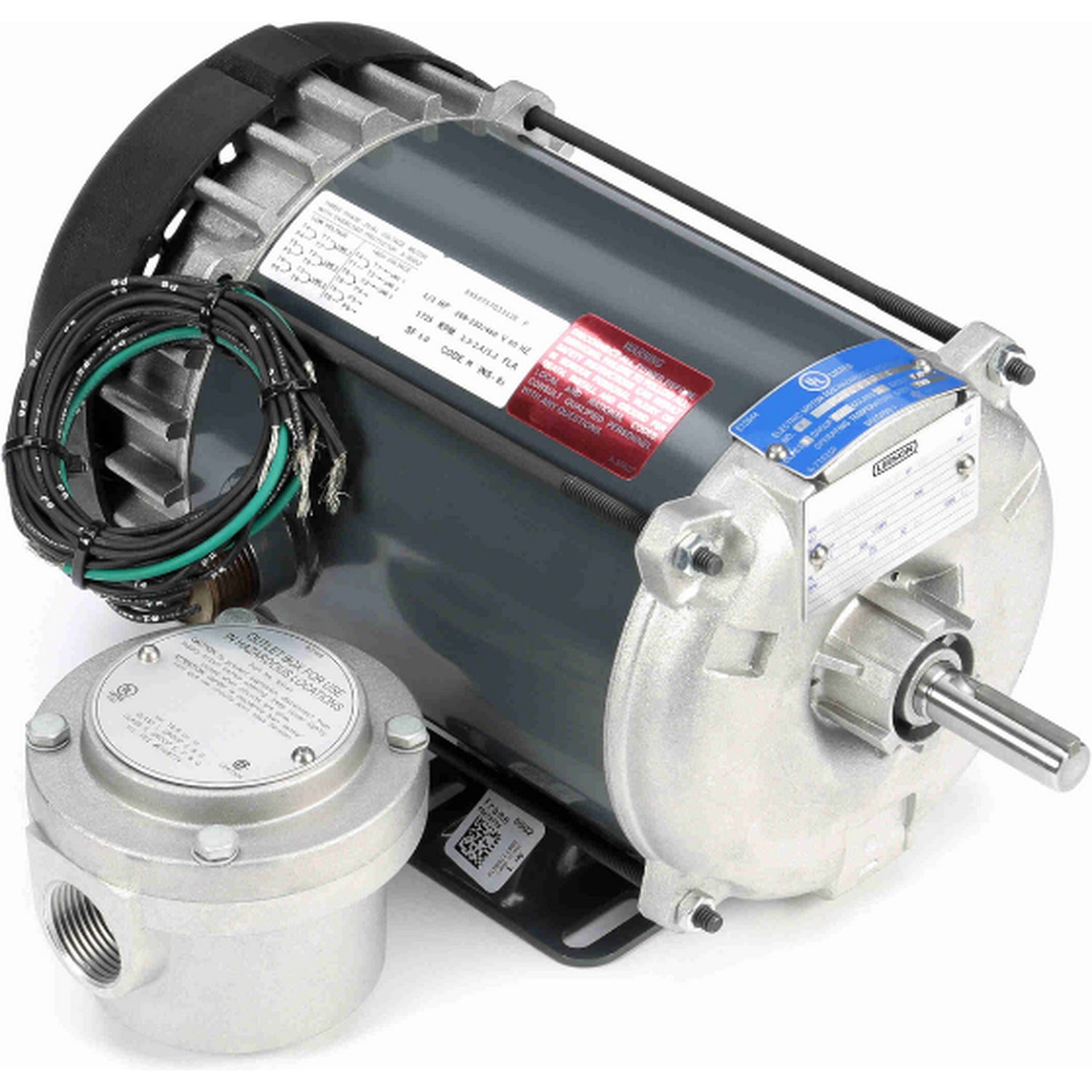

G649, 0.5Hp, 1800 RPM, 208‑230/460 V, 3 Ph, 60 Hz, Explosion Proof Fan Cooled (EPFC), Frame 56, 056T17G5312

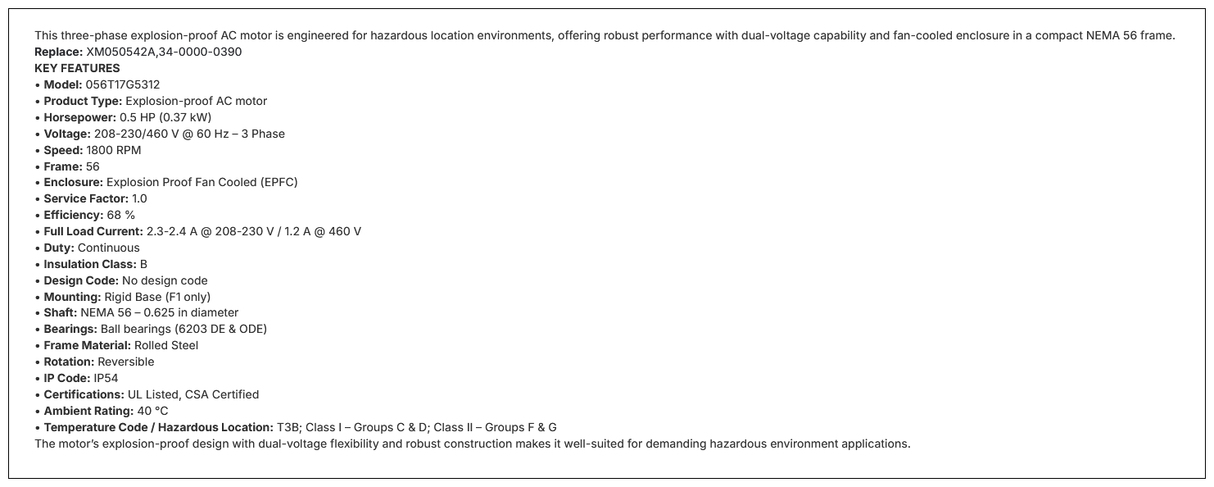

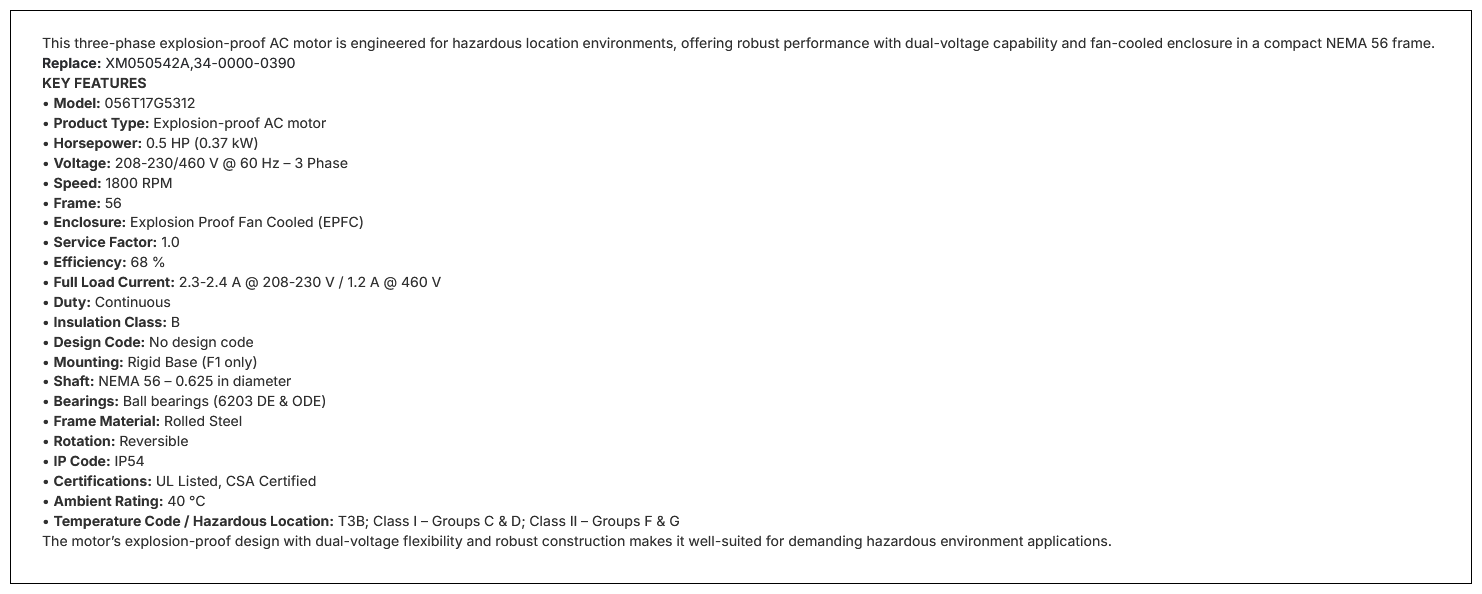

This three‑phase explosion‑proof AC motor is engineered for hazardous location environments, offering robust performance with dual‑voltage capability and fan‑cooled enclosure in a compact NEMA 56 frame.

Replace: XM050542A,34-0000-0390

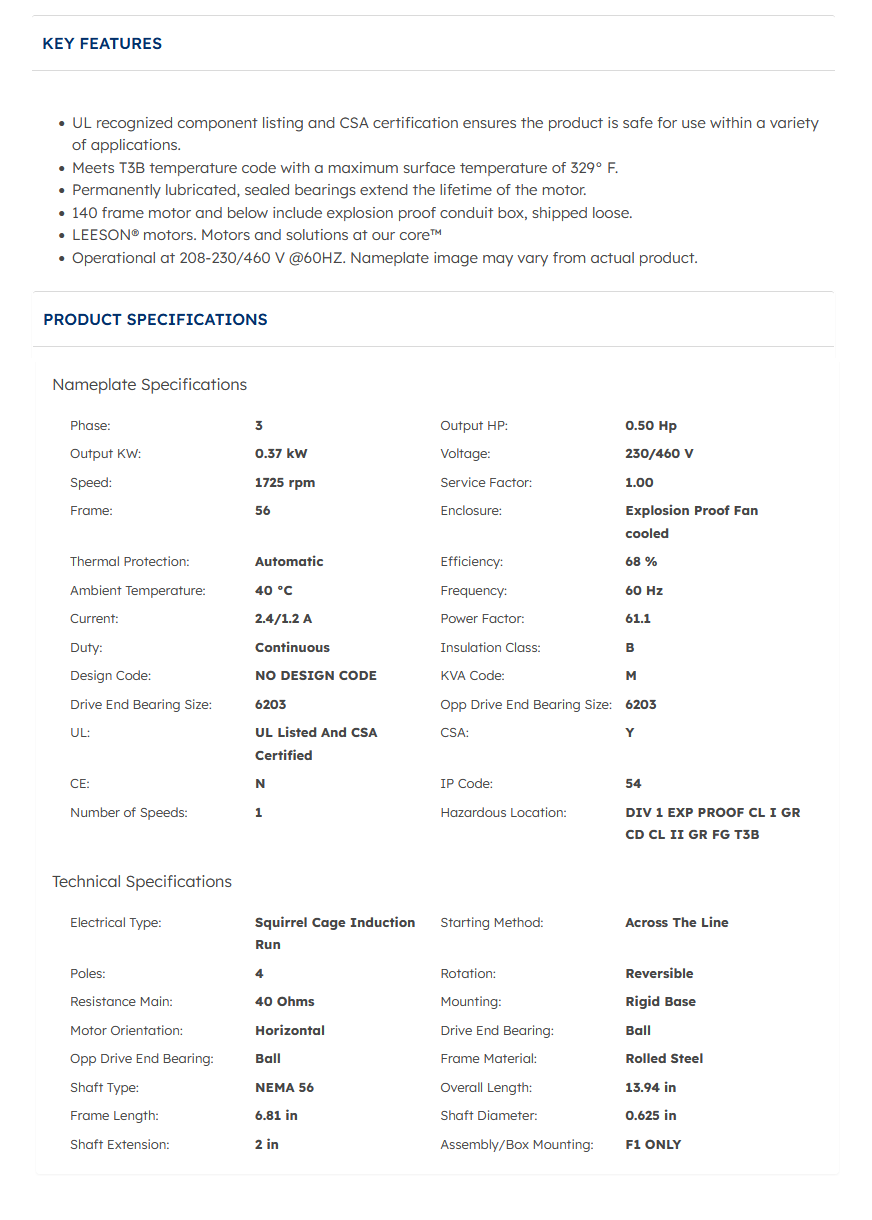

KEY FEATURES

• Model: 056T17G5312

• Product Type: Explosion‑proof AC motor

• Horsepower: 0.5 HP (0.37 kW)

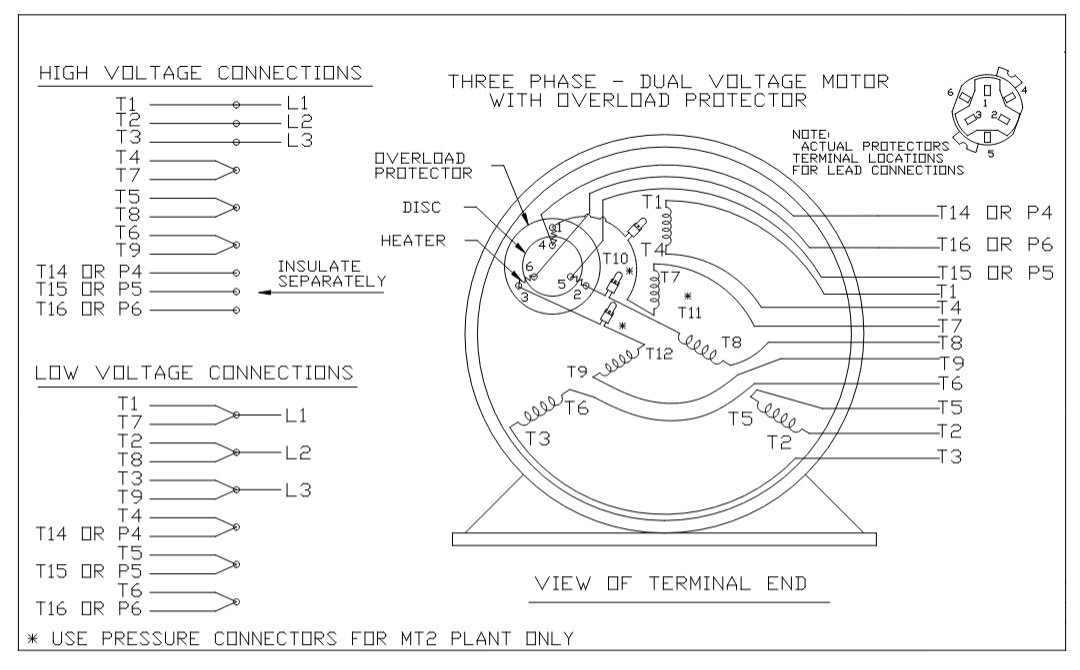

• Voltage: 208‑230/460 V @ 60 Hz – 3 Phase

• Speed: 1800 RPM

• Frame: 56

• Enclosure: Explosion Proof Fan Cooled (EPFC)

• Service Factor: 1.0

• Efficiency: 68 %

• Full Load Current: 2.3‑2.4 A @ 208‑230 V / 1.2 A @ 460 V

• Duty: Continuous

• Insulation Class: B

• Design Code: No design code

• Mounting: Rigid Base (F1 only)

• Shaft: NEMA 56 – 0.625 in diameter

• Bearings: Ball bearings (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: Reversible

• IP Code: IP54

• Certifications: UL Listed, CSA Certified

• Ambient Rating: 40 °C

• Temperature Code / Hazardous Location: T3B; Class I – Groups C & D; Class II – Groups F & G

The motor’s explosion‑proof design with dual‑voltage flexibility and robust construction makes it well‑suited for demanding hazardous environment applications.
