G647, 1/3Hp, 1725 RPM, 208‑230/460 V, 3Ph, 60 Hz, Explosion Proof (EPNV), Frame 56, 056T17E5309

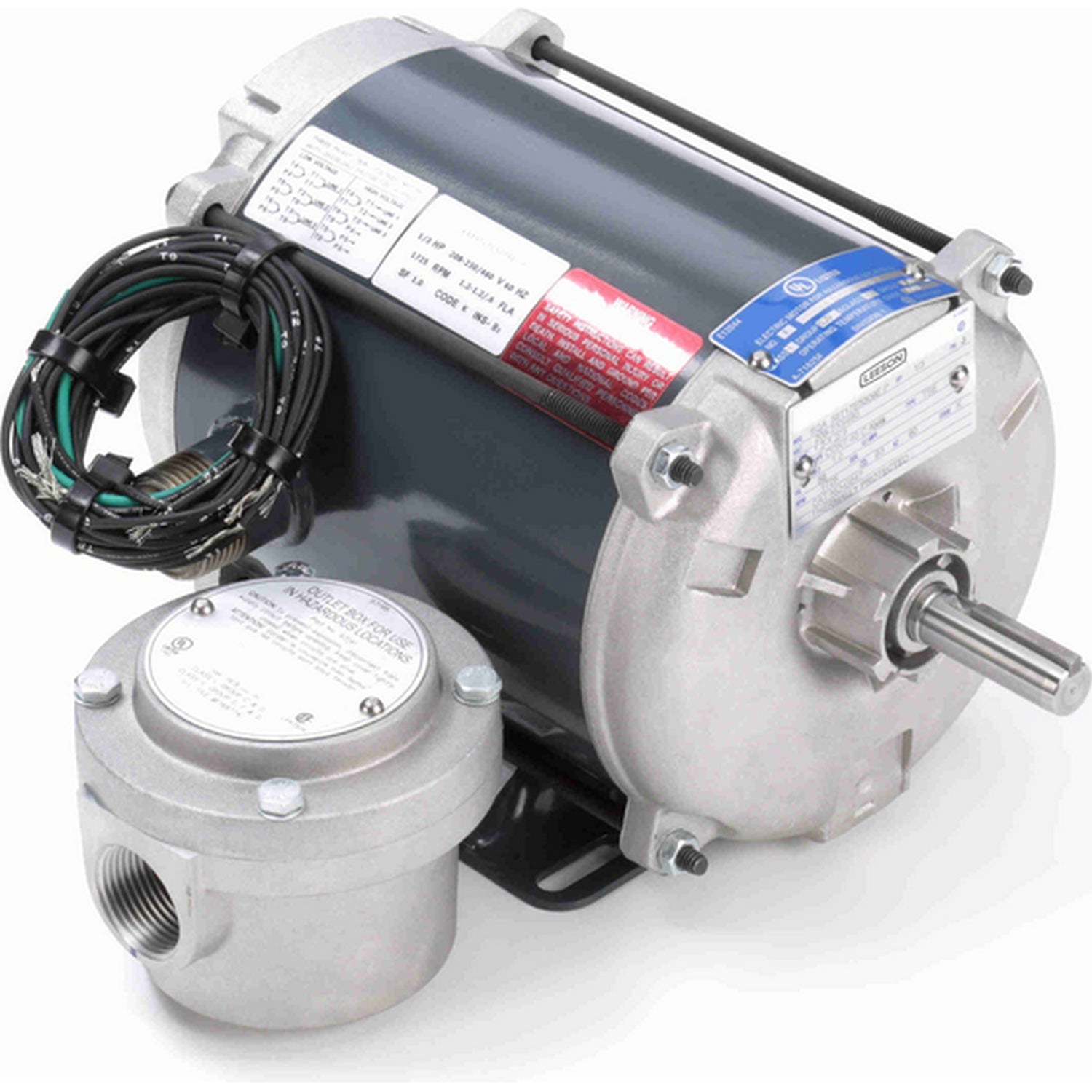

This three‑phase explosion‑proof AC motor is engineered for hazardous environments, delivering 1/3 Hp power at 1725 RPM with dual‑voltage capability in a compact 56 frame. It features automatic overload protection, meets T3B temperature code, and includes a conduit box for safe operation in Division 1, Class I & II locations.

Replace: XF.33404, XM050342A,34-0000-0383

KEY FEATURES

• Model: 056T17E5309

• Horsepower: 1/3 Hp

• Voltage: 208‑230/460 V @ 60 Hz

• Speed: 1725 RPM @ 60 Hz

• Frame: 56

• Enclosure: Explosion Proof (EPNV)

• Phase: 3 Phase

• Service Factor: 1.15

• Insulation Class: B

• Duty: Continuous

• Overload Protection: Automatic overload

• Temperature Code: T3B

• Certifications: UL Listed (File No. E12044), CSA Certified (File No. LR47504)

• Ambient Rating: 40 °C

• Mounting: Rigid Base

• Enclosure Protection Rating: IP43

• Orientation: Horizontal
