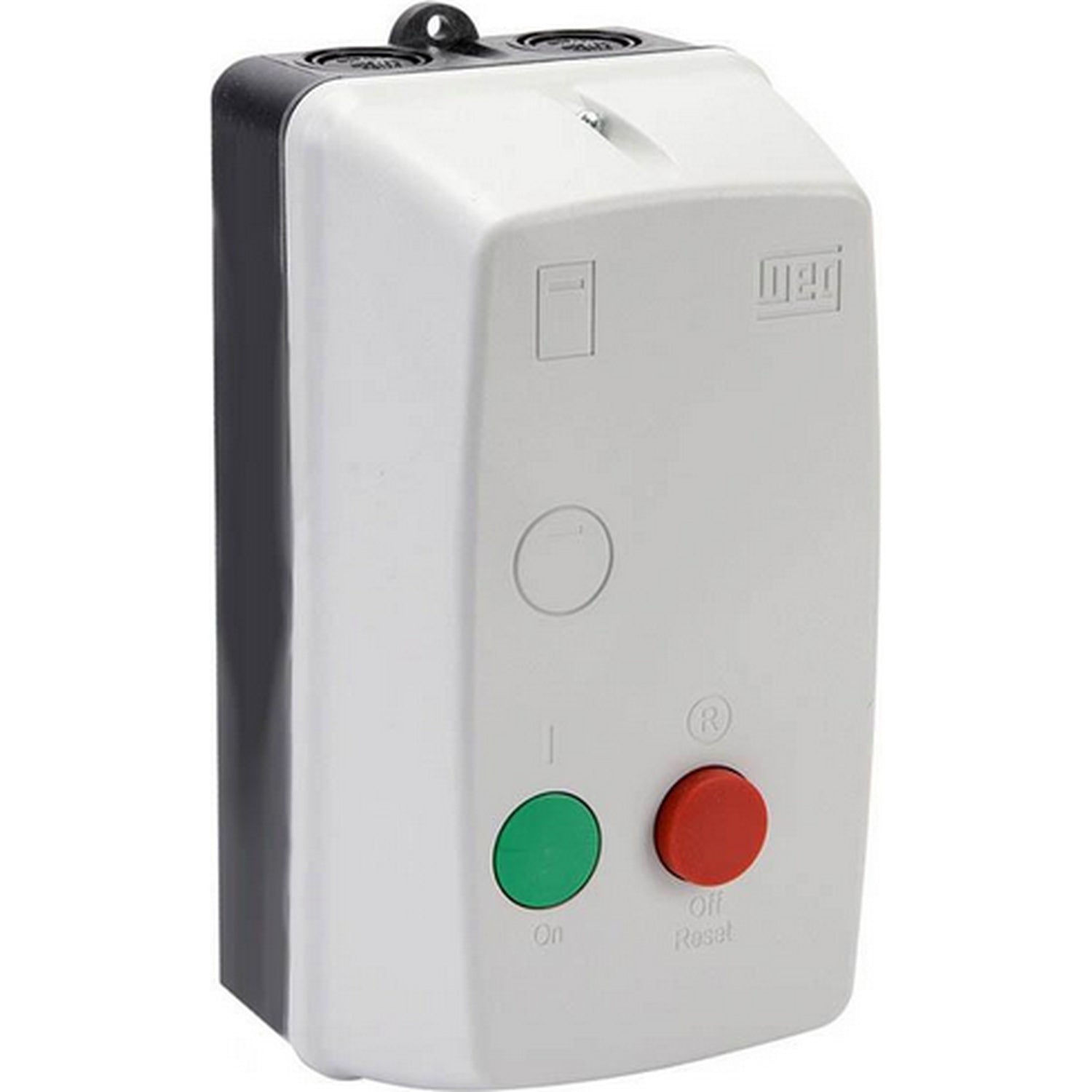

PESWS‑B38V24AX‑RM69, up to 7.5 HP (single‑phase), 208‑240 V coil, Type 4X Non‑Metallic Enclosure

This single‑phase enclosed magnetic starter is designed for across‑the‑line motor starting and protection in industrial environments, featuring a compact Type 4X non‑metallic enclosure and integrated overload relay.

KEY FEATURES

• Model: PESWS‑B38V24AX‑RM69

• Product Type: Non‑combination magnetic starter

• Horsepower: up to 7.5 HP (230 V)

• Voltage: 208‑240 V coil

• Frame: Box size 05

• Enclosure: Type 4X (Non‑Metallic)

• Current: 32‑50 A overload range

• Duty: Continuous

• Thermal Protection: Bimetallic overload relay (Class 10)

• Mounting: Surface‑mount box

• Frame Material: Plastic enclosure

• Number of Speeds: 1

• IP Code: Type 4X

• Certifications: UL508A, cULus

• Special Feature: Phase‑loss sensitivity protection; selectable manual or automatic RESET

This starter combines compact design with robust motor protection features, making it well‑suited for demanding industrial applications requiring reliable single‑phase motor control.
