WEG  |  SKU: EMN-019178

KT003502W01DOE, Rolled Steel Jet Pump - C type Premium Efficiency 3Hp 3505 Rpm 2P 56C 3Ph 575 V 60 Hz IC411 - TEFC - Footless

$586.96
shipping

Estimate shipping

Description

KT003502W01DOE,  Rolled Steel Jet Pump - C type Premium Efficiency 3Hp 3505 Rpm 2P 56C 3Ph 575 V 60 Hz IC411 - TEFC - Footless

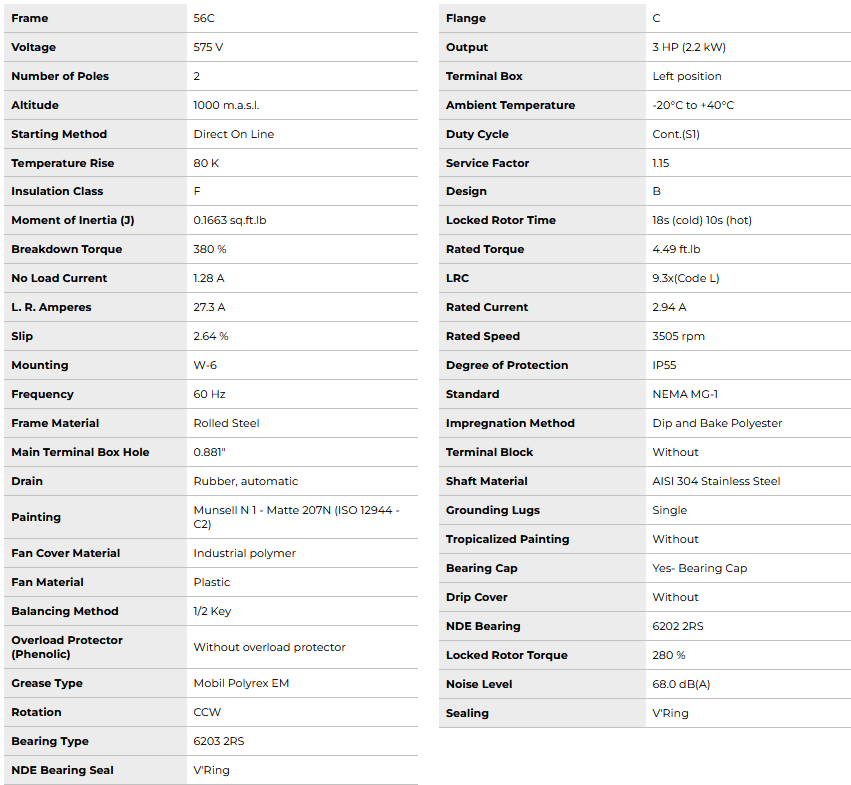

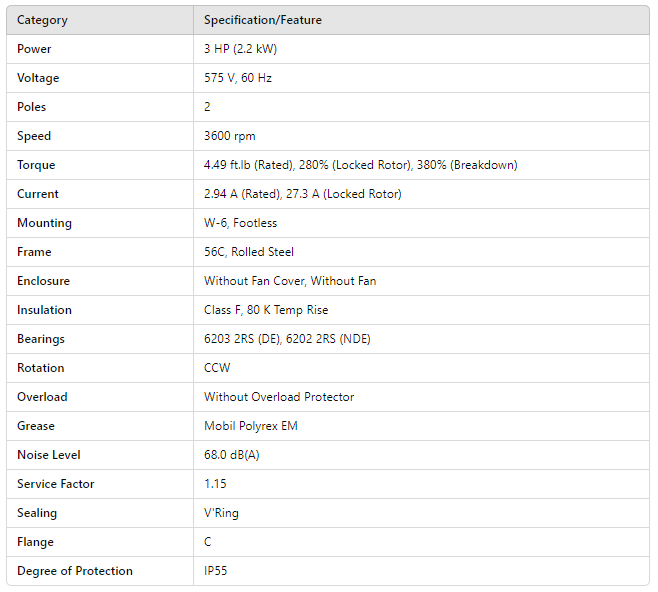

Category Specification/Feature
Power 3 HP (2.2 kW)
Voltage 575 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 4.49 ft.lb (Rated), 280% (Locked Rotor), 380% (Breakdown)
Current 2.94 A (Rated), 27.3 A (Locked Rotor)
Mounting W-6, Footless
Frame 56C, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 68.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange C
Degree of Protection IP55
