WEG  |  SKU: EMN-019112

KO003102W01DOE, Rolled Steel Jet Pump - C type 3Hp 3500 Rpm 2P 56C 1Ph 230 V 60 Hz IC01 - ODP - Footless

$578.51
shipping

Estimate shipping

Description

KO003102W01DOE,  Rolled Steel Jet Pump - C type 3Hp 3500 Rpm 2P 56C 1Ph 230 V 60 Hz IC01 - ODP - Footless

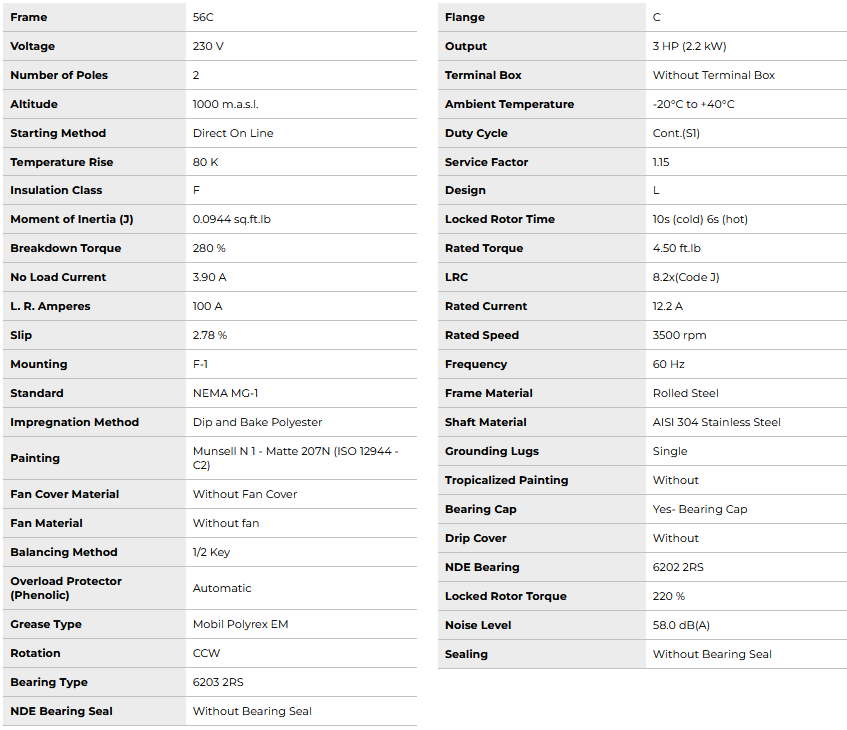

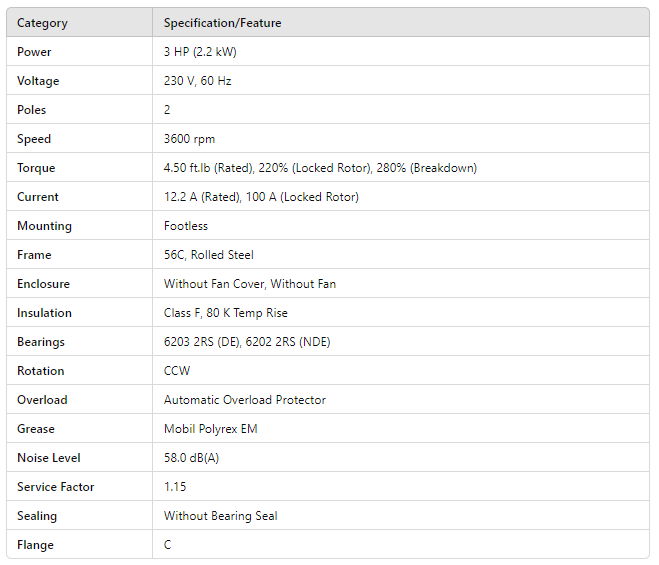

Category Specification/Feature
Power 3 HP (2.2 kW)
Voltage 230 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 4.50 ft.lb (Rated), 220% (Locked Rotor), 280% (Breakdown)
Current 12.2 A (Rated), 100 A (Locked Rotor)
Mounting Footless
Frame 56C, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Automatic Overload Protector
Grease Mobil Polyrex EM
Noise Level 58.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange C
