WEG  |  SKU: EMN-019153

JT000504W01DOE, Rolled Steel Jet Pump - J type Premium Efficiency 1Hp 1765 Rpm 4P 56J 3Ph 575 V 60 Hz IC411 - TEFC - Footless

$456.79
shipping

Estimate shipping

Description

JT000504W01DOE,  Rolled Steel Jet Pump - J type Premium Efficiency 1Hp 1765 Rpm 4P 56J 3Ph 575 V 60 Hz IC411 - TEFC - Footless

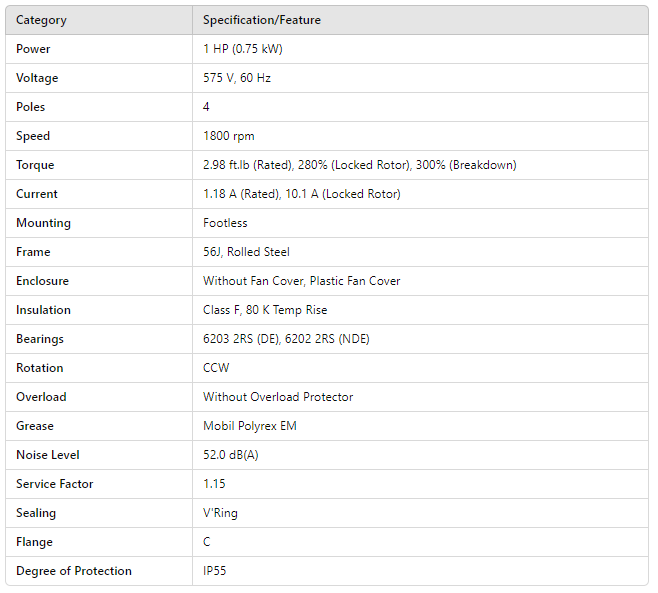

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 575 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 2.98 ft.lb (Rated), 280% (Locked Rotor), 300% (Breakdown)
Current 1.18 A (Rated), 10.1 A (Locked Rotor)
Mounting Footless
Frame 56J, Rolled Steel
Enclosure Without Fan Cover, Plastic Fan Cover
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange C
Degree of Protection IP55
