WEG  |  SKU: EMN-019148

JT.75404W01DOE, Rolled Steel Jet Pump - J type Premium Efficiency 0.75Hp 1760 Rpm 4P 56J 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless

$443.26
shipping

Estimate shipping

Description

JT.75404W01DOE,  Rolled Steel Jet Pump - J type Premium Efficiency 0.75Hp 1760 Rpm 4P 56J 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless

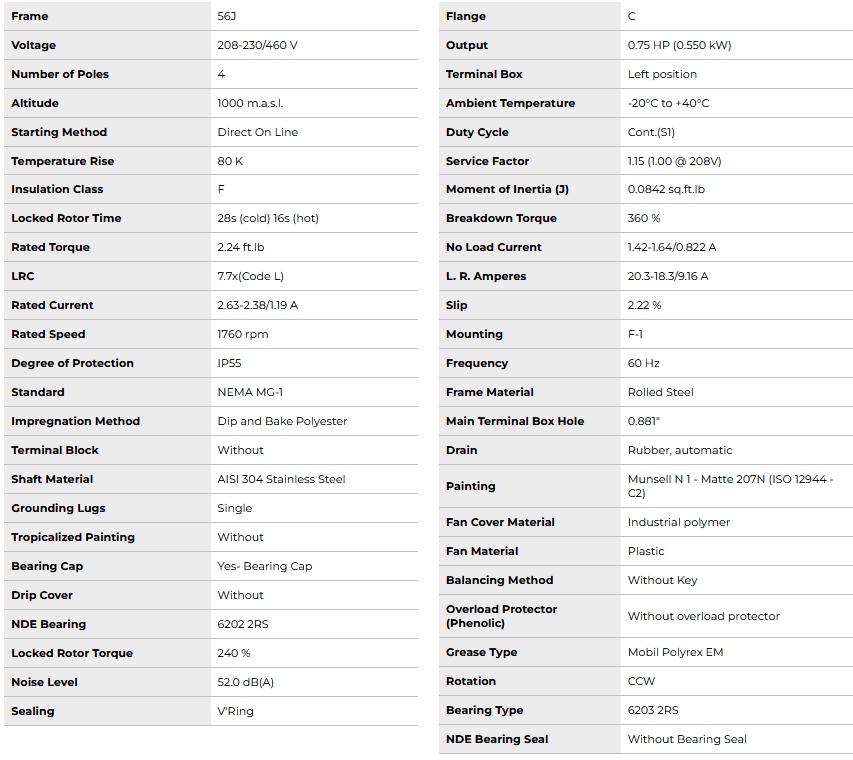

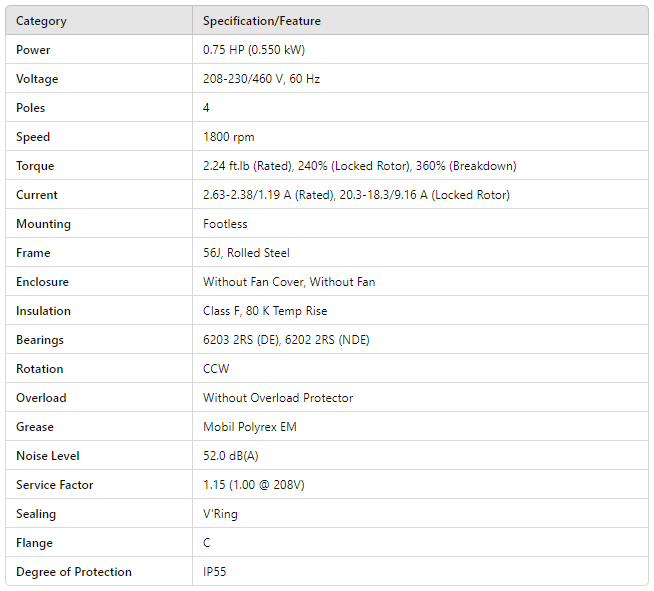

Category Specification/Feature
Power 0.75 HP (0.550 kW)
Voltage 208-230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 2.24 ft.lb (Rated), 240% (Locked Rotor), 360% (Breakdown)
Current 2.63-2.38/1.19 A (Rated), 20.3-18.3/9.16 A (Locked Rotor)
Mounting Footless
Frame 56J, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing V'Ring
Flange C
Degree of Protection IP55
