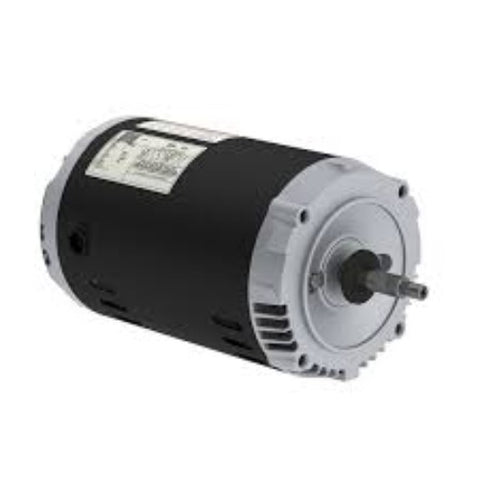

JO002502W01DOE, Weg, 2 Hp, 3510 Rpm, 575V, Fr:56J, ODP, Jet Pump,

$559.92

JO002502W01DOE, Weg, Replace Marathon RVM 56T34D15540A P, Century H629,

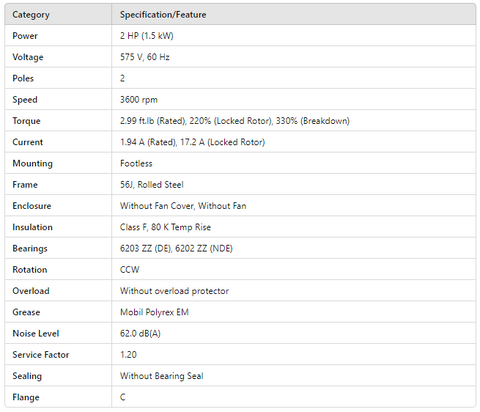

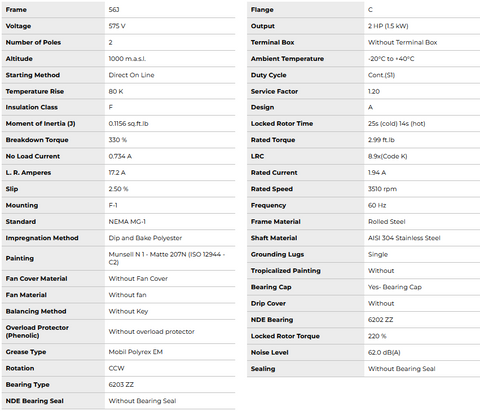

Category	Specification/Feature
Power	2 HP (1.5 kW)
Voltage	575 V, 60 Hz
Poles	2
Speed	3600 rpm
Torque	2.99 ft.lb (Rated), 220% (Locked Rotor), 330% (Breakdown)
Current	1.94 A (Rated), 17.2 A (Locked Rotor)
Mounting	Footless
Frame	56J, Rolled Steel
Enclosure	Without Fan Cover, Without Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6203 ZZ (DE), 6202 ZZ (NDE)
Rotation	CCW
Overload	Without overload protector
Grease	Mobil Polyrex EM
Noise Level	62.0 dB(A)
Service Factor	1.20
Sealing	Without Bearing Seal
Flange	C
