WEG  |  SKU: EMN-019117

JO000402W01DOE, Rolled Steel Jet Pump - J type Premium Efficiency 1Hp 3450 Rpm 2P W56J 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless

$384.09
shipping

Estimate shipping

Description

JO000402W01DOE,  Rolled Steel Jet Pump - J type Premium Efficiency 1Hp 3450 Rpm 2P W56J 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless

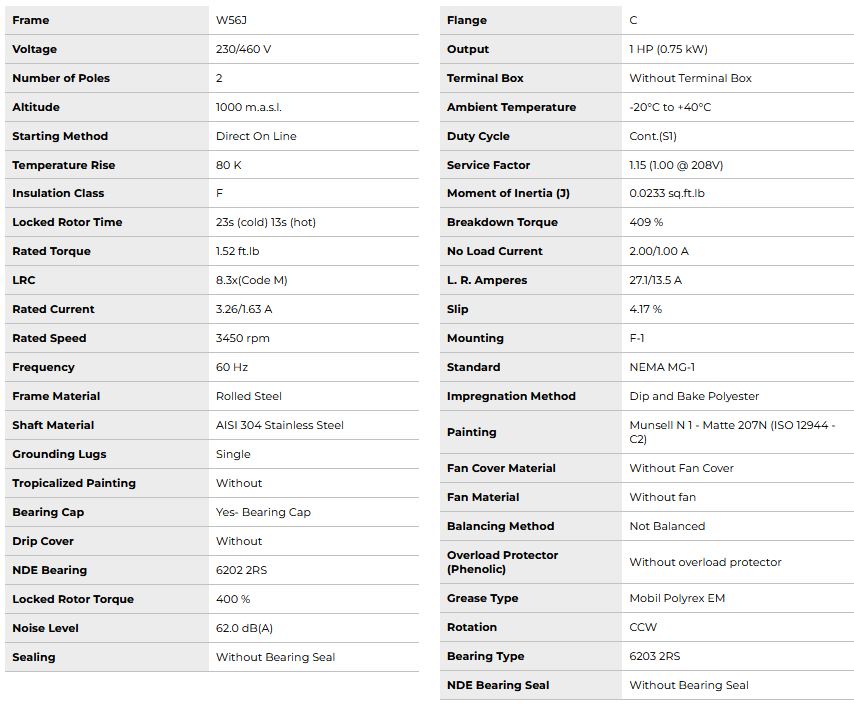

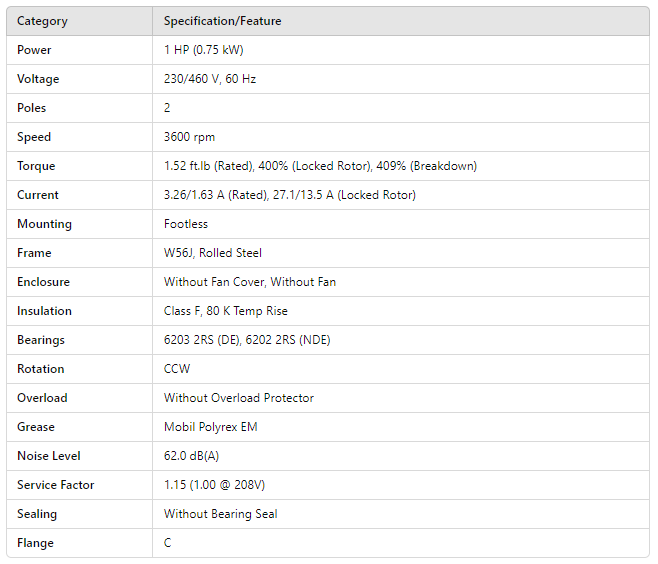

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 230/460 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 1.52 ft.lb (Rated), 400% (Locked Rotor), 409% (Breakdown)
Current 3.26/1.63 A (Rated), 27.1/13.5 A (Locked Rotor)
Mounting Footless
Frame W56J, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 62.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing Without Bearing Seal
Flange C
