WEG  |  SKU: EMN-016258

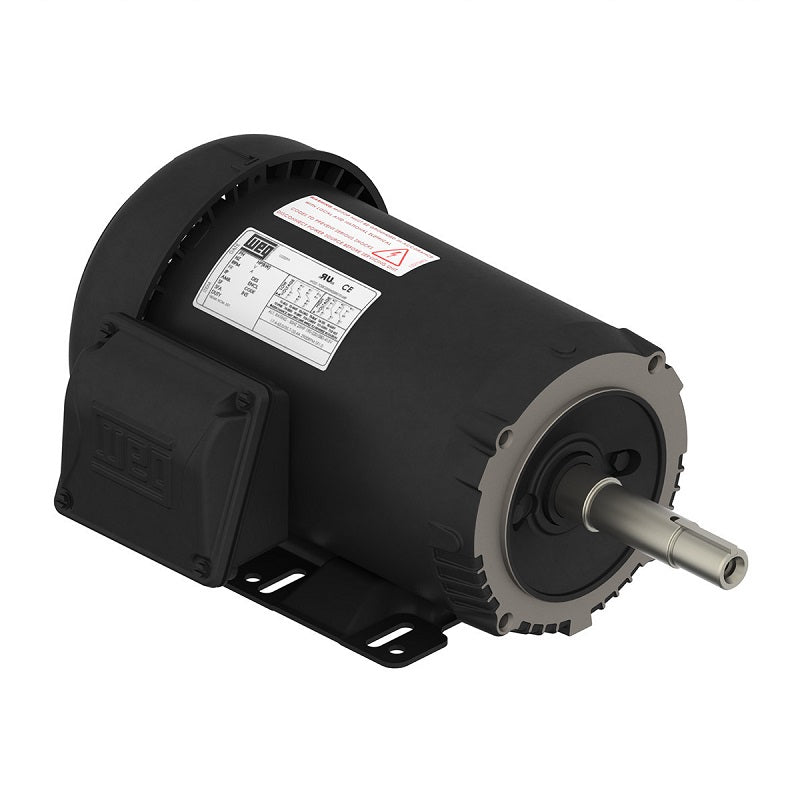

JM010502NPW01, Weg, 10 Hp, 3600 Rpm, 600V, 213/5JM, Pump, W01, JMPP-31

$1,550.91
shipping

Estimate shipping

Description

JM010502NPW01, WEG, REPLACE Maxmotion JMP-31, JMPP-31

Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 575 V
Rated current 9.36 A
L. R. Amperes 66.5 A
LRC 7.1x(Code H)
No load current 2.72 A
Rated torque 14.7 ft.lb
Locked rotor torque 210 %
Breakdown torque 290 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.4680 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.79  0.87  0.90

Features

Frame Material Roll Steel Heavy Gauge
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Mechanical Seal
