WEG  |  SKU: EMN-018943

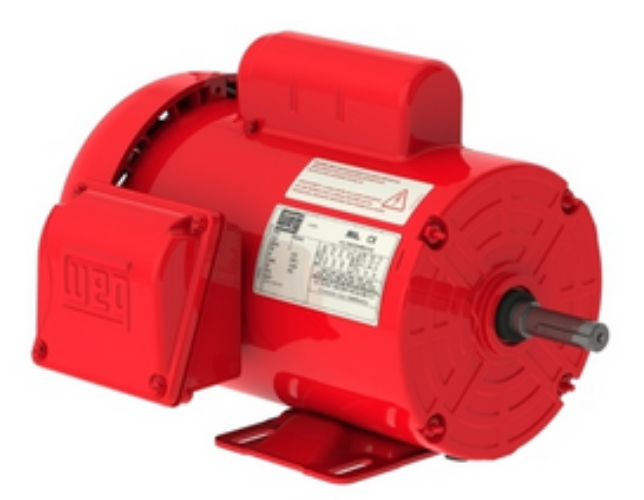

FD.33104W01, Rolled Steel 0.33Hp 1735 Rpm 4P W56 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted

$326.61
shipping

Estimate shipping

Description

FD.33104W01, Rolled Steel 0.33Hp 1735 Rpm 4P W56 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted

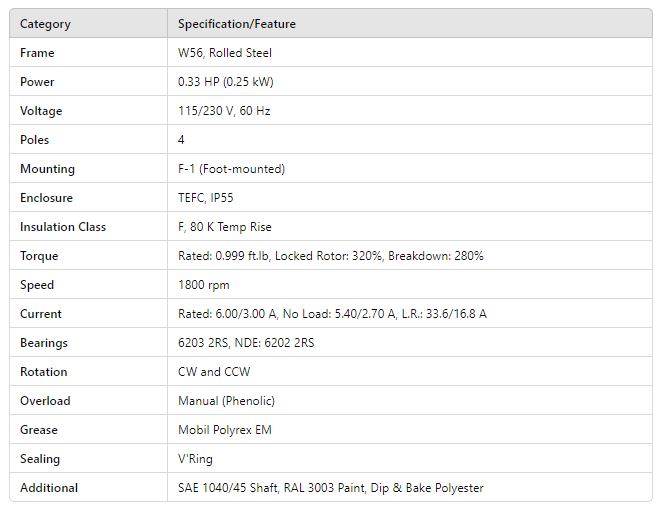

Category Specification/Feature
Frame W56, Rolled Steel
Power 0.33 HP (0.25 kW)
Voltage 115/230 V, 60 Hz
Poles 4
Mounting F-1 (Foot-mounted)
Enclosure TEFC, IP55
Insulation Class F, 80 K Temp Rise
Torque Rated: 0.999 ft.lb, Locked Rotor: 320%, Breakdown: 280%
Speed 1800 rpm
Current Rated: 6.00/3.00 A, No Load: 5.40/2.70 A, L.R.: 33.6/16.8 A
Bearings 6203 2RS, NDE: 6202 2RS
Rotation CW and CCW
Overload Manual (Phenolic)
Grease Mobil Polyrex EM
Sealing V'Ring
Additional SAE 1040/45 Shaft, RAL 3003 Paint, Dip & Bake Polyester
