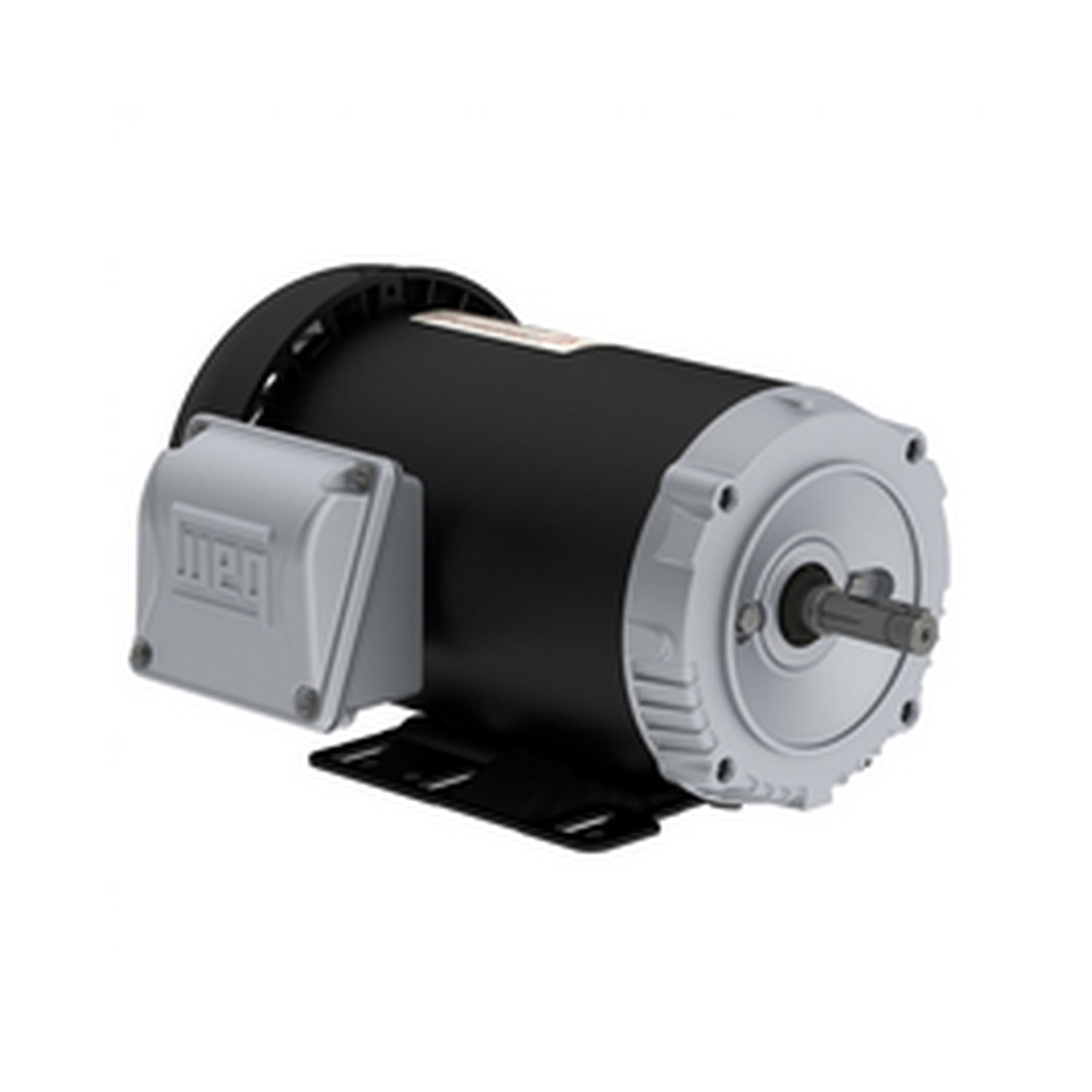

FC002404W01DOE, 2Hp, 1745 RPM, 230/460V, 3Ph, 60-50Hz, Frame 56HC, IP55, REV

FC002404W01DOE, 2Hp, 1745 RPM, 230/460V, 3Ph, 60-50Hz, Frame 56HC, IP55, REV

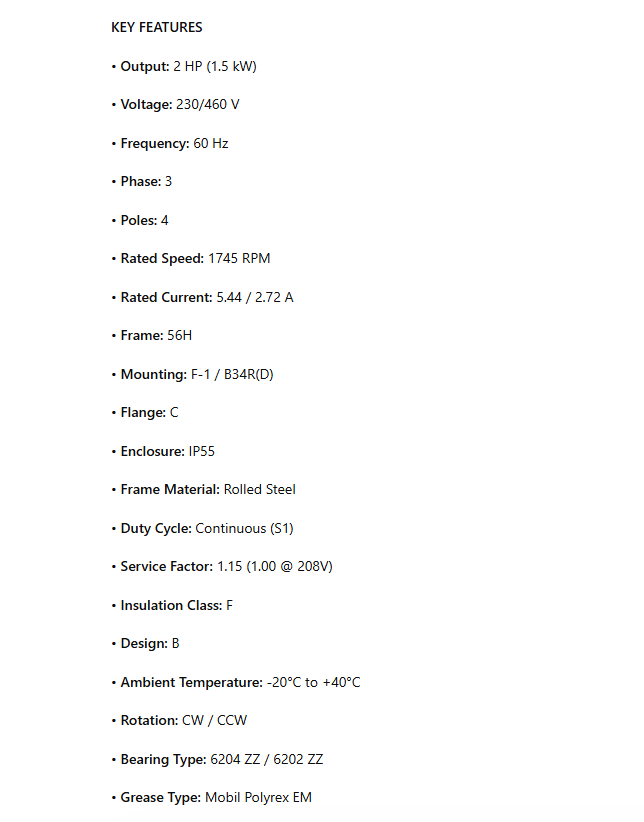

KEY FEATURES

• Output: 2 HP (1.5 kW)

• Voltage: 230/460 V

• Frequency: 60 Hz

• Phase: 3

• Poles: 4

• Rated Speed: 1745 RPM

• Rated Current: 5.44 / 2.72 A

• Frame: 56H

• Mounting: F-1 / B34R(D)

• Flange: C

• Enclosure: IP55

• Frame Material: Rolled Steel

• Duty Cycle: Continuous (S1)

• Service Factor: 1.15 (1.00 @ 208V)

• Insulation Class: F

• Design: B

• Ambient Temperature: -20°C to +40°C

• Rotation: CW / CCW

• Bearing Type: 6204 ZZ / 6202 ZZ

• Grease Type: Mobil Polyrex EM
