1 5
WEG  |  SKU: EMN-019020

DP003404NPW01, Rolled Steel NEMA Premium Efficiency 3Hp 1765 Rpm 4P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

$597.11
shipping

Estimate shipping

Description

DP003404NPW01,  Rolled Steel NEMA Premium Efficiency 3Hp 1765 Rpm 4P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

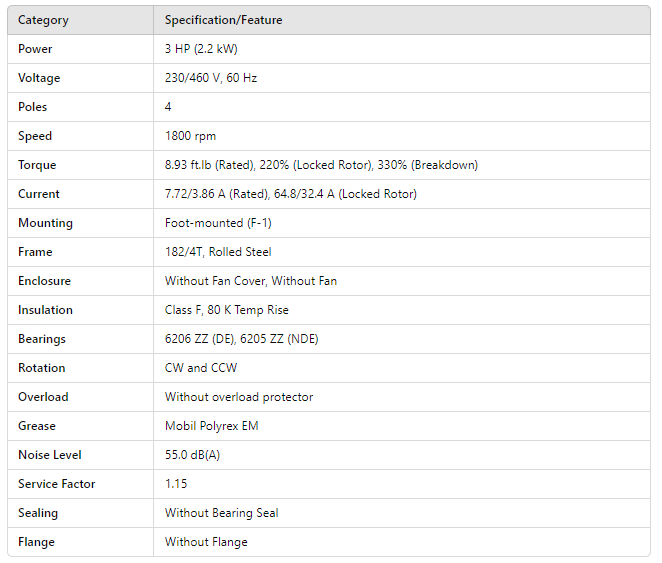

Category Specification/Feature
Power 3 HP (2.2 kW)
Voltage 230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 8.93 ft.lb (Rated), 220% (Locked Rotor), 330% (Breakdown)
Current 7.72/3.86 A (Rated), 64.8/32.4 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 182/4T, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6206 ZZ (DE), 6205 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 55.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange Without Flange
