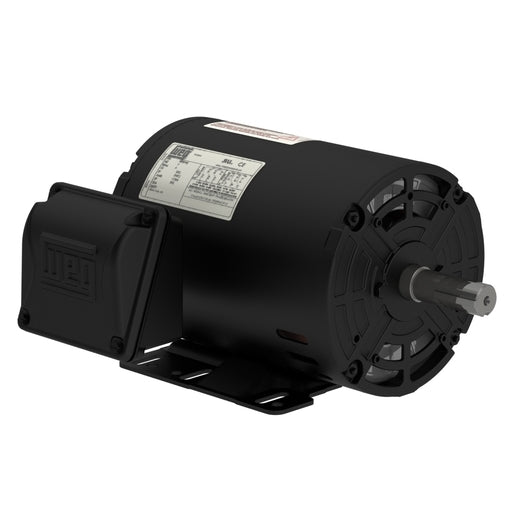

WEG  |  SKU: EMN-018211

DP002504NPW01, 2Hp, 1725 Rpm, 575 Volts, Frame: 145T, TEFC, Weg,W01,

$437.62
shipping

Estimate shipping

Description

DP002504NPW01, Weg W01

Category Specifications
Frame 143/5T
Voltage 575 V
Number of Poles 4
Altitude 1000 m.a.s.l.
Starting Method Direct On Line
Temperature Rise 80 K
Insulation Class F
Moment of Inertia (J) 0.1168 sq.ft.lb
Breakdown Torque 320 %
No Load Current 1.10 A
Locked Rotor Amperes 16.6 A
Slip 3.33 %
Mounting F-1
Standard NEMA MG-1
Impregnation Method Dip and Bake Polyester
Terminal Block Without
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material Without Fan Cover
Fan Material Without fan
Balancing Method 1/2 Key
Overload Protector (Phenolic) Without overload protector
Grease Type Mobil Polyrex EM
Rotation Both (CW and CCW)
Bearing Type 6205 ZZ
NDE Bearing Seal Without Bearing Seal
Flange Without
Output 2 HP (1.5 kW)
Terminal Box Left position
Ambient Temperature -20°C to +40°C
Duty Cycle Continuous (S1)
Service Factor 1.15
Design B
Locked Rotor Time 30s (cold) 17s (hot)
Rated Torque 6.04 ft.lb
LRC 7.7x (Code K)
Rated Current 2.15 A
Rated Speed 1740 rpm
Frequency 60 Hz
Frame Material Rolled Steel
Main Terminal Box Hole 1.118"
Shaft Material SAE 1040/45 Carbon Steel
Grounding Lugs Single
Tropicalized Painting Without
Bearing Cap No-Without Bearing Cap
Drip Cover Without
NDE Bearing 6203 ZZ
Locked Rotor Torque 260 %
Noise Level 52.0 dB(A)
Sealing Without Bearing Seal

DP002504NPW01, Weg W01 Category Specifications, Frame 143/5T, Voltage, 575 V Number of Poles 4
