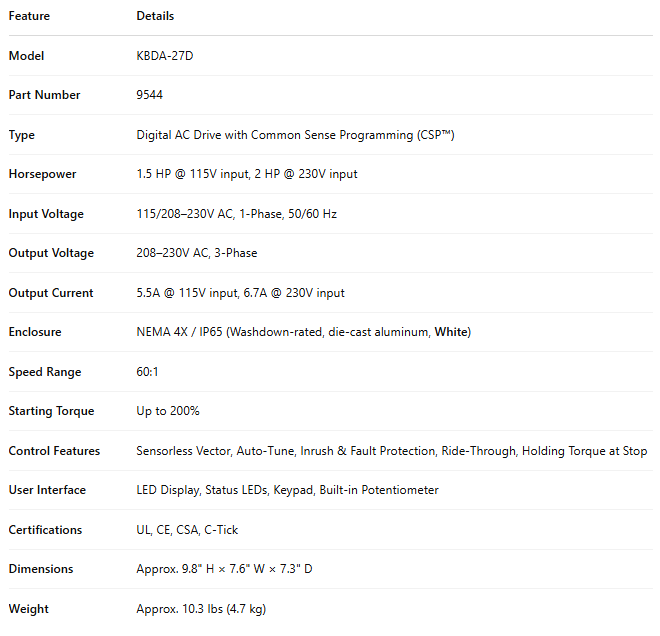

KBDA-27D, Digital AC Drive 1.5Hp-2Hp 5.5A-6.7A 115/208-230V 1PH Input 208-230V 3PH Output NEMA 4X Enclosure - White

• Model: KBDA-27D

• Part Number: 9544

• Type: Digital AC Drive with CSP™

Horsepower Ratings:

• 1.5 HP @ 115V input

• 2 HP @ 230V input

Electrical Specifications:

• Input Voltage: 115/208–230V AC, Single-Phase, 50/60 Hz

• Output Voltage: 208–230V AC, Three-Phase

• Output Current: 5.5A @ 115V input, 6.7A @ 230V input

Performance:

• Speed Range: 60:1

• Starting Torque: Up to 200%

Control Features:

• Sensorless Vector Control

• Auto-Tune

• Inrush Current & Fault Protection

• Ride-Through Capability

• Holding Torque at Stop

User Interface:

• LED display

• Status LEDs

• Keypad

• Built-in speed potentiometer

Enclosure & Design:

• Enclosure: NEMA 4X / IP65, washdown-rated

• Material: Die-cast aluminum, white finish

• Dimensions: Approx. 9.8" (H) × 7.6" (W) × 7.3" (D)

• Weight: Approx. 10.3 lbs (4.7 kg)

Certifications:

• UL

• CE

• CSA

• C-Tick

This drive features sensorless flux vector control with static auto-tune, providing excellent speed regulation and high torque over a wide speed range. It includes electronic inrush current limit (EICL™) protection to prevent harmful AC line inrush current during startup. The NEMA 4X (IP65) enclosure ensures the drive is suitable for washdown and watertight applications.
