E-Motor Nations  |  SKU: EMN-019604

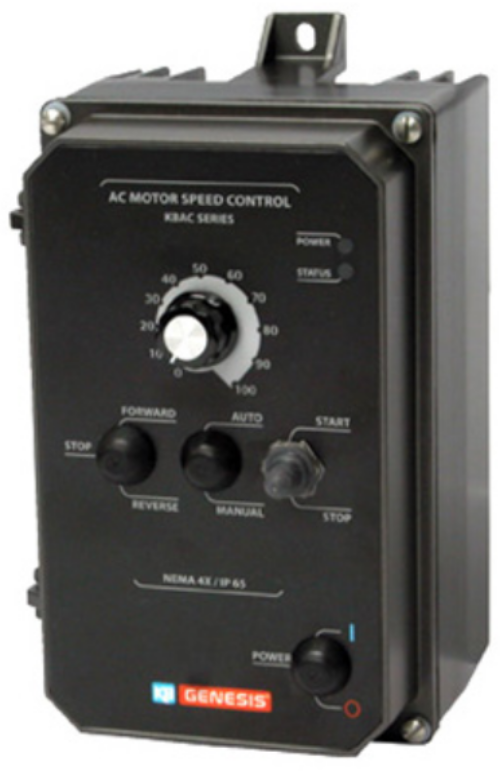

9987, (KBAC-24D) Hybrid AC Drive 1Hp 3.6A 115/230V 1PH Input 230V 3PH Output NEMA 4X Enclosure - Gray W/GFCI SOFTWARE

$716.89
shipping

Estimate shipping

Description

9987, (KBAC-24D) Hybrid AC Drive 1Hp 3.6A 115/230V 1PH Input 230V 3PH Output NEMA 4X Enclosure - Gray W/GFCI SOFTWARE

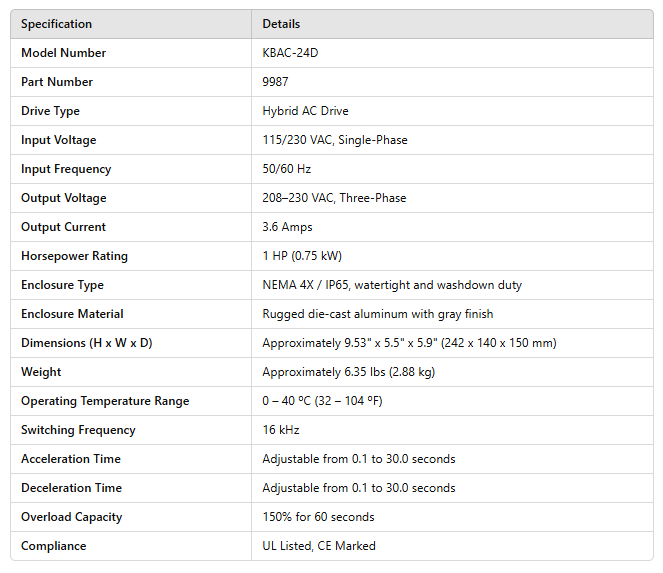

Specification Details
Model Number KBAC-24D
Part Number 9987
Drive Type Hybrid AC Drive
Input Voltage 115/230 VAC, Single-Phase
Input Frequency 50/60 Hz
Output Voltage 208–230 VAC, Three-Phase
Output Current 3.6 Amps
Horsepower Rating 1 HP (0.75 kW)
Enclosure Type NEMA 4X / IP65, watertight and washdown duty
Enclosure Material Rugged die-cast aluminum with gray finish
Dimensions (H x W x D) Approximately 9.53" x 5.5" x 5.9" (242 x 140 x 150 mm)
Weight Approximately 6.35 lbs (2.88 kg)
Operating Temperature Range 0 – 40 ºC (32 – 104 ºF)
Switching Frequency 16 kHz
Acceleration Time Adjustable from 0.1 to 30.0 seconds
Deceleration Time Adjustable from 0.1 to 30.0 seconds
Overload Capacity 150% for 60 seconds
Compliance UL Listed, CE Marked

This drive features sensorless flux vector control with static auto-tune, providing excellent speed regulation and high torque over a wide speed range. It includes electronic inrush current limit (EICL™) protection to prevent harmful AC line inrush current during startup. The NEMA 4X (IP65) enclosure ensures the drive is suitable for washdown and watertight applications.
