XS1CA1J, EXPLOSION PROOF, 1Hp, 3450 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56, IP54, CH63AAA1000015B

XS1CA1J, EXPLOSION PROOF, 1Hp, 3450 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56, IP54, CH63AAA1000015B

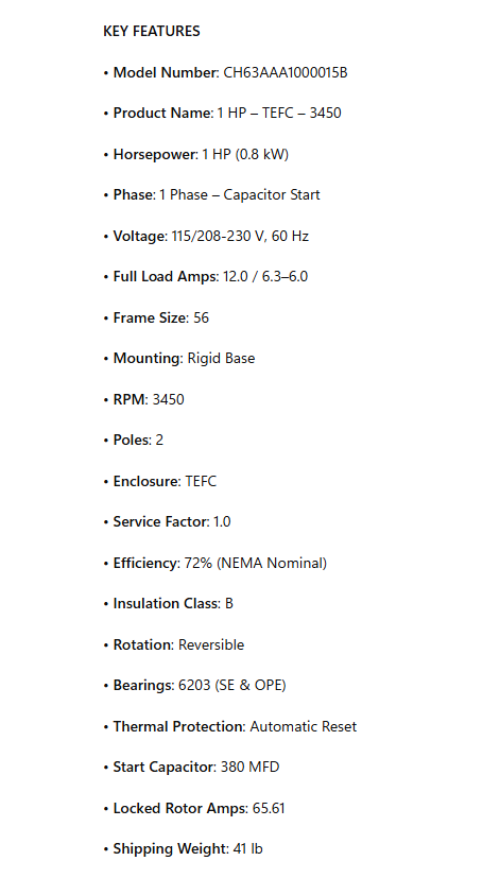

KEY FEATURES

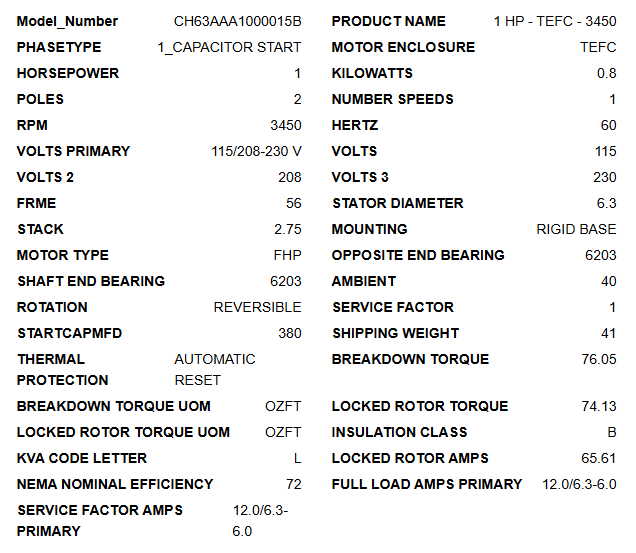

• Model Number: CH63AAA1000015B

• Product Name: 1 HP – TEFC – 3450

• Horsepower: 1 HP (0.8 kW)

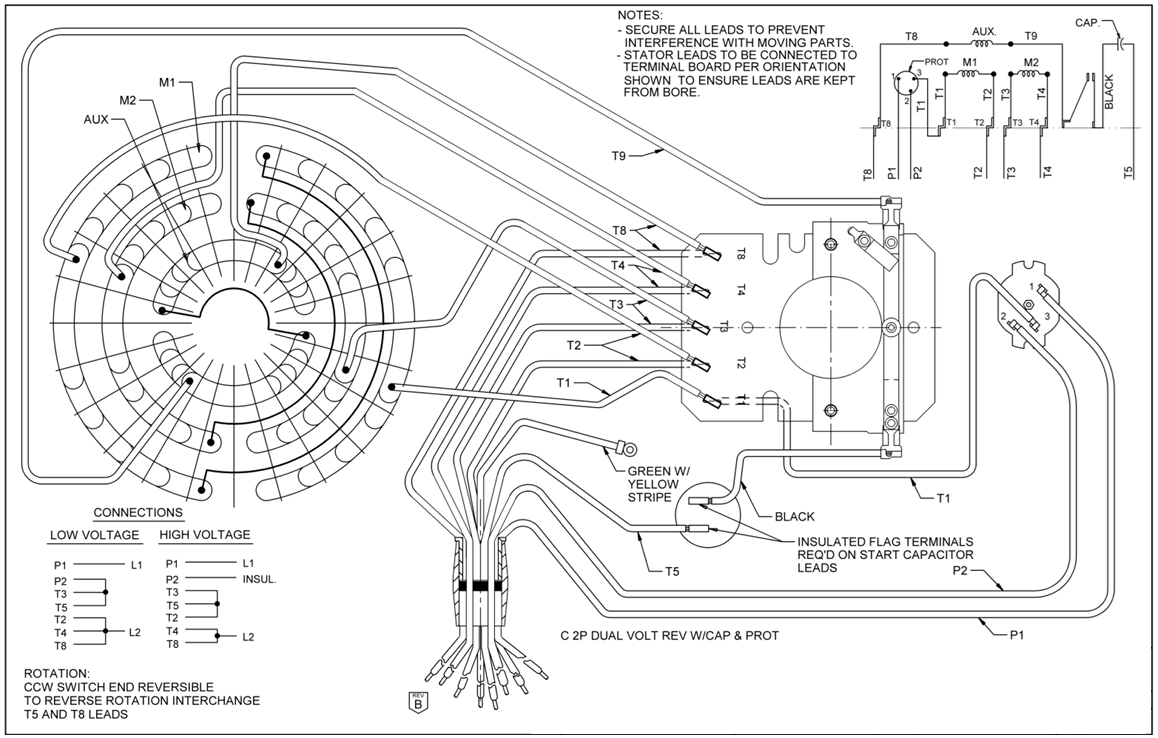

• Phase: 1 Phase – Capacitor Start

• Voltage: 115/208-230 V, 60 Hz

• Full Load Amps: 12.0 / 6.3–6.0

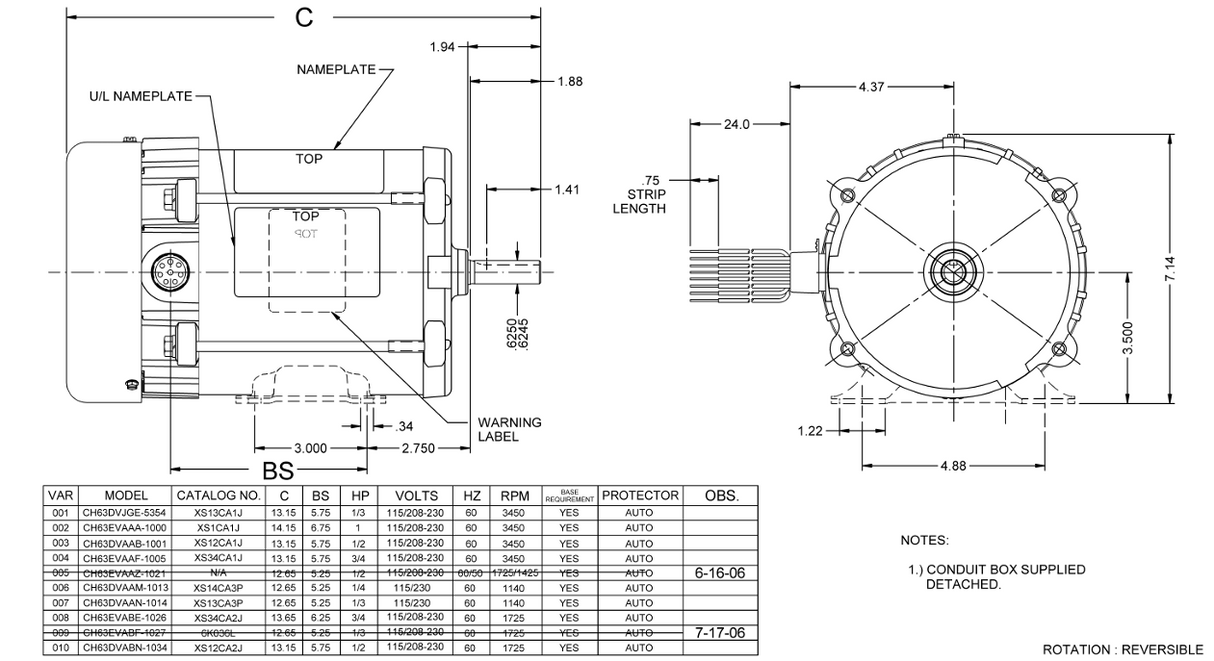

• Frame Size: 56

• Mounting: Rigid Base

• RPM: 3450

• Poles: 2

• Enclosure: TEFC

• Service Factor: 1.0

• Efficiency: 72% (NEMA Nominal)

• Insulation Class: B

• Rotation: Reversible

• Bearings: 6203 (SE & OPE)

• Thermal Protection: Automatic Reset

• Start Capacitor: 380 MFD

• Locked Rotor Amps: 65.61

• Shipping Weight: 41 lb
