US MOTORS | SKU:
EMN-017145

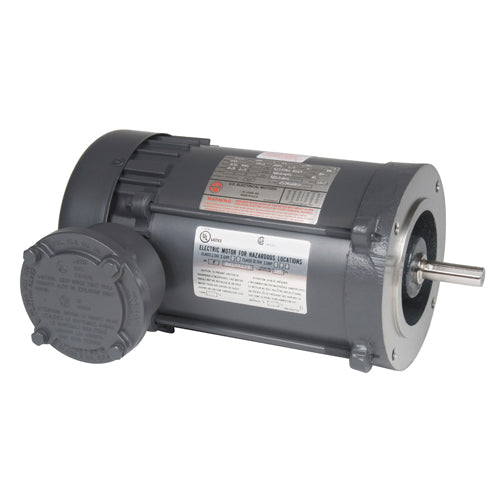

XS12CA2JCR, Us Motors, 1/2 Hp, 1750 Rpm, 115/230V, Fr:56C, Explosion Proof,
Regular price
$795.06
Unit price
/
Unavailable
XS12CA2JCR, Us Motors, 1/2 Hp, 1750 Rpm, 115/230V, Fr:56C, Explosion Proof, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
XS12CA2JCR, Us Motors, 1/2 Hp, 1750 Rpm, 115/230V, Fr:56C, Explosio...
Regular price
$795.06
Unit price
/
Unavailable
Description
Description
XS12CA2JCR, Us Motors, CH63ABK1031015B,
| Model_Number: | CH63ABK1031015B |
| PRODUCT NAME: | .5 HP - TEFC - 1725 |
| PHASETYPE: | 1_CAPACITOR START |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | .5 |
| KILOWATTS: | 0.4 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115/208-230 V |
| VOLTS : | 115 |
| VOLTS 2: | 208 |
| VOLTS 3: | 230 |
| FRME : | 56 |
| SHAFT CODE: | C |
| STATOR DIAMETER: | 6.3 |
| STACK: | 1.625 |
| MOUNTING: | C-FACE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6205 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | REVERSIBLE |
| SERVICE FACTOR: | 1 |
| STARTCAPMFD: | 473 |
| SHIPPING WEIGHT: | 32 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 87.87 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 105.5 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | M |
| LOCKED ROTOR AMPS: | 41.39 |
| NEMA NOMINAL EFFICIENCY: | 62.9 |
| FULL LOAD AMPS PRIMARY: | 9.8/4.9-4.9 |
- Hazardous Location, Explosion Proof motors
- Class I (Group C & D) Class II (Group E F & G)
- C Face Footless
