XS12CA2JCR, EXPLOSION PROOF, 1/2Hp, 1725 RPM, 115/208-230V, 1PH, 60Hz, EPFC, Frame 56c, IP54, CH63ABK1031015B

XS12CA2JCR, EXPLOSION PROOF, 1/2Hp, 1725 RPM, 115/208-230V, 1PH, 60Hz, EPFC, Frame 56c, IP54, CH63ABK1031015B

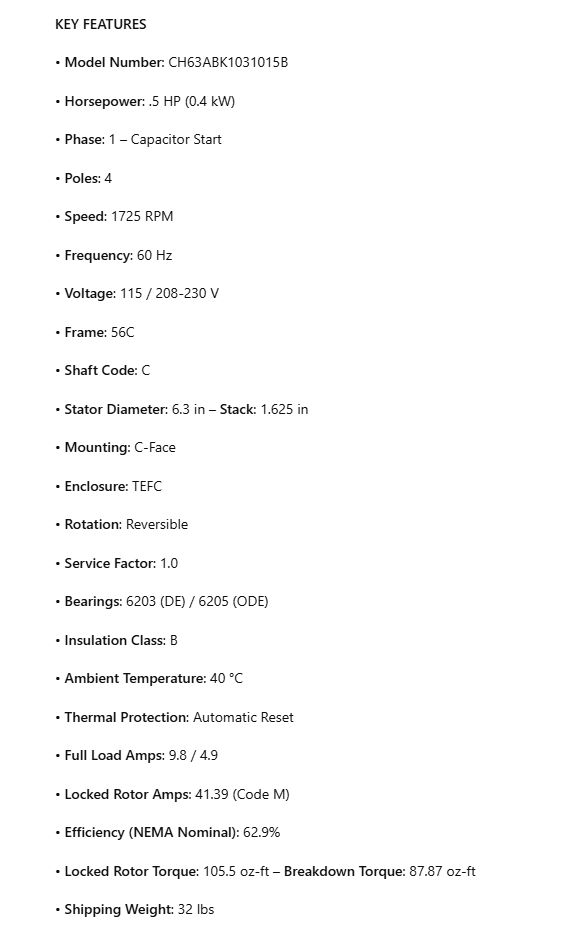

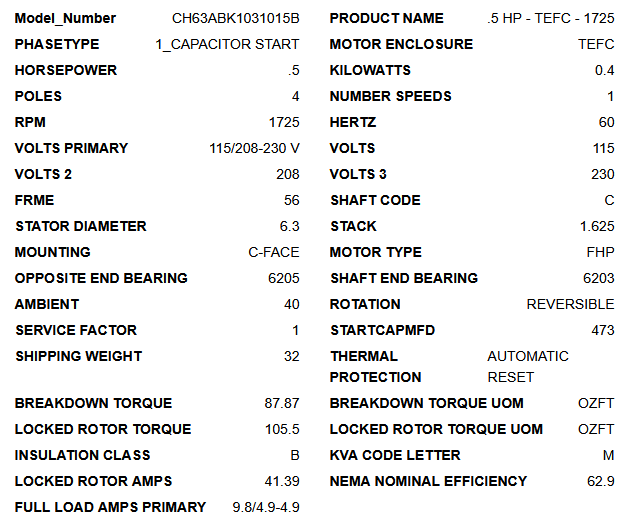

KEY FEATURES

• Model Number: CH63ABK1031015B

• Horsepower: .5 HP (0.4 kW)

• Phase: 1 – Capacitor Start

• Poles: 4

• Speed: 1725 RPM

• Frequency: 60 Hz

• Voltage: 115 / 208-230 V

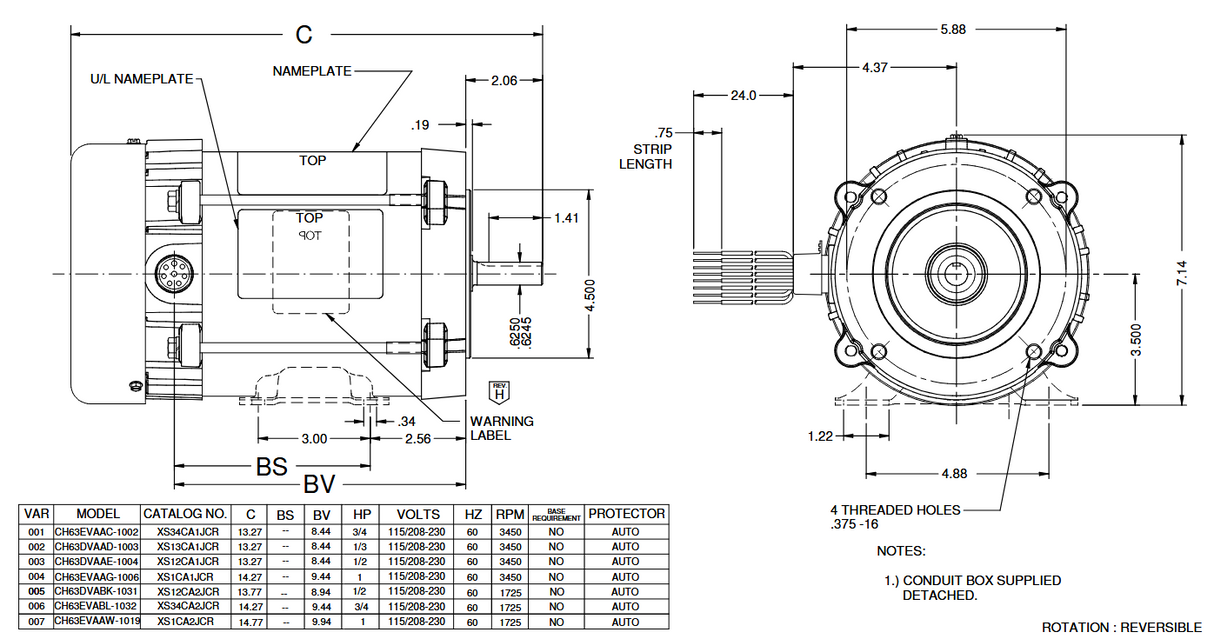

• Frame: 56C

• Shaft Code: C

• Stator Diameter: 6.3 in – Stack: 1.625 in

• Mounting: C-Face

• Enclosure: TEFC

• Rotation: Reversible

• Service Factor: 1.0

• Bearings: 6203 (DE) / 6205 (ODE)

• Insulation Class: B

• Ambient Temperature: 40 °C

• Thermal Protection: Automatic Reset

• Full Load Amps: 9.8 / 4.9

• Locked Rotor Amps: 41.39 (Code M)

• Efficiency (NEMA Nominal): 62.9%

• Locked Rotor Torque: 105.5 oz-ft – Breakdown Torque: 87.87 oz-ft

• Shipping Weight: 32 lbs
