UN12T2BC, ACCU-TORQ VECTOR DUTY, 1/2Hp, 1750 RPM, 230/460V, 3PH, 60Hz, TENV, Frame 56C, FD89

UN12T2BC, ACCU-TORQ VECTOR DUTY, 1/2Hp, 1750 RPM, 230/460V, 3PH, 60Hz, TENV, Frame 56C, FD89

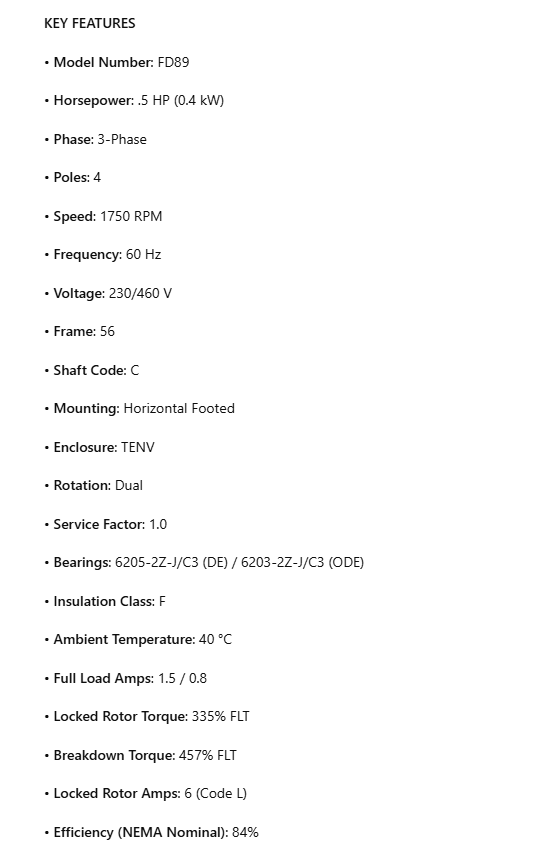

KEY FEATURES

• Model Number: FD89

• Horsepower: .5 HP (0.4 kW)

• Phase: 3-Phase

• Poles: 4

• Speed: 1750 RPM

• Frequency: 60 Hz

• Voltage: 230/460 V

• Frame: 56

• Shaft Code: C

• Mounting: Horizontal Footed

• Enclosure: TENV

• Rotation: Dual

• Service Factor: 1.0

• Bearings: 6205-2Z-J/C3 (DE) / 6203-2Z-J/C3 (ODE)

• Insulation Class: F

• Ambient Temperature: 40 °C

• Full Load Amps: 1.5 / 0.8

• Locked Rotor Torque: 335% FLT

• Breakdown Torque: 457% FLT

• Locked Rotor Amps: 6 (Code L)

• Efficiency (NEMA Nominal): 84%
