US MOTORS | SKU:
EMN-018338

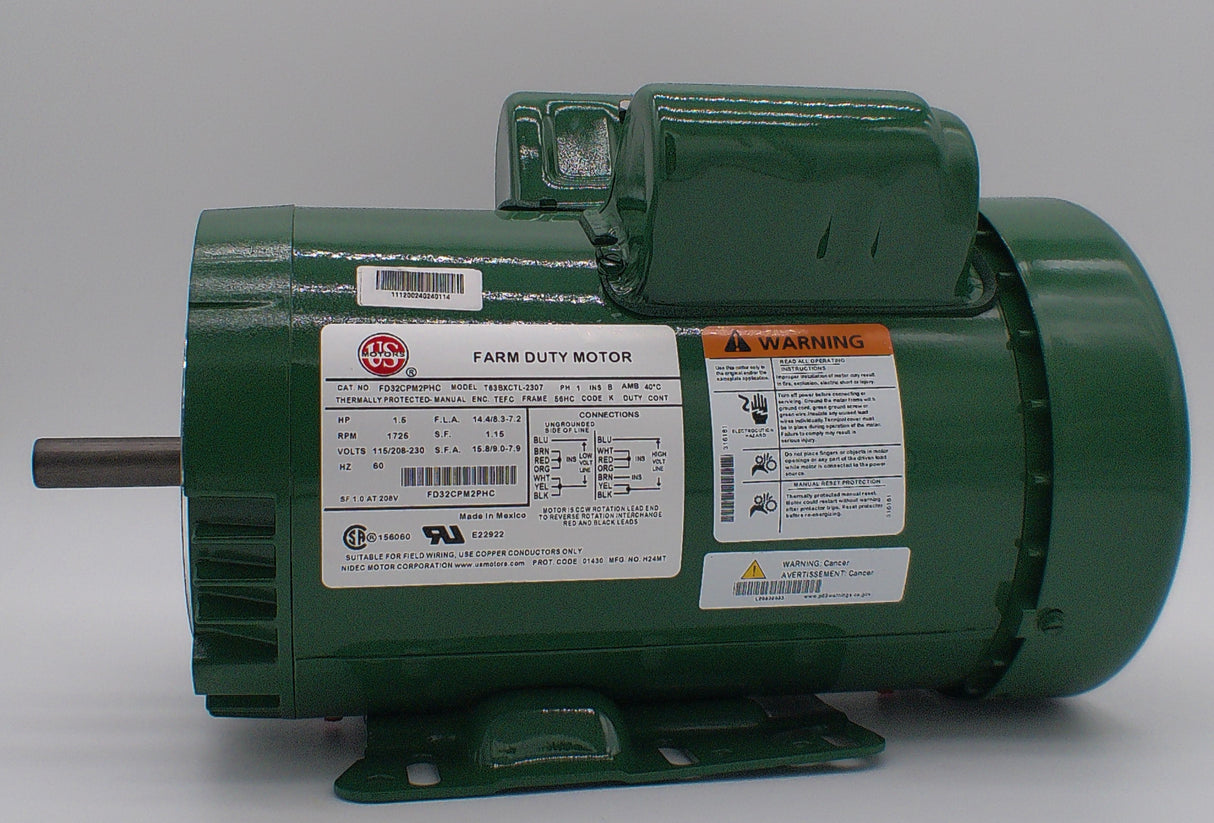

FD32CM2PHC, Nidec, 1.5 Hp, 1725 Rpm, 115-208/230V, Frame: 56HC, TEFC,
Regular price
$393.67
Unit price
/
Unavailable
FD32CM2PHC, Nidec, 1.5 Hp, 1725 Rpm, 115-208/230V, Frame: 56HC, TEFC, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
FD32CM2PHC, Nidec, 1.5 Hp, 1725 Rpm, 115-208/230V, Frame: 56HC, TEFC,
Regular price
$393.67
Unit price
/
Unavailable
Description
Description
FD32CM2PHC, T063BJB1911015B, Nidec
| Specification | Details |
|---|---|
| Output HP | 1.50 & 1 Hp |
| Output KW | 1.1 & 0.75 kW |
| Frequency | 60 & 50 Hz |
| Voltage | 115/208-230 V |
| Current | 15.2/8.2-7.6 & 15.6/7.8 A |
| Speed | 1725 & 1425 rpm |
| Service Factor | 11.15 & 1.0 |
| Phase | 1 |
| Efficiency | 80% & 71% |
| Power Factor | 80 |
| Duty | Continuous |
| Insulation Class | B |
| Design Code | N |
| KVA Code | J |
| Frame | 56HC |
| Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| Thermal Protection | Manual |
| Ambient Temperature | 40 °C |
| Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Size | 6203 |
| UL | Recognized (Not Protector) |
| CSA | Y |
| CE | Y |
| IP Code | IP43 |
| Number of Speeds | 1 |
