US MOTORS | SKU:
EMN-018337
722P, Nidec, 1/6Hp, 1550 Rpm, 208-230 Volts, Frame:42Y, Enclosure:ODP,
Regular price
$379.00
Unit price
/
Unavailable
722P, Nidec, 1/6Hp, 1550 Rpm, 208-230 Volts, Frame:42Y, Enclosure:ODP, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
722P, Nidec, 1/6Hp, 1550 Rpm, 208-230 Volts, Frame:42Y, Enclosure:ODP,
Regular price
$379.00
Unit price
/
Unavailable
Description
Description

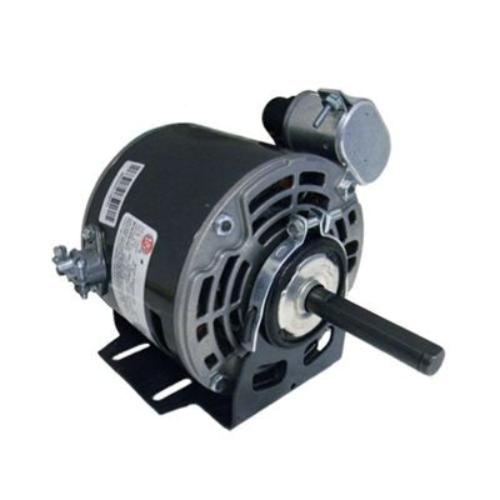

722P, Model K048WHE4395013B, Nidec,

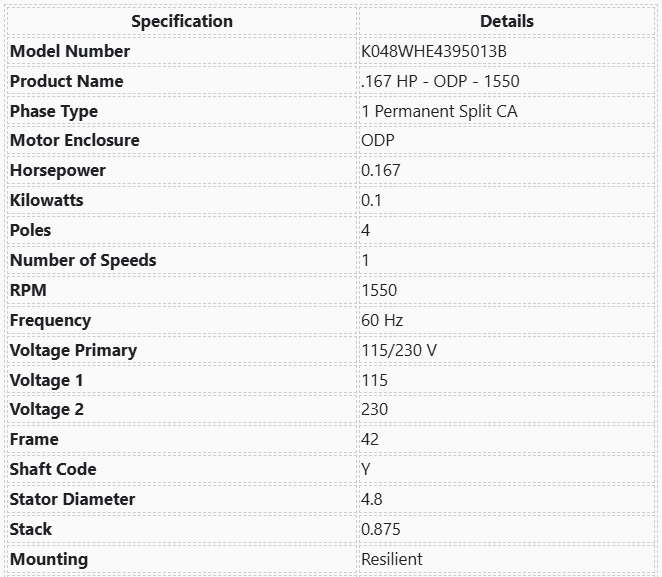

| Specification | Details |
|---|---|
| Model Number | K048WHE4395013B |
| Product Name | .167 HP - ODP - 1550 |
| Phase Type | 1 Permanent Split CA |
| Motor Enclosure | ODP |
| Horsepower | 0.167 |
| Kilowatts | 0.1 |
| Poles | 4 |
| Number of Speeds | 1 |
| RPM | 1550 |
| Frequency | 60 Hz |
| Voltage Primary | 115/230 V |
| Voltage 1 | 115 |
| Voltage 2 | 230 |
| Frame | 42 |
| Shaft Code | Y |
| Stator Diameter | 4.8 |
| Stack | 0.875 |
| Mounting | Resilient |

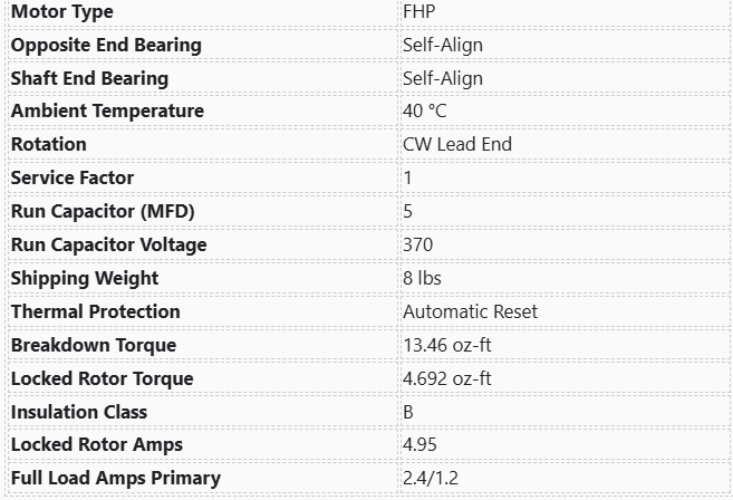

| Motor Type | FHP |
| Opposite End Bearing | Self-Align |
| Shaft End Bearing | Self-Align |
| Ambient Temperature | 40 °C |
| Rotation | CW Lead End |
| Service Factor | 1 |
| Run Capacitor (MFD) | 5 |
| Run Capacitor Voltage | 370 |
| Shipping Weight | 8 lbs |
| Thermal Protection | Automatic Reset |
| Breakdown Torque | 13.46 oz-ft |
| Locked Rotor Torque | 4.692 oz-ft |
| Insulation Class | B |
| Locked Rotor Amps | 4.95 |
| Full Load Amps Primary | 2.4/1.2 |
