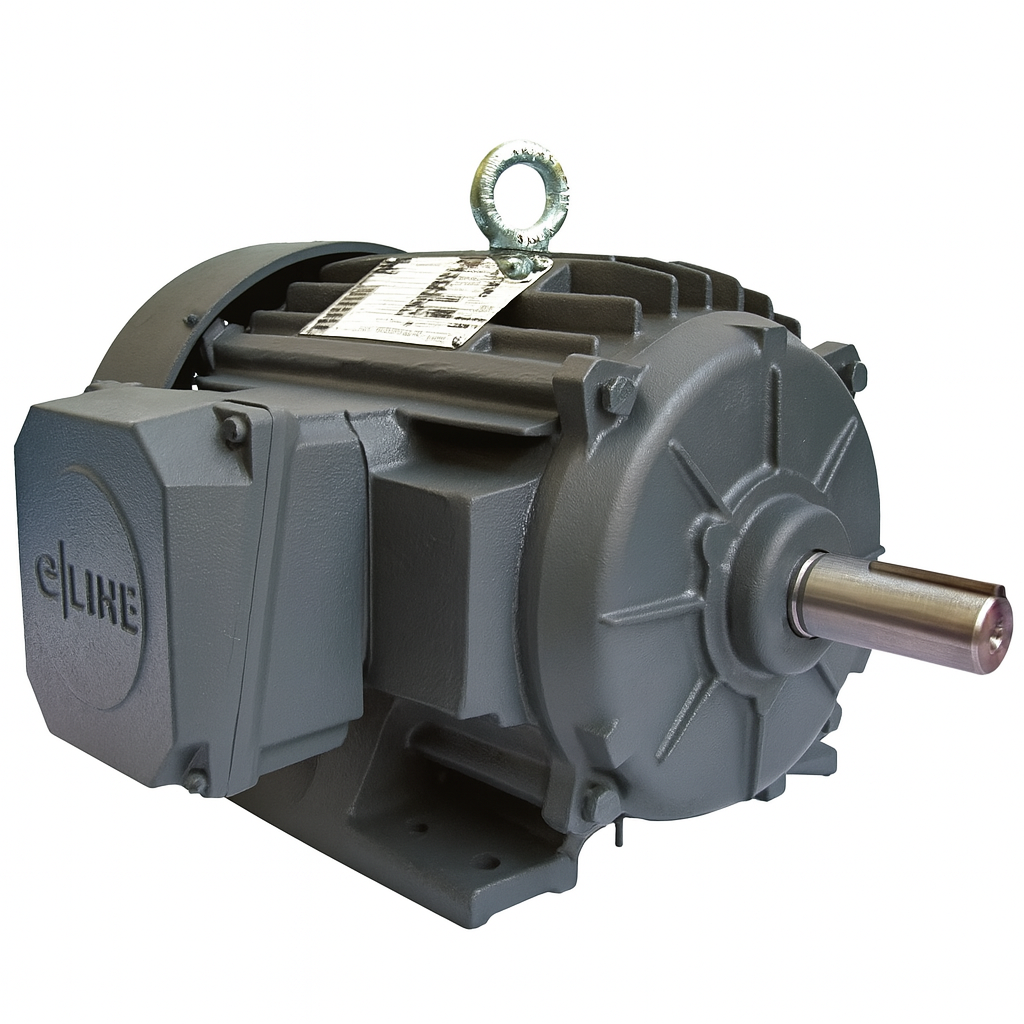

ELP15P2GCLB, Us motors, 15 Hp, 1800 Rpm, 575 Volts, Frame:254TC, Tefc,

ELP15P2GCLB, Us motors

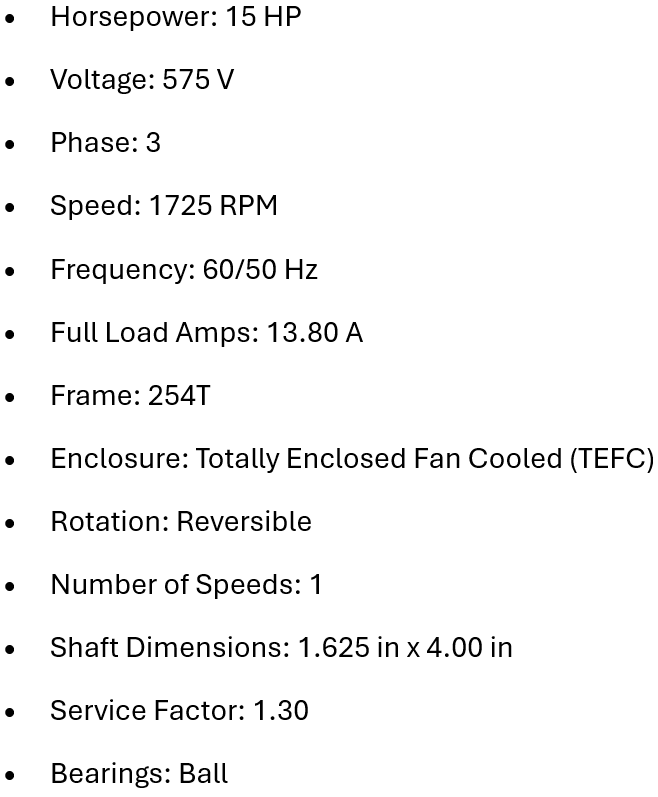

• Horsepower: 15 HP

• Voltage: 575 V

• Phase: 3

• Speed: 1725 RPM

• Frequency: 60/50 Hz

• Full Load Amps: 13.80 A

• Frame: 254T

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Rotation: Reversible

• Number of Speeds: 1

• Shaft Dimensions: 1.625 in x 4.00 in

• Service Factor: 1.30

• Bearings: Ball

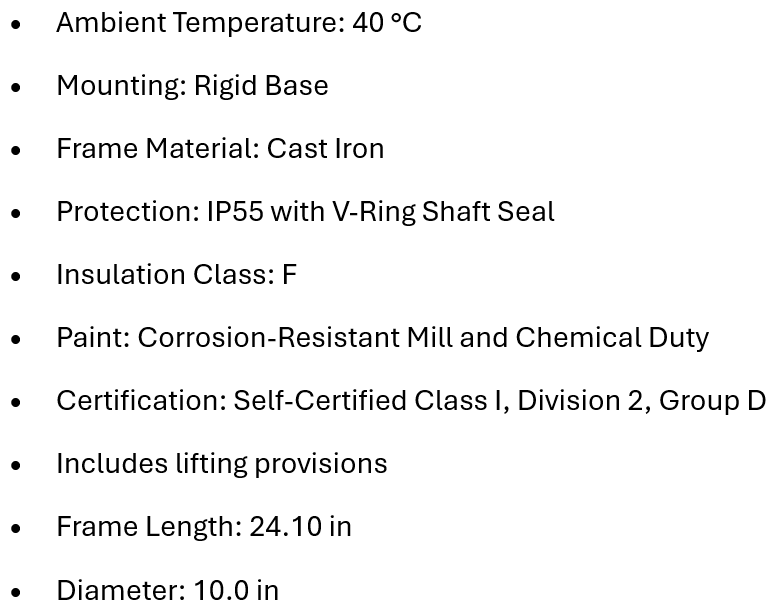

• Ambient Temperature: 40 °C

• Mounting: Rigid Base

• Frame Material: Cast Iron

• Protection: IP55 with V-Ring Shaft Seal

• Insulation Class: F

• Paint: Corrosion-Resistant Mill and Chemical Duty

• Certification: Self-Certified Class I, Division 2, Group D

• Includes lifting provisions

• Frame Length: 24.10 in

• Diameter: 10.0 in
