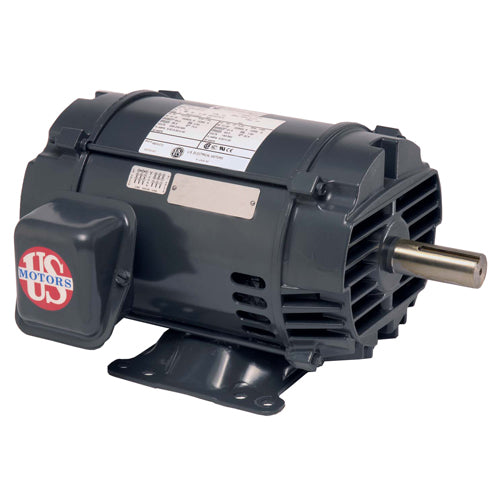

US MOTORS  |  SKU: EMN-017353

D34P2GH,Us motors,3/4Hp,1725 Rpm,575V,Fr:56H, 3PH,P063FPE1727015B,ODP,

$312.80
shipping

Estimate shipping

Description

D34P2GH,Us motors,P063FPE1727015B,Replace MaxMotion MKR-344,MKR-344W,

Model_Number: P063FPE1727015B
PRODUCT NAME: .75 HP - ODP - 1725
PHASETYPE: 3_POLYPHASE
MOTOR ENCLOSURE: ODP
HORSEPOWER: .75
KILOWATTS: 0.6
POLES: 4
NUMBER SPEEDS: 1
RPM: 1725
HERTZ: 60
VOLTS PRIMARY: 575 V
VOLTS : 575
FRME : 56
SHAFT CODE: H
STATOR DIAMETER: 6.3
STACK: 1.75
MOUNTING: RESILIENT
MOTOR TYPE: FHP
OPPOSITE END BEARING: 6203
SHAFT END BEARING: 6203
AMBIENT: 40
ROTATION: REVERSIBLE
SERVICE FACTOR: 1.25
SHIPPING WEIGHT: 26
THERMAL PROTECTION: NONE
BREAKDOWN TORQUE: 174.2
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 121.1
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
KVA CODE LETTER: L
LOCKED ROTOR AMPS: 7.37
NEMA NOMINAL EFFICIENCY: 85.5
FULL LOAD AMPS PRIMARY: .93
SERVICE FACTOR AMPS PRIMARY: 1.03
  • Three Phase
  • General Purpose
  • Open Dripproof (ODP)
  • NEMA Premium Efficient
  • Rigid Base
