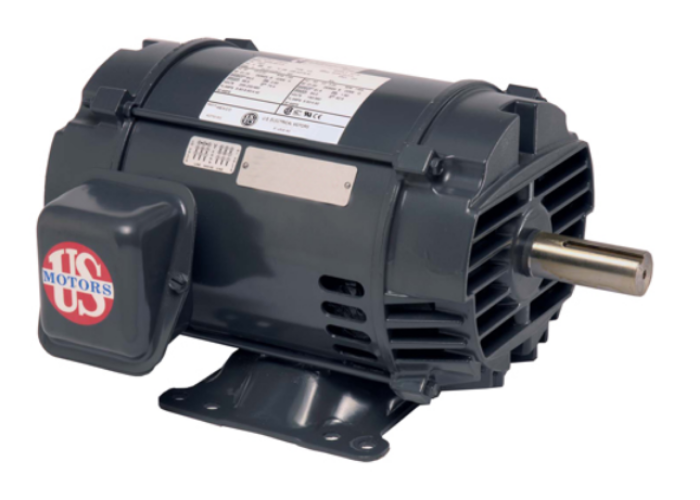

D34P2AH, 3/4Hp, 1725 RPM, 208-230/460V, 3PH, 50/60Hz, ODP, Frame 56H, P063AHC1315015B

D34P2AH, 3/4Hp, 1725 RPM, 208-230/460V, 3PH, 50/60Hz, ODP, Frame 56H, P063AHC1315015B

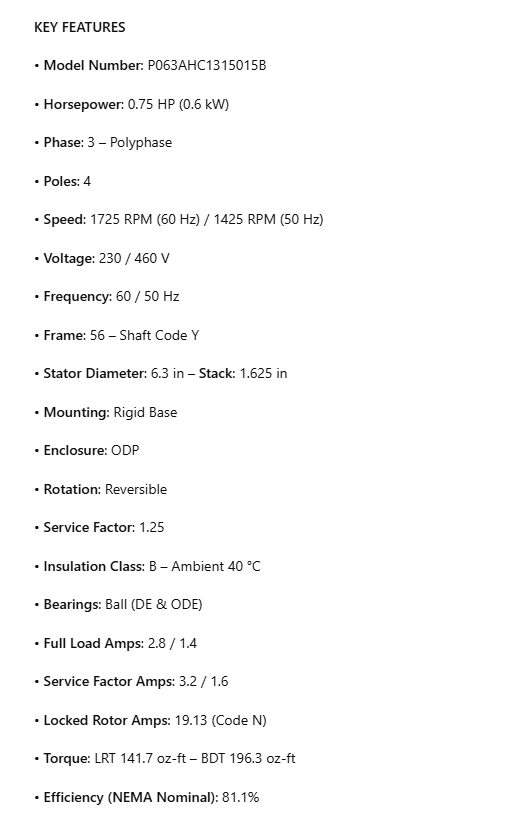

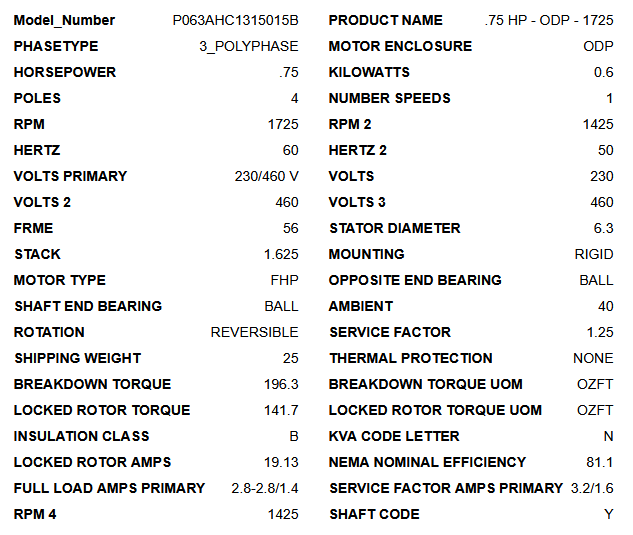

KEY FEATURES

• Model Number: P063AHC1315015B

• Horsepower: 0.75 HP (0.6 kW)

• Phase: 3 – Polyphase

• Poles: 4

• Speed: 1725 RPM (60 Hz) / 1425 RPM (50 Hz)

• Voltage: 230 / 460 V

• Frequency: 60 / 50 Hz

• Frame: 56 – Shaft Code Y

• Stator Diameter: 6.3 in – Stack: 1.625 in

• Mounting: Rigid Base

• Enclosure: ODP

• Rotation: Reversible

• Service Factor: 1.25

• Insulation Class: B – Ambient 40 °C

• Bearings: Ball (DE & ODE)

• Full Load Amps: 2.8 / 1.4

• Service Factor Amps: 3.2 / 1.6

• Locked Rotor Amps: 19.13 (Code N)

• Torque: LRT 141.7 oz-ft – BDT 196.3 oz-ft

• Efficiency (NEMA Nominal): 81.1%
