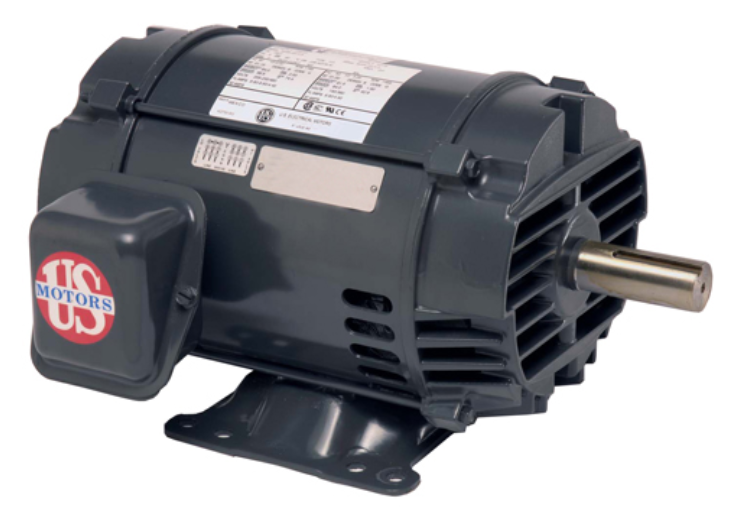

D32P2AH, 1.5Hp 1725 RPM 208-230V/460V,3Ph, 60Hz, ODP 56H 5:1 CT ~ 20:1 VT NEMA Premium IE3 ROLLED STEEL RIGID BASE 1.5SF, P063AJV1362015B

D32P2AH, 1.5Hp 1725 RPM 208-230V/460V,3Ph, 60Hz, ODP 56H 5:1 CT ~ 20:1 VT NEMA Premium IE3 ROLLED STEEL RIGID BASE 1.5SF, P063AJV1362015B

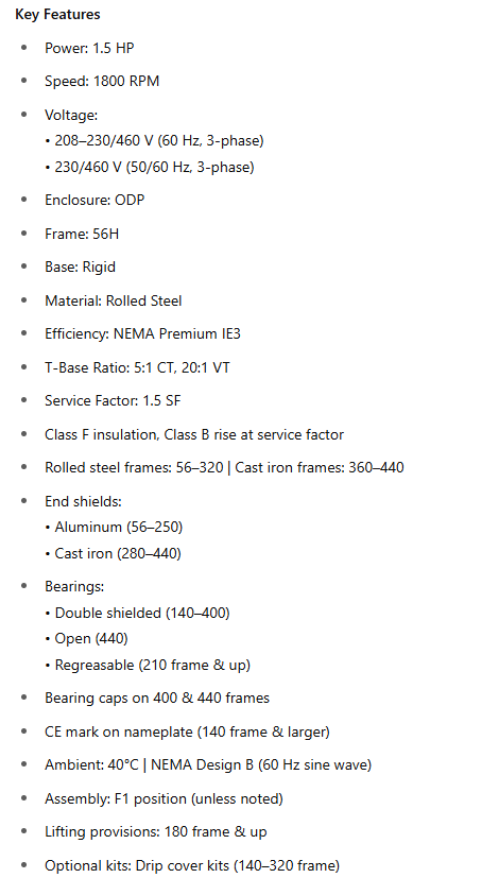

Key Features

• Power: 1.5 HP

• Speed: 1800 RPM

• Voltage:
  • 208–230/460 V (60 Hz, 3-phase)
  • 230/460 V (50/60 Hz, 3-phase)

• Enclosure: ODP

• Frame: 56H

• Base: Rigid

• Material: Rolled Steel

• Efficiency: NEMA Premium IE3

• T-Base Ratio: 5:1 CT, 20:1 VT

• Service Factor: 1.5 SF

• Class F insulation, Class B rise at service factor

• Rolled steel frames: 56–320 | Cast iron frames: 360–440

• End shields:
  • Aluminum (56–250)
  • Cast iron (280–440)

• Bearings:
  • Double shielded (140–400)
  • Open (440)
  • Regreasable (210 frame & up)

• Bearing caps on 400 & 440 frames

• CE mark on nameplate (140 frame & larger)

• Ambient: 40°C | NEMA Design B (60 Hz sine wave)

• Assembly: F1 position (unless noted)

• Lifting provisions: 180 frame & up

• Optional kits: Drip cover kits (140–320 frame)

Replace :

• MLR-154W (MaxMotion – See Product)
• P063FYM0375015B
• D32P2AH
• P063FYJ0372015B
• D32P2AH9
• WEG OF001404W01DOE
• Baldor EM3115
• 35B011M493G1
