US MOTORS | SKU:
EMN-017352

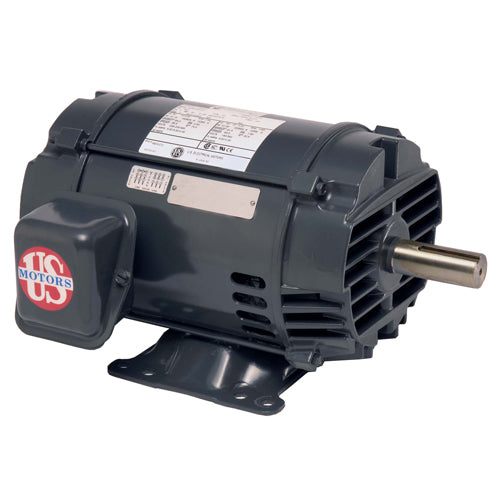

D1P2GH,Us Motors,1Hp,1725 Rpm,575 Volts,3Ph,Fr:56H,ODP,P063FPH1730015B
Regular price
$350.72
Unit price
/
Unavailable
D1P2GH,Us Motors,1Hp,1725 Rpm,575 Volts,3Ph,Fr:56H,ODP,P063FPH1730015B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
D1P2GH,Us Motors,1Hp,1725 Rpm,575 Volts,3Ph,Fr:56H,ODP,P063FPH1730015B
Regular price
$350.72
Unit price
/
Unavailable
Description
Description
D1P2GH,Us Motors,P063FPH1730015B, Replace MaxMotion MKR-104, MKR-104W,
| Model_Number: | P063FPH1730015B |
| PRODUCT NAME: | 1 HP - ODP - 1725 |
| PHASETYPE: | 3_POLYPHASE |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 1 |
| KILOWATTS: | 0.8 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 575 V |
| VOLTS : | 575 |
| FRME : | 56 |
| SHAFT CODE: | H |
| STATOR DIAMETER: | 6.3 |
| STACK: | 2.125 |
| MOUNTING: | RIGID |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | REVERSIBLE |
| SERVICE FACTOR: | 1.15 |
| SHIPPING WEIGHT: | 32 |
| THERMAL PROTECTION: | NONE |
| BREAKDOWN TORQUE: | 204.1 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 141.8 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | K |
| LOCKED ROTOR AMPS: | 8.09 |
| NEMA NOMINAL EFFICIENCY: | 85.5 |
| FULL LOAD AMPS PRIMARY: | 1.1 |
| SERVICE FACTOR AMPS PRIMARY: | 1.2 |
Application
For use in pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.
- Three Phase
- General Purpose
- Open Dripproof (ODP)
- NEMA Premium Efficient
- Rigid Base
