US MOTORS | SKU:
EMN-017349

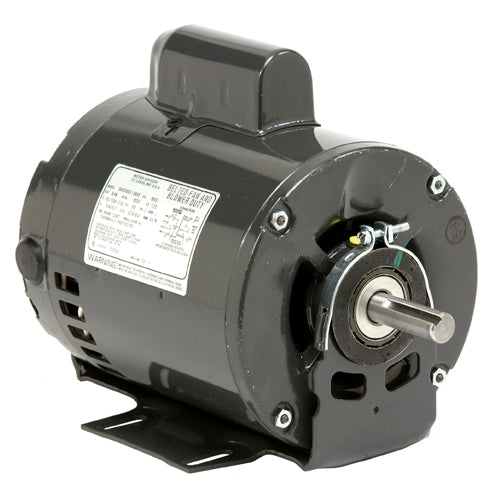

D1CPA2PH9,Us Motors,1Hp,1725 Rpm,115/208-230V,Fr:56H,T063CKP2137012B,
Regular price
$477.17
Unit price
/
Unavailable
D1CPA2PH9,Us Motors,1Hp,1725 Rpm,115/208-230V,Fr:56H,T063CKP2137012B, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
D1CPA2PH9,Us Motors,1Hp,1725 Rpm,115/208-230V,Fr:56H,T063CKP2137012B,
Regular price
$477.17
Unit price
/
Unavailable
Description
Description
D1CPA2PH9,Us Motors,T063CKP2137012B,4688 Marathon,
| Model_Number: | T063CKP2137012B |
| PRODUCT NAME: | 1 HP - ODP - 1725 |
| PHASETYPE: | 1_CAPACITOR START - |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 1 |
| KILOWATTS: | 0.8 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115/230 V |
| VOLTS : | 115 |
| VOLTS 2: | 230 |
| FRME : | 56 |
| SHAFT CODE: | H |
| STATOR DIAMETER: | 6.3 |
| STACK: | 2.75 |
| MOUNTING: | CRADLE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | CW/CCW |
| SERVICE FACTOR: | 1.15 |
| RUNCAPMFD: | 70 |
| RUNCAPVOLTS: | 280 |
| STARTCAPMFD: | 709 |
| SHIPPING WEIGHT: | 31 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 117.7 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 217.4 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | J |
| LOCKED ROTOR AMPS: | 67.56 |
| NEMA NOMINAL EFFICIENCY: | 82.6 |
| FULL LOAD AMPS PRIMARY: | 8.8/4.4 |
| SERVICE FACTOR AMPS PRIMARY: | 9.2/4.6 |
