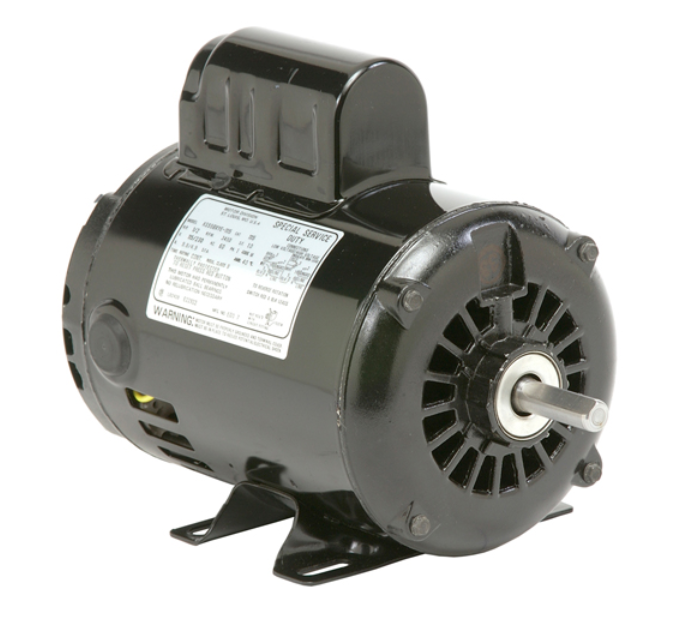

D1CPA2PH, General Purpose Capacitor Start, 1Hp, 1725 RPM, 115/230V, 1PH, 60Hz, Frame 56H, ODP, T063CPA2163012B

D1CPA2PH, General Purpose Capacitor Start, 1Hp, 1725 RPM, 115/230V, 1PH, 60Hz, Frame 56H, ODP, T063CPA2163012B

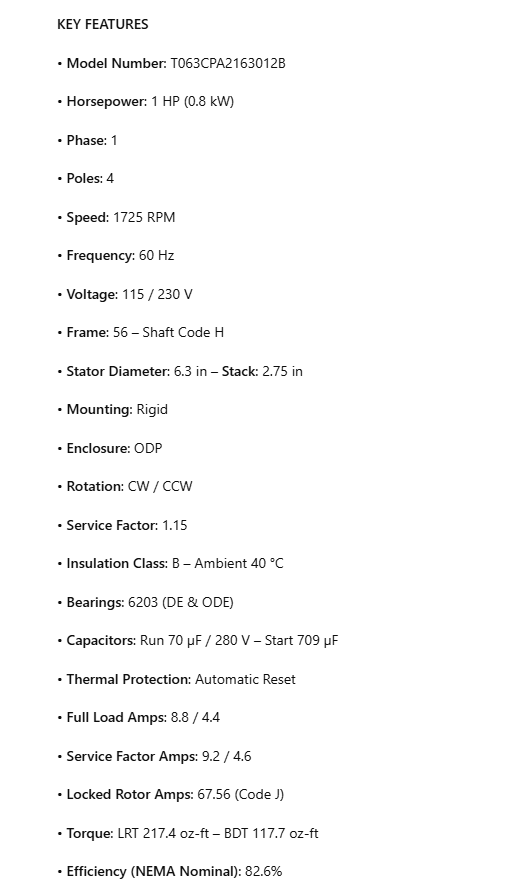

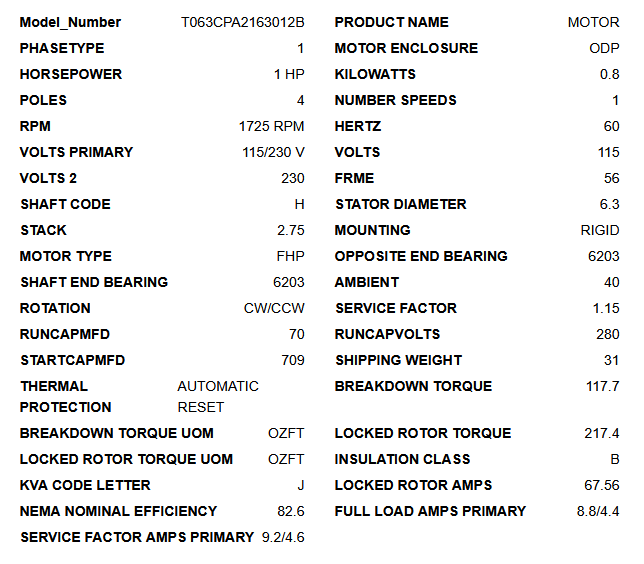

KEY FEATURES

• Model Number: T063CPA2163012B

• Horsepower: 1 HP (0.8 kW)

• Phase: 1

• Poles: 4

• Speed: 1725 RPM

• Frequency: 60 Hz

• Voltage: 115 / 230 V

• Frame: 56 – Shaft Code H

• Stator Diameter: 6.3 in – Stack: 2.75 in

• Mounting: Rigid

• Enclosure: ODP

• Rotation: CW / CCW

• Service Factor: 1.15

• Insulation Class: B – Ambient 40 °C

• Bearings: 6203 (DE & ODE)

• Capacitors: Run 70 µF / 280 V – Start 709 µF

• Thermal Protection: Automatic Reset

• Full Load Amps: 8.8 / 4.4

• Service Factor Amps: 9.2 / 4.6

• Locked Rotor Amps: 67.56 (Code J)

• Torque: LRT 217.4 oz-ft – BDT 117.7 oz-ft

• Efficiency (NEMA Nominal): 82.6%
