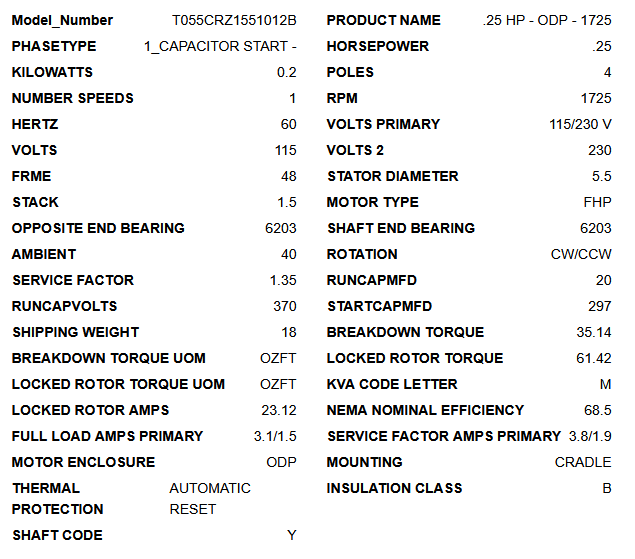

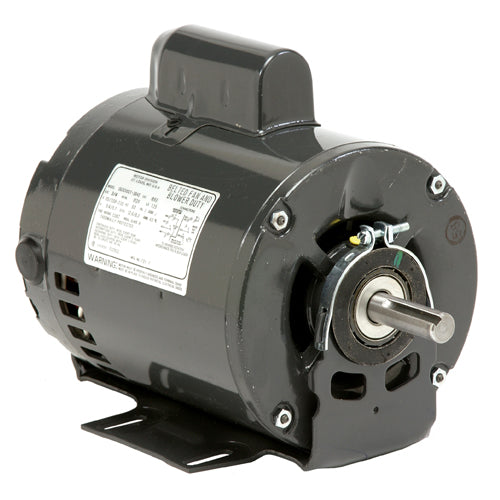

D14CPA2P49, 1/4Hp, 1725 RPM, 115/208-230V, 1Ph, 60Hz, ODP, Frame 48, T055CRZ1551012B

D14CPA2P49, 1/4Hp, 1725 RPM, 115/208-230V, 1Ph, 60Hz, ODP, Frame 48, T055CRZ1551012B

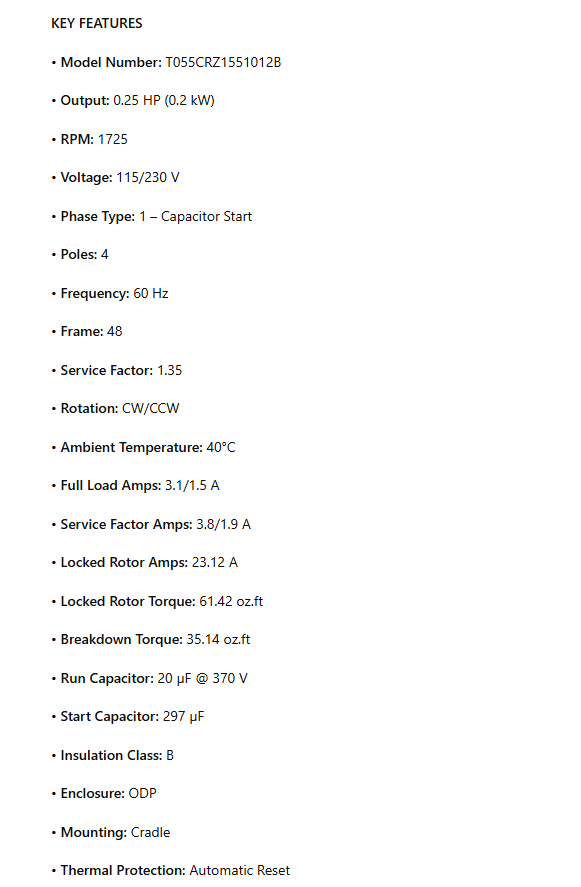

KEY FEATURES

• Model Number: T055CRZ1551012B

• Output: 0.25 HP (0.2 kW)

• RPM: 1725

• Voltage: 115/230 V

• Phase Type: 1 – Capacitor Start

• Poles: 4

• Frequency: 60 Hz

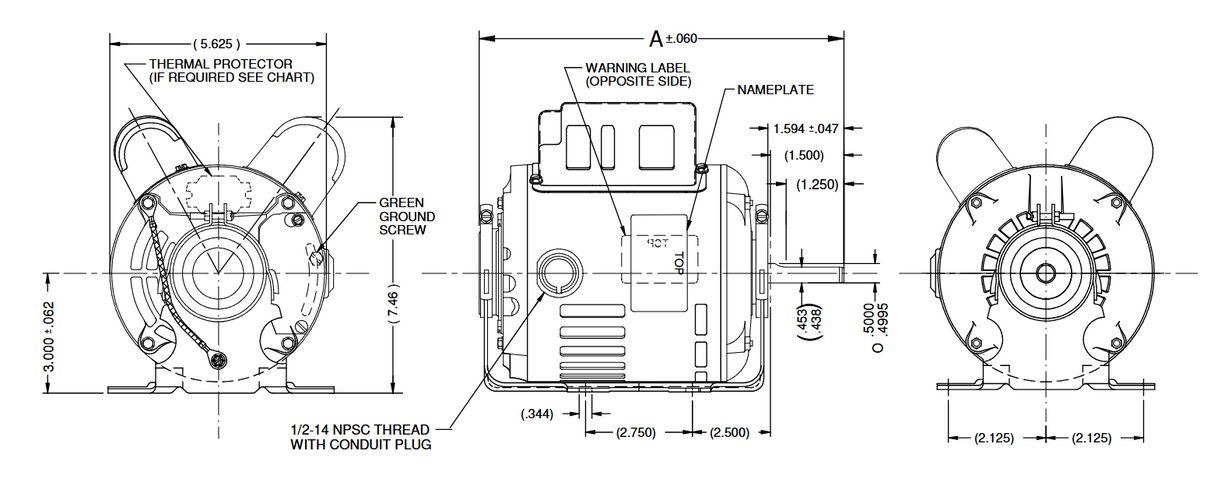

• Frame: 48

• Service Factor: 1.35

• Rotation: CW/CCW

• Ambient Temperature: 40°C

• Full Load Amps: 3.1/1.5 A

• Service Factor Amps: 3.8/1.9 A

• Locked Rotor Amps: 23.12 A

• Locked Rotor Torque: 61.42 oz.ft

• Breakdown Torque: 35.14 oz.ft

• Run Capacitor: 20 µF @ 370 V

• Start Capacitor: 297 µF

• Insulation Class: B

• Enclosure: ODP

• Mounting: Cradle

• Thermal Protection: Automatic Reset
