US MOTORS  |  SKU: EMN-018188

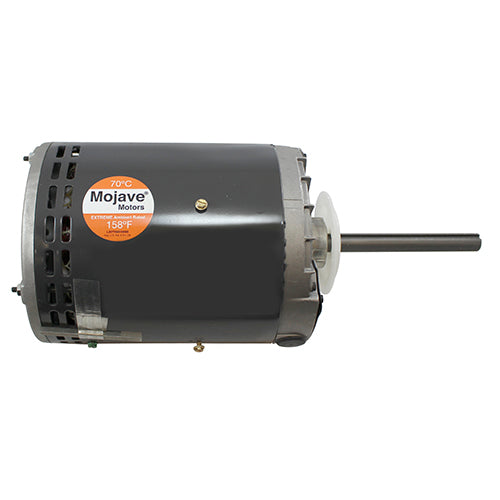

1819H,Us Motors, 1-1/2Hp, 1140 Rpm, 208-230/460V,Fr:56Z,OAO,Condenser,

$789.96
shipping

Estimate shipping

Description

1819H, Us Motors, P063ELR5029015B, Us motors, replaced H767V1, Century,

Specification Details
Phase Type 3_POLYPHASE
Motor Enclosure OAO (Open Air Over)
Horsepower 1.5 HP
Kilowatts 1.1 kW
Poles 6
Number of Speeds 1
RPM 1140
Hertz 60
Volts Primary 208-230/460 V
Volts 208 V
Volts 2 230 V
Volts 3 460 V
Frame 56
Shaft Code Z
Stator Diameter 6.3 in
Stack 3.47 in
Mounting Belly Band
Motor Type FHP
Opposite End Bearing 6203
Shaft End Bearing 6203
Ambient Temperature 70 °C
Rotation Reversible
Shipping Weight 35 lbs
Thermal Protection Automatic Reset
Breakdown Torque 356.7 oz-ft
Locked Rotor Torque 235.6 oz-ft
Insulation Class F
KVA Code Letter L
Locked Rotor Amps 24.4 A
Full Load Amps Primary 5.4/2.7 A
