FASCO  |  SKU: EMN-017299

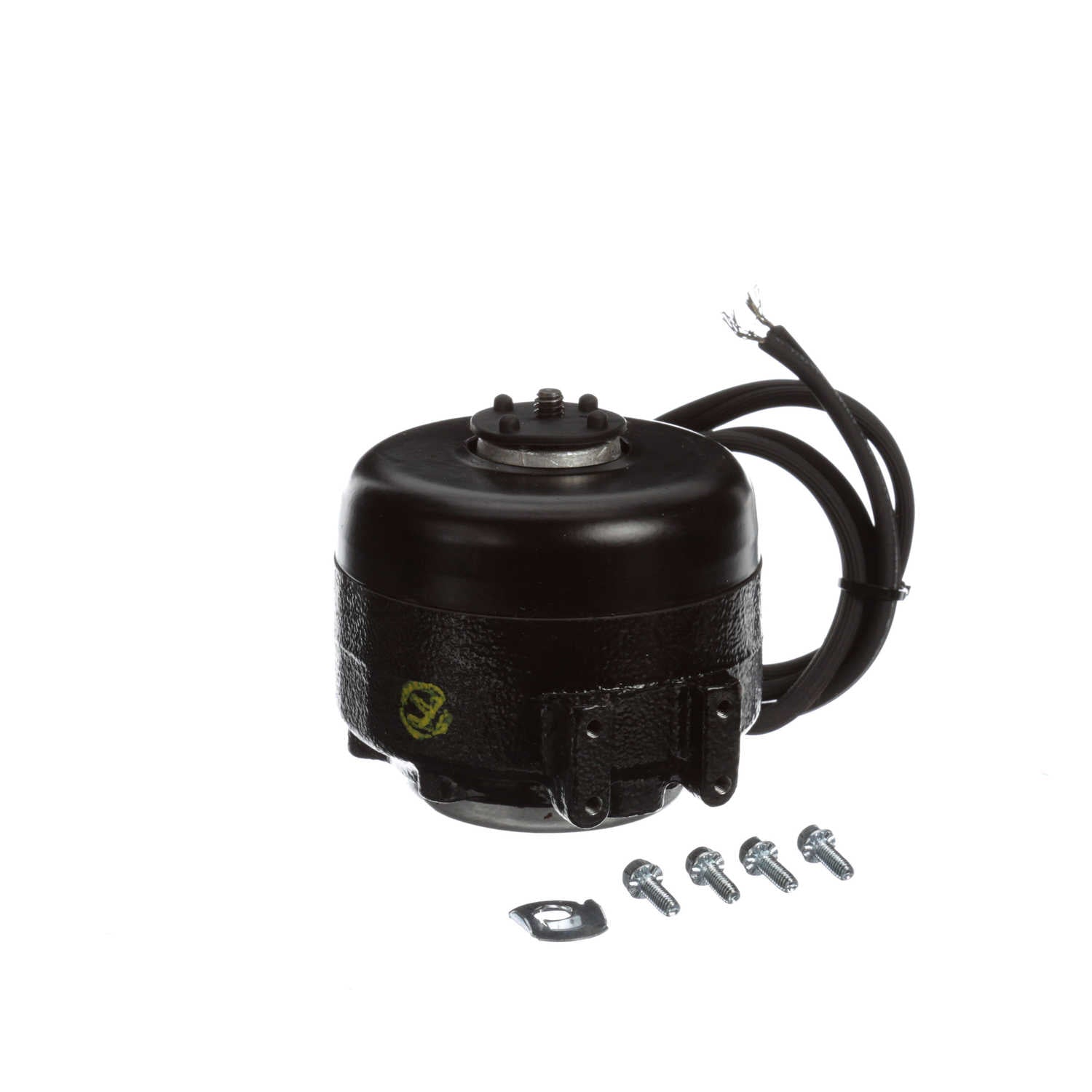

UB597, Fasco, 9W, 1550 Rpm, 115 Volts, Cw, 15411, Mars, Unit Bearing,

$111.83
shipping

Estimate shipping

Description

UB597, Fasco, Replace 15411, Mars, 5411, Unit Bearing,

Nameplate Specifications

Phase: 1 Output Watts: 9 W
Voltage: 115 V Speed: 1550 rpm
Service Factor: 1 Frame: UNIT BEARING
Enclosure: Totally Enclosed Air Over Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 0.53 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Opposite Shaft End
Mounting: 2 BOSS/OSE 3 HOLES Drive End Bearing: Unit
Opp Drive End Bearing: Unit Frame Material: Cast Iron
Shaft Type: Threaded Frame Length: 3.12 in
Shaft Diameter: 1/4x20 in Shaft Extension: .415 in

General Specifications

UPC: 786674070197 Weight: 3.14 LB
Packaged Length: 3.75 IN Packaged Width: 4.25 IN
Packaged Height: 4.25 IN Country of Origin: China



  • Refrigeration Motor
  • Unit Bearing
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Bearing - Unit
  • 1/4 x 20 Threaded Shaft
  • 28"  Leads with .05" Strip
  • 2 Mounting Feet, 3 Rear Mounting Holes
