RD00545, 5Hp, 1800 RPM, 575V, 3PH,60Hz, Frame 184T, ODP, DTP00545

RD00545, 5Hp, 1800 RPM, 575V, 3PH,60Hz, Frame 184T, ODP, DTP00545

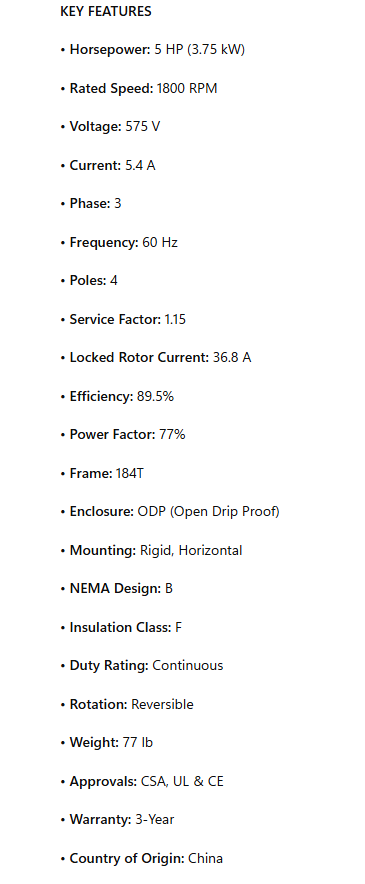

KEY FEATURES

• Horsepower: 5 HP (3.75 kW)

• Rated Speed: 1800 RPM

• Voltage: 575 V

• Current: 5.4 A

• Phase: 3

• Frequency: 60 Hz

• Poles: 4

• Service Factor: 1.15

• Locked Rotor Current: 36.8 A

• Efficiency: 89.5%

• Power Factor: 77%

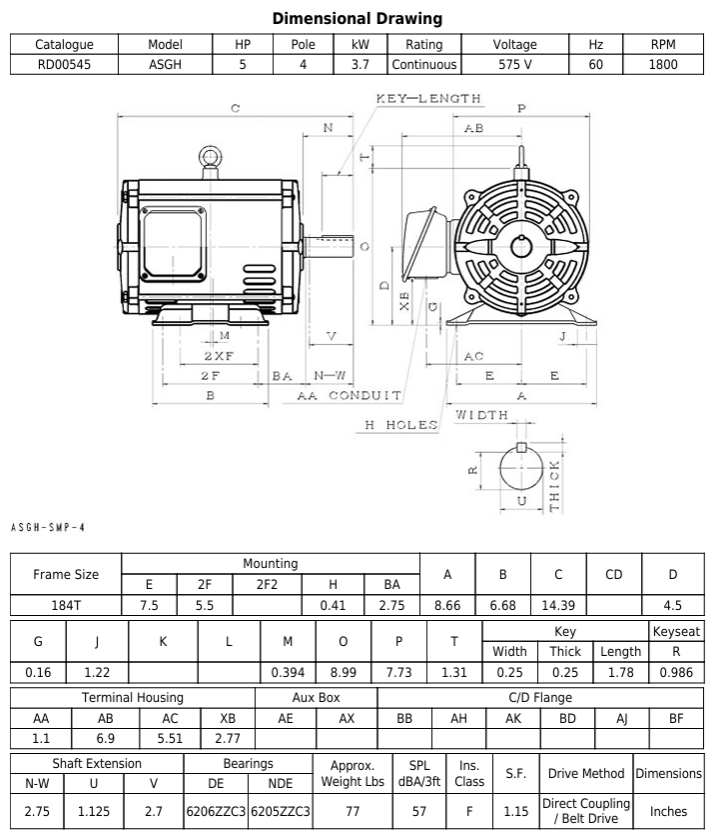

• Frame: 184T

• Enclosure: ODP (Open Drip Proof)

• Mounting: Rigid, Horizontal

• NEMA Design: B

• Insulation Class: F

• Duty Rating: Continuous

• Rotation: Reversible

• Weight: 77 lb

• Approvals: CSA, UL & CE

• Warranty: 3-Year

• Country of Origin: China
