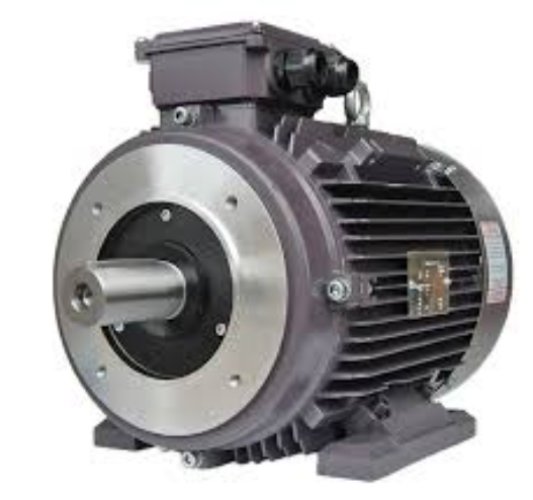

MSPH63A4C-B34,0.25Hp (0.18 Kw), 1725 Rpm, 115/230V, 1 Phases, Frame: 63, Tefc, B3,C-Flange , B34 face mounting

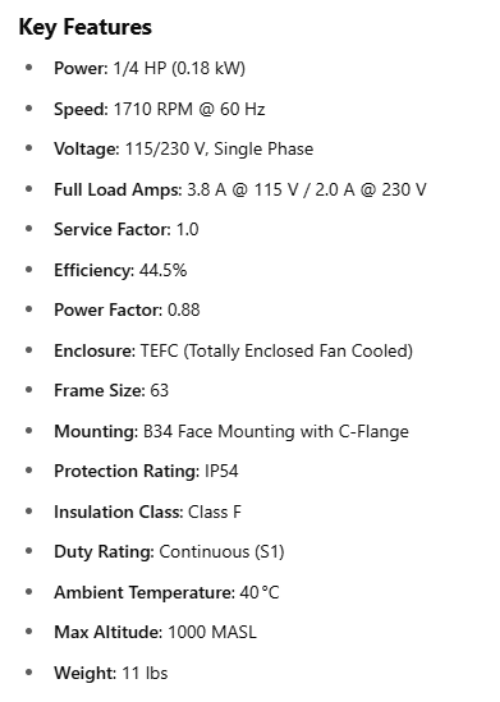

Key Features

• Power: 1/4 HP (0.18 kW)

• Speed: 1710 RPM @ 60 Hz

• Voltage: 115/230 V, Single Phase

• Full Load Amps: 3.8 A @ 115 V / 2.0 A @ 230 V

• Service Factor: 1.0

• Efficiency: 44.5%

• Power Factor: 0.88

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Frame Size: 63

• Mounting: B34 Face Mounting with C-Flange

• Protection Rating: IP54

• Insulation Class: Class F

• Duty Rating: Continuous (S1)

• Ambient Temperature: 40 °C

• Max Altitude: 1000 MASL

• Weight: 11 lbs

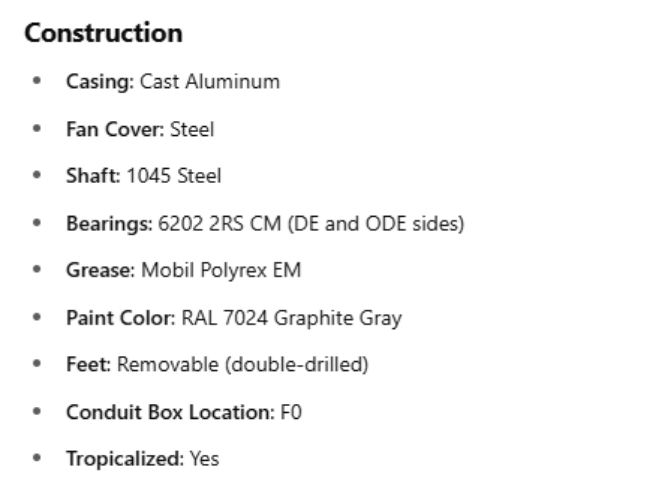

Construction

• Casing: Cast Aluminum

• Fan Cover: Steel

• Shaft: 1045 Steel

• Bearings: 6202 2RS CM (DE and ODE sides)

• Grease: Mobil Polyrex EM

• Paint Color: RAL 7024 Graphite Gray

• Feet: Removable (double-drilled)

• Conduit Box Location: F0

• Tropicalized: Yes
