TECHTOP  |  SKU: EMN-017103

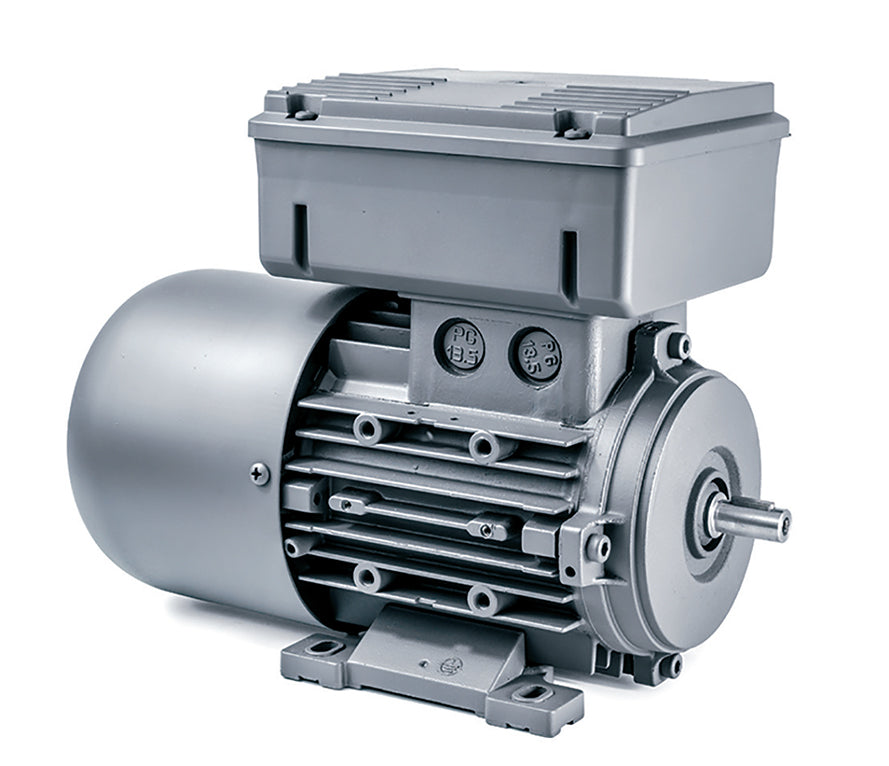

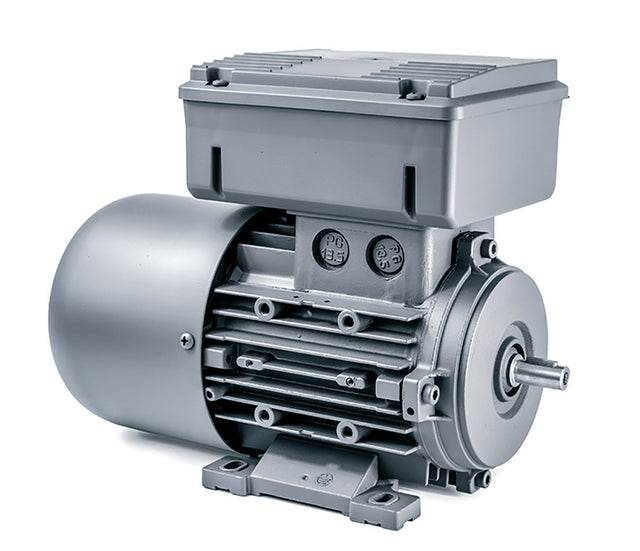

MSPH63A4C,0.25Hp (0.18 Kw), 1725 Rpm, 115/230V, 1 Phases, Frame: 63, Tefc, B3,

$699.76
shipping

Estimate shipping

Description

MSPH63A4C,0.25Hp (0.18 Kw), 1725 Rpm, 115/230V, 1 Phases, Frame: 63, Tefc, B3,

  • 0.18 Kw
  • 0.25 Hp
  • 1800 Rpm
  • 115/230 Volts
  • Frame 63
  • 3.8/2 Amps
  • IEC
  • Mounting B3
  • Enclosure Totally Enclosed Fan cooled
STANDARD FEATURES
  • Removable feet F1, F2, F0 field convertible (standard F0)
  • 1.0 Service Factor 60Hz operation
  • 18 Month warranty
  • Conduit Box is 90º rotatable
  • Cast aluminum construction with cast aluminum B5/B14 and increase/reduction flange kits available
  • Compact lightweight design
  • 1045 Steel shaft
  • Surface finish:
    • Alkyd enamel RAL7024 - Graphite Gray
  • Corrosion resistant hardware
  • Cable gland fixed to connection box
  • Reliable mechanical centrifugal switch design
OPERATING PARAMETERS
  • Continuous (S1) duty
  • Ambient temperatures up to 40ºC
  • Installation up to 1000 MASL (3300 ft.)

INGRESS PROTECTION

The standard degree of enclosure protection is IP54 (Weather Proof). Both drive end and non-drive end are fitted with v-seals. Conduit box lid and body is sealed with a fitted rubber gasket.


INSULATION RATING
  • Class F insulation
  • Designed to Class B temperature rise
