TECHTOP | SKU:
EMN-018172

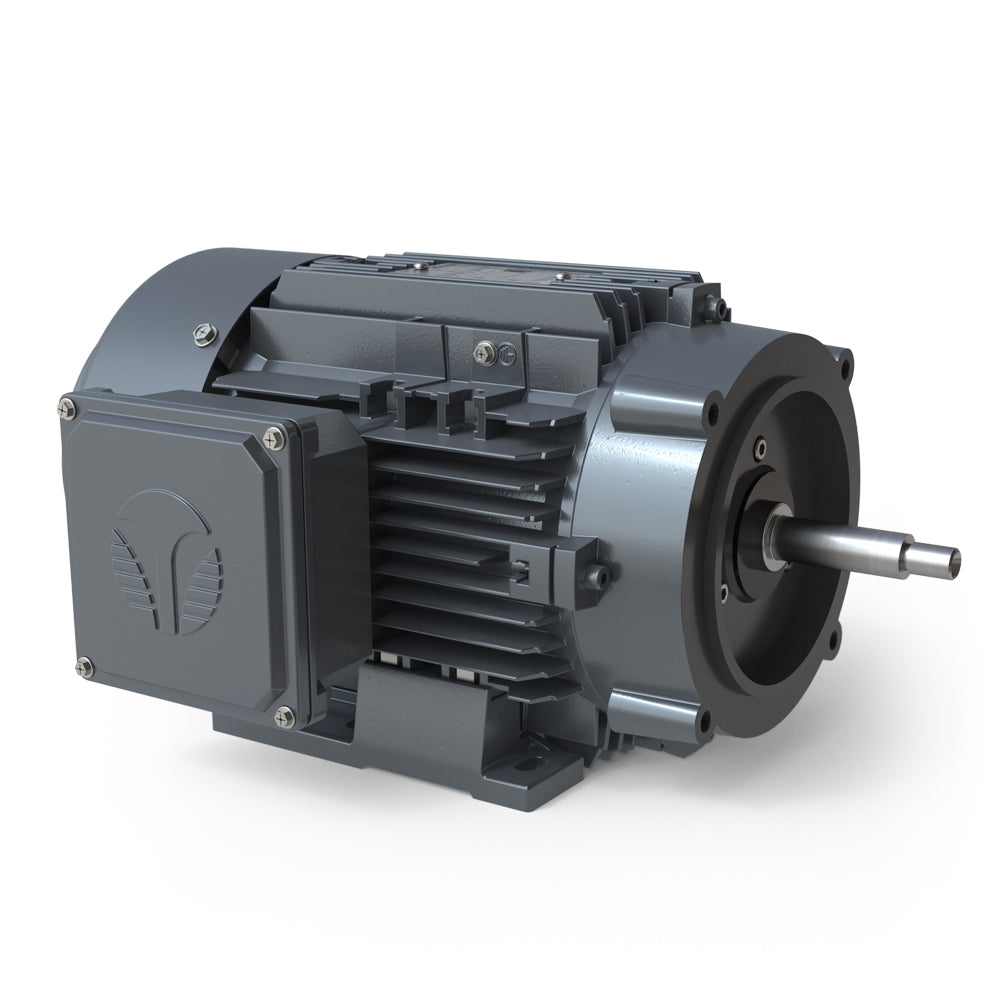

JEP0032FP, Techtop, 3Hp, 3490 Rpm, 575 Volts, 60Hz, Frame 56HJ, Tefc,
Regular price
$654.08
Unit price
/
Unavailable
JEP0032FP, Techtop, 3Hp, 3490 Rpm, 575 Volts, 60Hz, Frame 56HJ, Tefc, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
JEP0032FP, Techtop, 3Hp, 3490 Rpm, 575 Volts, 60Hz, Frame 56HJ, Tefc,
Regular price
$654.08
Unit price
/
Unavailable
Description
Description
Model JEP0032FP, Techtop, replaced, Maxmotion, MPR-302J, MPRP-302J, MPRP-302JH,

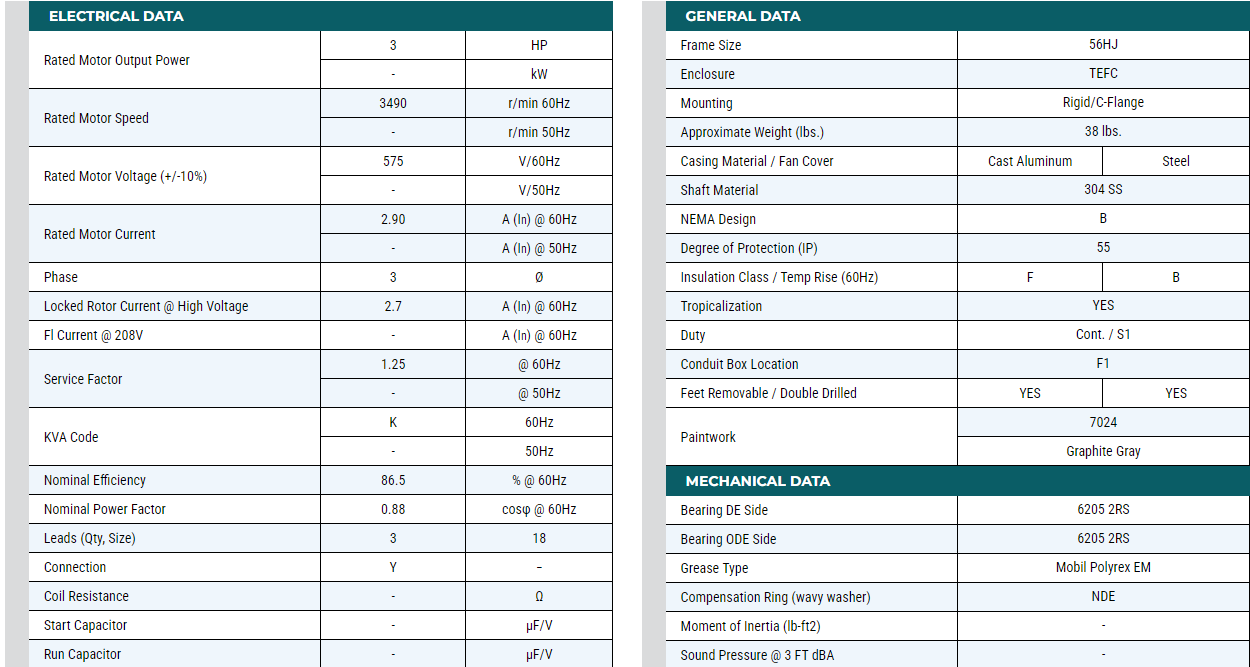

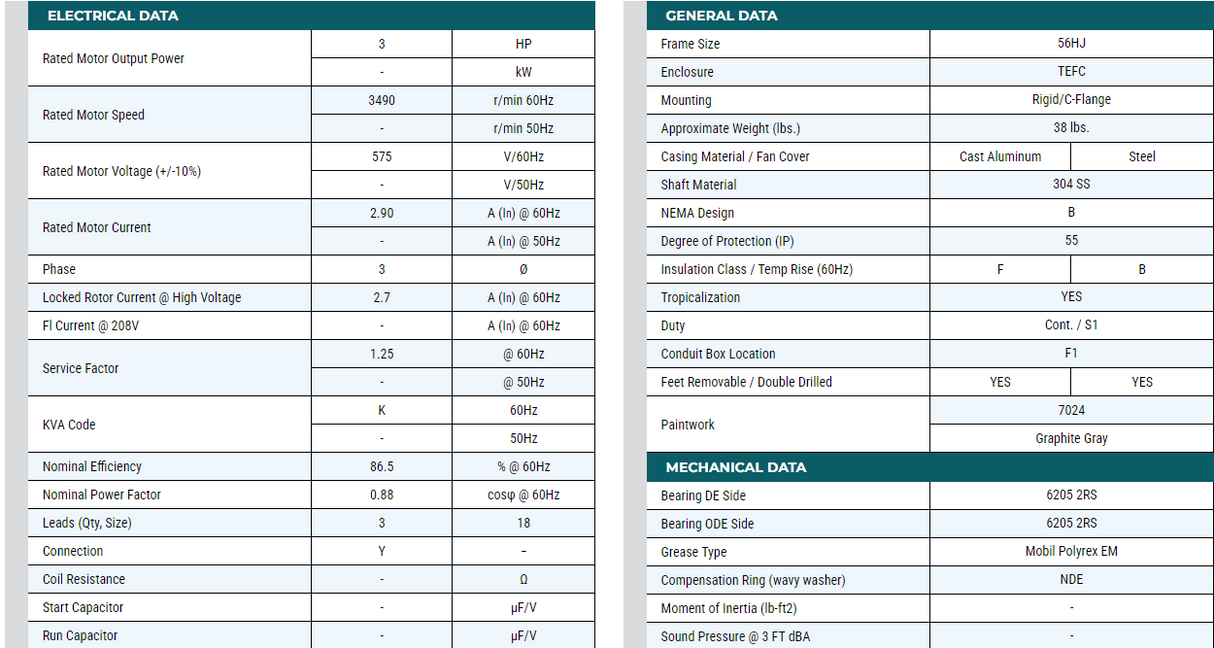

Specifications

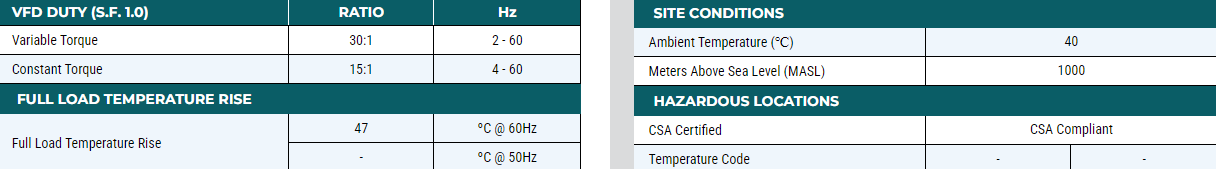

| ELECTRICAL DATA | VFD DUTY (S.F. 1.0) |
| Rated Motor Output Power | RATIO |
| 3 | Hz |
| HP | Variable Torque |
| - | 30:1 |
| kW | 2 - 60 |
| Rated Motor Speed | Constant Torque |
| 3490 | 15:1 |
| r/min 60Hz | 4 - 60 |
| - | FULL LOAD TEMPERATURE RISE |
| r/min 50Hz | Full Load Temperature Rise |
| Rated Motor Voltage (+/-10%) | 47 |
| 575 | ºC @ 60Hz |
| V/60Hz | - |
| - | ºC @ 50Hz |
| V/50Hz | GENERAL DATA |
| Rated Motor Current | Frame Size |
| 2.9 | 56HJ |
| A (In) @ 60Hz | Enclosure |
| - | TEFC |
| A (In) @ 50Hz | Mounting |
| Phase | Rigid/C-Flange |
| 3 | Approximate Weight (lbs.) |
| Ø | 38 lbs. |
| Locked Rotor Current @ High Voltage | Casing Material / Fan Cover |
| 2.7 | Cast Aluminum |
| A (In) @ 60Hz | Steel |
| Fl Current @ 208V | Shaft Material |
| - | 304 SS |
| A (In) @ 60Hz | NEMA Design |
| Service Factor | B |
| 1.25 | Degree of Protection (IP) |
| @ 60Hz | 55 |
| - | Insulation Class / Temp Rise (60Hz) |
| @ 50Hz | F |
| KVA Code | B |
| K | Tropicalization |
| 60Hz | YES |
| - | Duty |
| 50Hz | Cont. / S1 |
| Nominal Efficiency | Conduit Box Location |
| 86.5 | F1 |
| % @ 60Hz | Feet Removable / Double Drilled |
| Nominal Power Factor | YES |
| 0.88 | YES |
| cosφ @ 60Hz | Paintwork |
| Leads (Qty, Size) | 7024 |
| 3 | Graphite Gray |
| 18 | MECHANICAL DATA |
| Connection | Bearing DE Side |
| Y | 6205 2RS |
| − | Bearing ODE Side |
| Coil Resistance | 6205 2RS |
| - | Grease Type |
| Ω | Mobil Polyrex EM |
| Start Capacitor | Compensation Ring (wavy washer) |
| - | NDE |
| μF/V | Moment of Inertia (lb-ft2) |
| Run Capacitor | - |
| - | Sound Pressure @ 3 FT dBA |
| μF/V | - |
| SITE CONDITIONS | HAZARDOUS LOCATIONS |
| Ambient Temperature (℃) | CSA Certified |
| 40 | CSA Compliant |
| Meters Above Sea Level (MASL) | Temperature Code |
| 1000 |
