TECHTOP | SKU:
EMN-016616

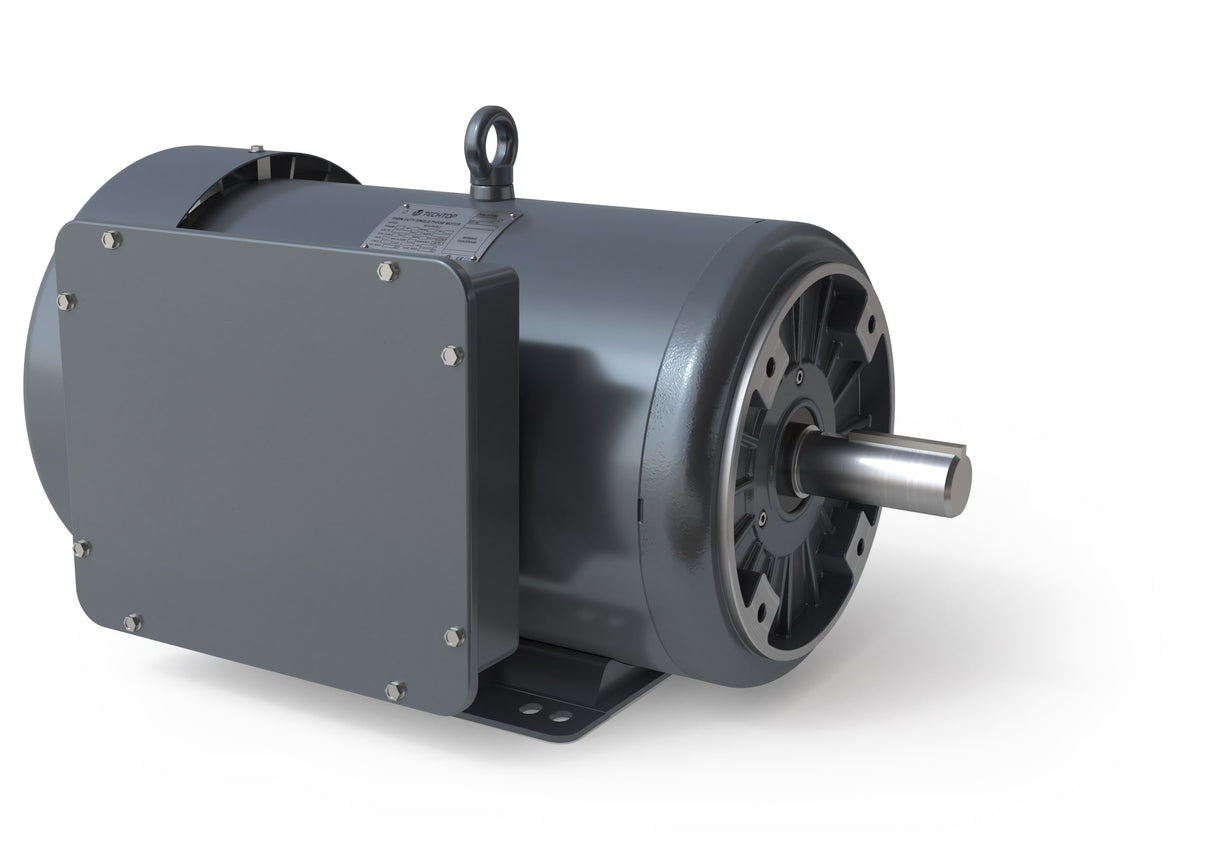

FDR0074B-TC-01, Techtop, 7.5 Hp, 1800 RPM, 230V, 1PH, 213TCZ, TEFC, Z115
Regular price
$1,672.63
Unit price
/
Unavailable
FDR0074B-TC-01, Techtop, 7.5 Hp, 1800 RPM, 230V, 1PH, 213TCZ, TEFC, Z115 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
FDR0074B-TC-01, Techtop, 7.5 Hp, 1800 RPM, 230V, 1PH, 213TCZ, TEFC...
Regular price
$1,672.63
Unit price
/
Unavailable
Description
Description
FDR0074B-TC-01, TECHTOP,
Sleeve 1-1/8 to 1-3/8 included fit for Marathon Z115, Z115 OLD, 215TBFW7028,
ELECTRICAL DATA
Rated Motor Output Power
- 7.5HP
- Rated Motor Speed
- 1740r/min 60Hz
- Rated Motor Voltage (+/-10%)
- Frame 213TCZ ( shaft 1-1/8''+adapter to 1-3/8'' included)
- 208-230V/60Hz
- Rated Motor Current
- 34.3-31.0A (In) @ 60Hz
- Locked Rotor Current @ High Voltage
- 218.3973A (In) @ 60Hz
- Fl Current @ 208V
- 34.3A (In) @ 60Hz
- Service Factor 1.15@ 60Hz
- @ 50Hz KVA Code
- 60Hz
- Nominal Efficiency 82 % @ 60Hz
- Nominal Power Factor 0.94 cosφ @ 60Hz
- Leads (Qty, Size) 5
- 10 AWG Connection
- Coil Resistance Ω
- Start Capacitor
- 400×2/350μF/V
- Run Capacitor 40×2/450 μF/V
