TECHTOP  |  SKU: EMN-016656

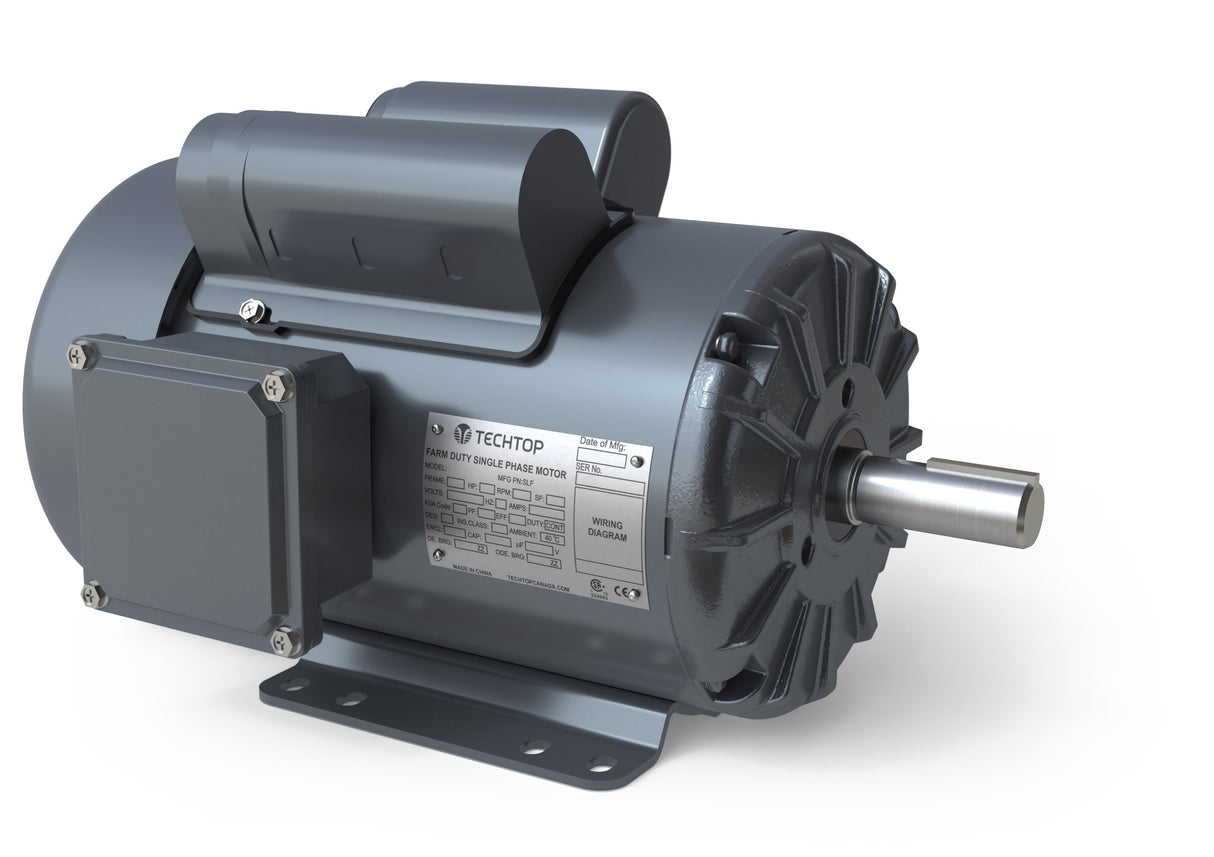

FDR0022C-T-01, Techtop, 2 Hp. 3460 Rpm, 115/208-230V, Frame 56C, Tefc

$596.45
shipping

Estimate shipping

Description

FDR0022C-T-01, Techtop, Replace Omnidrive FD146C, Marathon C466, 5KCR49TN2155T, Baldor CL3515. Spec 35T946-0506,

ELECTRICAL DATA
  • Rated Motor Output Power
  • 2 HP
  • 115/208-230 V/60Hz
  • Frame 56C
  • Enclosure TEFC
  • Rated Motor Speed 3460 r/min 60Hz
  • 2850 Rpm V/50Hz
  • Rated Motor Current 18.2/10.0-9.1 A (In) @ 60Hz
  • Phase 1
  • Locked Rotor Current @ High Voltage 61.0194A (In) @ 60Hz
  • Fl Current @ 208V 10 A (In) @ 60Hz
  • Service Factor 1.15
  • @ 60Hz
  • @ 50Hz
  • 60Hz
  • 50Hz
  • Nominal Efficiency 77
  • % @ 60Hz Nominal Power Factor
  • 0.93 cosφ @ 60Hz
  • Start Capacitor 500/165 μF/V
  • Run Capacitor 115/250 μF/V
  • VFD DUTY (S.F. 1.0)
  • Variable Torque
  • Constant Torque
